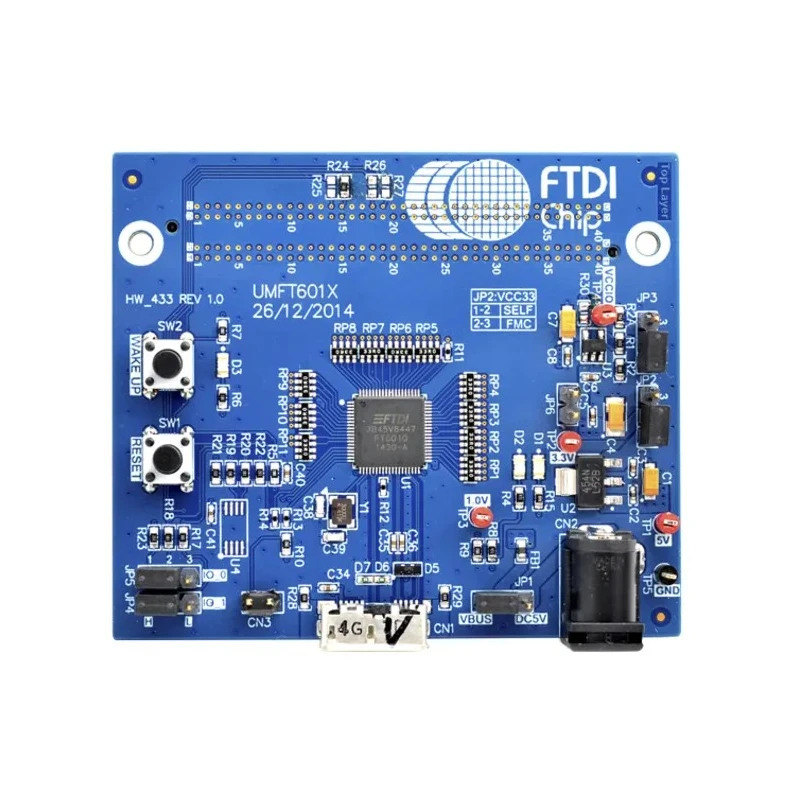

FTDI Chip Bridge Evaluation Board, 100 MHz, USB Interface, for FT60x, Evaluation Kit UMFT601X-B

Free Delivery in India | Lowest Global Shipping Charges

FTDI Chip Bridge Evaluation Board, 100 MHz, USB Interface, for FT60x, Evaluation Kit UMFT601X-B

Name: FTDI Chip Bridge Evaluation Board, 100 MHz, USB Interface, for FT60x, Evaluation Kit UMFT601X-B
Brand: FTDI Chip
SKU: 80889



Category Communication & Wireless Development Tools Brand FTDI Chip Condition New

Specifications

Country of Origin	India
Brand	FTDI Chip
Model	UMFT601X-B
Interfaces	USB3
Compliance	RoHS
Interface Type	USB
For Use With	FT60x
Standards/Approvals	RoHS
Maximum Frequency	100MHz
Kit Classification	Evaluation Kit
Kit Name	Bridge Evaluation Board
Driver Support	D3xx driver

Key Features

Designed for evaluation and development with FT600/FT601 USB 3.0 SuperSpeed ICs.
Supports USB 3.0 SuperSpeed for high-throughput data transfer operations.
Features 4 IN channels and 4 OUT channels with FIFO bus connectivity.
Daughter card form factor, requires use with a FIFO Master board with an FMC or HSMC connector.
Kit includes a bridge evaluation board specifically for FT60x applications.
Operates at maximum frequency of 100 MHz for demanding development scenarios.
RoHS compliant for safe integration in development environments.

Product Description

The FTDI Chip UMFT601X-B Bridge Evaluation Board is a dedicated evaluation kit designed for use with FT60x series USB 3.0 SuperSpeed interface ICs. This development module allows designers to explore and test the performance and features of FTDI's FT600/FT601 chips, supporting applications that require high data transfer rates and robust USB connectivity.

This evaluation board incorporates support for a FIFO (First In, First Out) bus, allowing users to bridge and evaluate high-throughput communication between a FIFO master device and a USB 3.0 host. As a daughter card, the UMFT601X-B must be paired with a compatible FIFO Master board that provides either an FMC (FPGA Mezzanine Card) or HSMC (High-Speed Mezzanine Card) connector for seamless hardware interfacing.

The board contains four IN and four OUT channels on its FIFO bus, making it ideal for use in high-speed, high-volume data transfer environments such as data logging and imaging. Applications range across industrial, laboratory, commercial prototyping, and engineering development, especially where reliable USB 3.0 SuperSpeed data bridging is required.

Its UVC (USB Video Class) device functionality further extends support for imaging use cases.

The hardware is RoHS compliant, ensuring it meets essential environmental and safety standards necessary for modern electronic development labs and manufacturing settings. It operates reliably at a maximum frequency of 100 MHz, delivering robust performance for demanding electronic and embedded system testing.

Typical use cases include fast prototyping of USB 3.0 devices, evaluating transfer speeds and connectivity of FT600/FT601 chipsets, industrial machine data acquisition, and advanced imaging or bulk data processing systems.

The kit includes the UMFT601X-B evaluation board, ready for integration into test and development environments alongside a compatible master board. This product is best suited for engineers, developers, and technical teams seeking rapid evaluation and development of next-generation USB 3.0 SuperSpeed devices.
