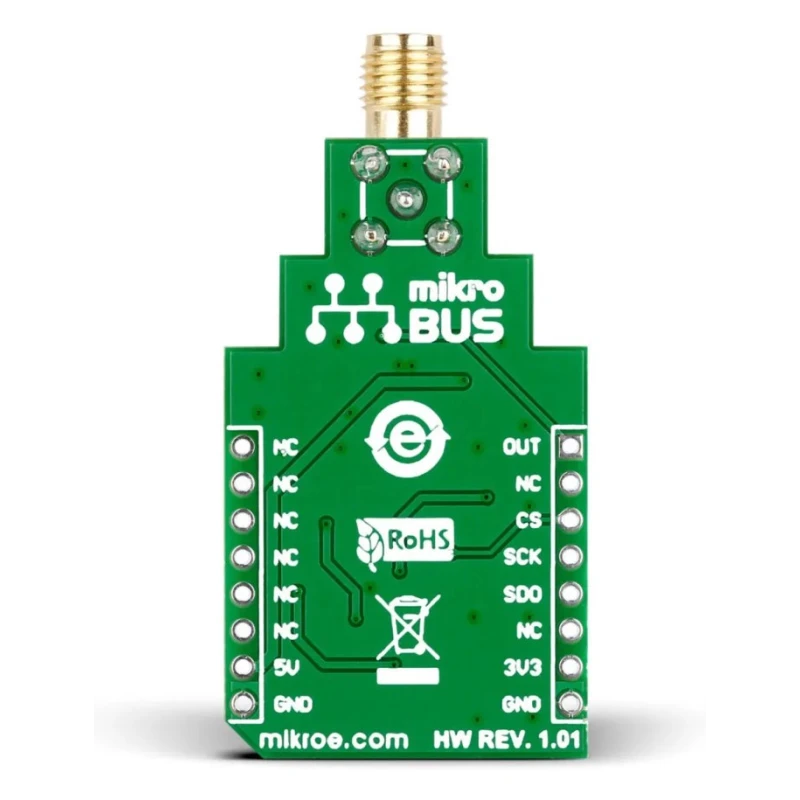

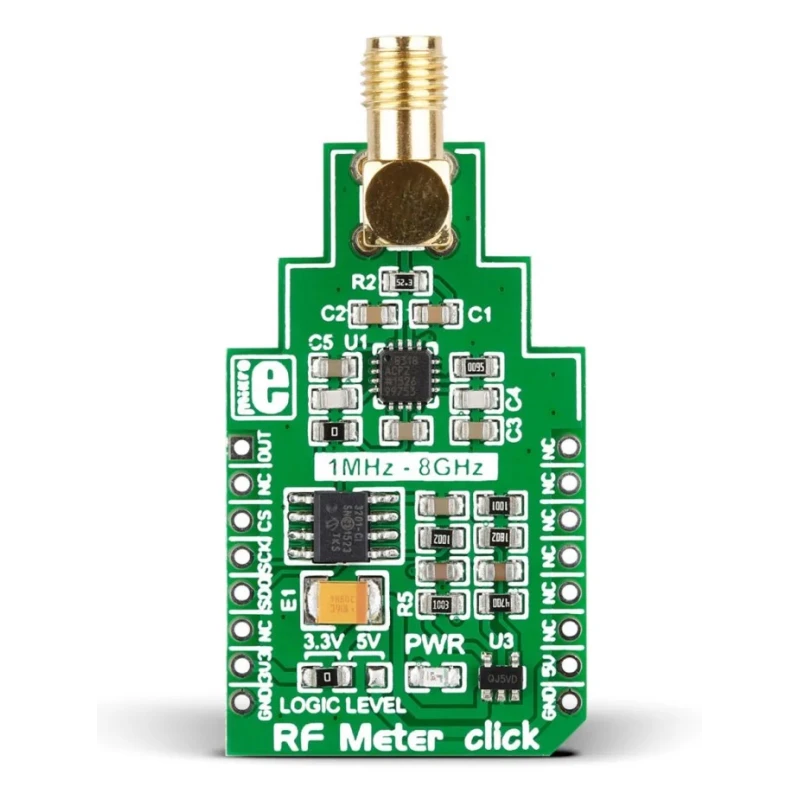

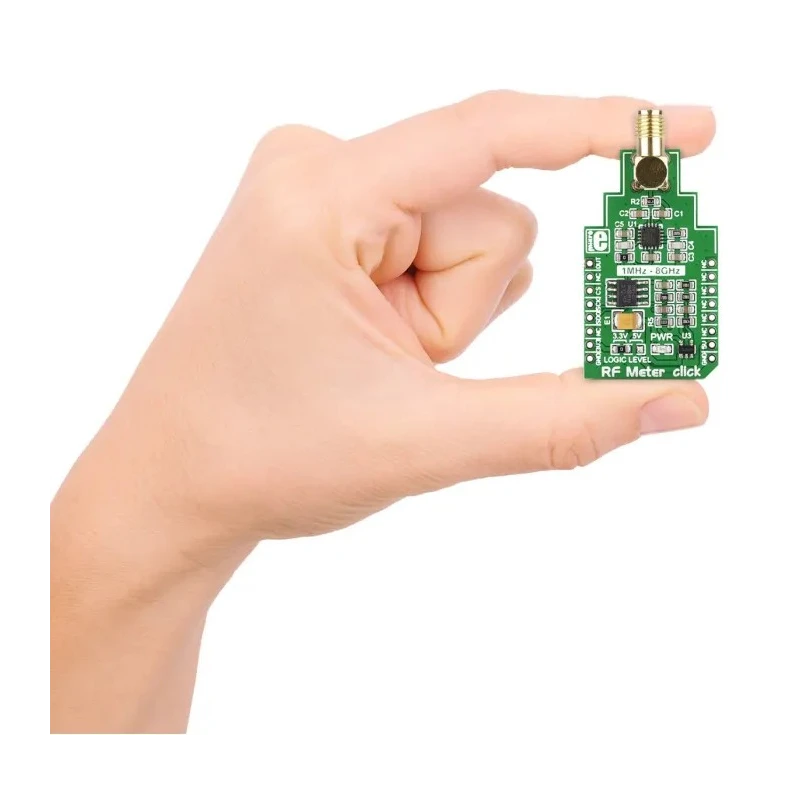

MikroElektronika RF Power Measurement MikroBus Click Board MCP3201 SPI Interface 8GHz MIKROE-2034
Specifications
| Country of Origin | India |
|---|---|
| Brand | MikroElektronika |
| Model | MIKROE-2034 |
| Interface Type | SPI |
| For Use With | MCP3201, AD8318 |
| Standards/Approvals | RoHS |
| Maximum Frequency | 8GHz |
| Kit Classification | MikroBus Click Board |
| Featured Device | MCP3201 |
| Kit Name | RF Meter Click |
| RF Technology | RF Power Measurement |
Key Features
- Designed for MCP3201 and AD8318 devices ensuring compatibility and performance.
- Measures RF power over a 60dB range covering frequencies up to 8GHz.
- Equipped with AD8318 logarithmic detector delivering ±1.0dB accuracy over 55dB range below 5.8GHz.
- Features a serial SPI interface for seamless integration with MikroElektronika development boards.
- Includes SMA connector for 50Ω sensing antenna and LED power indicator for operational status.
- Powered by 5V DC supply suitable for embedded applications.
- Comes with the mikroBUS™ pinout standard socket compatibility for modular extensions.
- RoHS compliant ensuring adherence to environmental standards.
Product Description
MikroElektronika MIKROE-2034 RF Power Measurement MikroBus Click Board is a high-precision communication and wireless development tool designed for RF signal power measurement applications.
Supporting devices such as MCP3201 and AD8318, this Click board operates over a broad frequency range of 1MHz to 8GHz, providing a 60dB power measurement capability. It integrates the AD8318 logarithmic detector which ensures accuracy within ±1.0dB across a 55dB range for frequencies less than 5.8GHz.

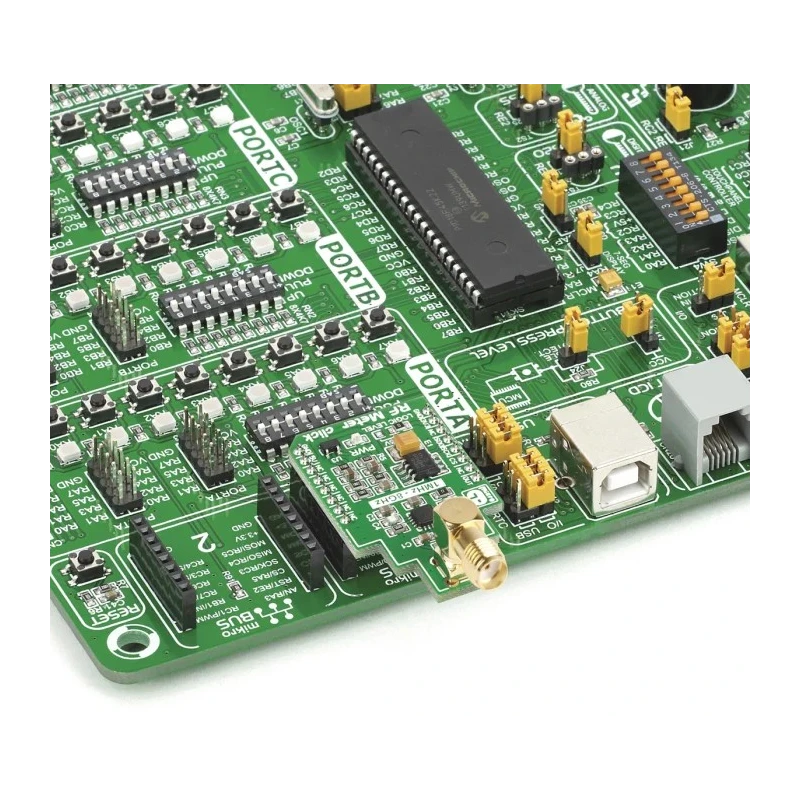

The board interfaces via a serial SPI bus, facilitating easy connection with MikroElektronika microcontroller development platforms. Its SMA connector supports a 50Ω sensing antenna allowing precise RF power detection. A dedicated LED power indicator provides immediate visual confirmation of device power status.
Powered by a +5V DC supply, the RF Meter Click is specifically designed for applications in wireless communication, RF development, testing, and measurement. This module is tailored for integration with experimental setups, prototyping environments, educational platforms including Raspberry Pi, Arduino, and other embedded systems leveraging the mikroBUS™ pin standard socket.
Designed for use with MCP3201 and AD8318 devices for reliable RF power measurement. Measures radio frequency power from 1MHz to 8GHz within a broad dynamic range. Offers ±1.0dB accuracy across 55dB of its measurement range suitable for precise applications.
Equipped with an SPI serial interface for efficient communication with development boards. Features an SMA connector providing compatibility with 50Ω antennas for RF sensing. Operates on 5V DC power supply and includes LED power status indication.
Compact MikroBus Click form factor for easy integration with MikroElektronika systems. Compliant with RoHS standards ensuring environmental safety and sustainability.
This RF Meter Click board is ideal for professionals and hobbyists engaged in RF design, testing, and analysis, providing an efficient and modular solution compatible with various development ecosystems. It streamlines RF power measurement tasks in laboratory, industrial, educational, and manufacturing environments.
Explore the full range of MikroElektronika development tools and accessories on EnvMart for optimized embedded system projects.
Explore more products in our Communication & Wireless Development Tools category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures RF power over a frequency range from 1MHz to 8GHz.
It features a serial SPI interface for seamless integration with MikroElektronika development boards.
The board operates on a +5V DC power supply, suitable for embedded applications.
It is designed for use with MCP3201 and AD8318 devices, ensuring compatibility and performance.
It includes an SMA connector that supports a 50Ω sensing antenna for precise RF power detection.
The MikroElektronika RF Power Measurement board is manufactured in India.
This model is RoHS compliant, ensuring adherence to environmental standards.
It is classified as a MikroBus Click Board, designed for modular extensions.
It is suitable for applications in wireless communication, RF development, testing, and measurement.
The maximum frequency it can measure is 8GHz, covering a broad dynamic range.
