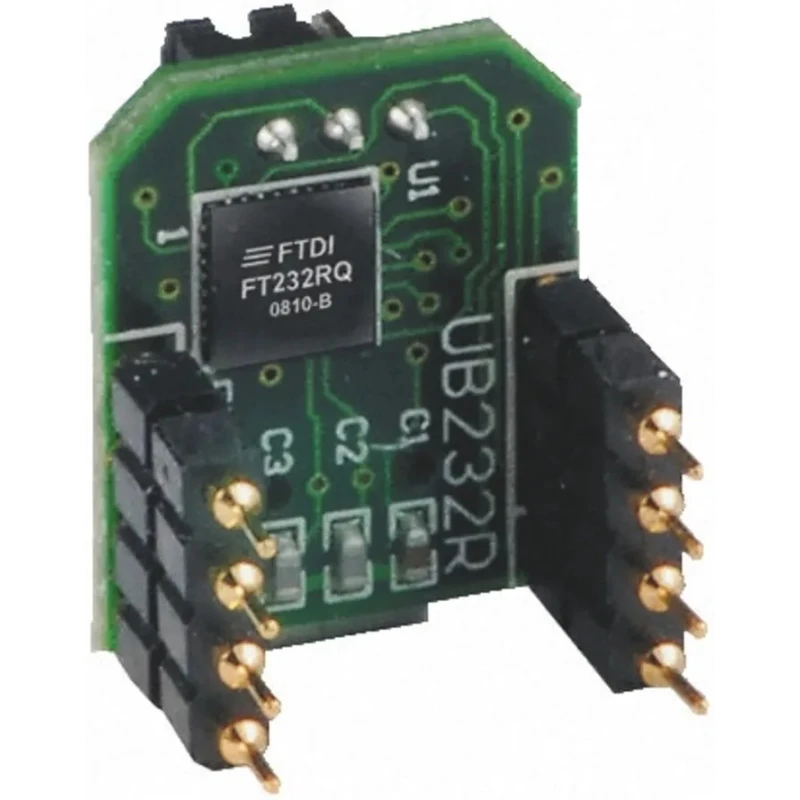

FTDI Chip Type B USB Mini-B to UART Evaluation Module FT232RQ UB232R

Free Delivery in India | Lowest Global Shipping Charges

FTDI Chip Type B USB Mini-B to UART Evaluation Module FT232RQ UB232R

Name: FTDI Chip Type B USB Mini-B to UART Evaluation Module FT232RQ UB232R
Brand: FTDI Chip
SKU: 118240



Category Communication & Wireless Development Tools Brand FTDI Chip Condition New

Specifications

Country of Origin	India
Brand	FTDI Chip
Model	UB232R
Technology	Future Technology Devices International FT232R
Interfaces	USB powered, no external power supply needed
Interface Type	USB, UART
For Use With	UB232R USB Mini-B FT232R Evaluation Module
Standards/Approvals	RoHS, USB 2.0 specification
ANSI/ESD S20.20	2014
BS EN 61340-5-1	2007
Kit Classification	Evaluation Module
Featured Device	FT232RQ
Kit Name	Type B

Key Features

The smallest USB to serial development kit from FTDI Chip series.
Standard USB mini-B connector minimizes PCB footprint.
Integrated FT232RQ USB to Serial UART IC manages USB signaling and protocol.
Supports virtual COM port (VCP) for easy PC serial communication.
USB powered with no external power supply required.
Data transfer rates from 300 baud up to 3 Mbaud at TTL level.
Lower operating current of 15mA and USB suspend mode current of 70μA.
Compatible with UHCI, OHCI, EHCI host controllers and fully USB 2.0 full speed compliant.

Product Description

FTDI Chip UB232R Evaluation Module, featuring the FT232RQ USB to Serial UART IC, is a compact Type B USB Mini-B to UART communication and wireless development tool. It supports USB 2.0 full speed standard and offers seamless integration for USB interfaces in electronic systems. Powered via USB, it requires no external power supply, handling all USB signaling and protocol internally.

This evaluation module includes a small USB mini-B connector to minimize PCB space usage. It provides data transfer rates ranging from 300 baud to 3 Mbaud at TTL level with a low operating current of 15mA and a USB suspend mode current of only 70 microamps. Compatibility with UHCI, OHCI, and EHCI host controllers ensures wide usability across systems.

The module operates reliably over a temperature range of -40°C to 85°C, making it suitable for varied environments. It supports USB suspend and resume functionality, enhancing power management. Applications include rapid USB interface integration into existing electronic systems, prototyping for new USB designs, and deployment in PCB layouts with restricted real estate.

This product is RoHS compliant and meets USB 2.0 specifications, providing a reliable solution for USB to UART conversion needs. It is ideally suited for engineering, laboratory, industrial prototyping, and communication development uses.

The smallest USB to serial development kit from FTDI Chip series. Standard USB mini-B connector minimizes PCB footprint. Integrated FT232RQ USB to Serial UART IC manages USB signaling and protocol. Supports virtual COM port (VCP) for easy PC serial communication.

USB powered with no external power supply required. Data transfer rates from 300 baud up to 3 Mbaud at TTL level. Lower operating current of 15mA and USB suspend mode current of 70μA. Compatible with UHCI, OHCI, EHCI host controllers and fully USB 2.0 full speed compliant.

Operating temperature range between -40°C and 85°C. Ideal for rapid integration, prototyping, and PCB real estate sensitive designs. Explore a wide range of communication and wireless development tools on EnvMart to complement this evaluation module.
