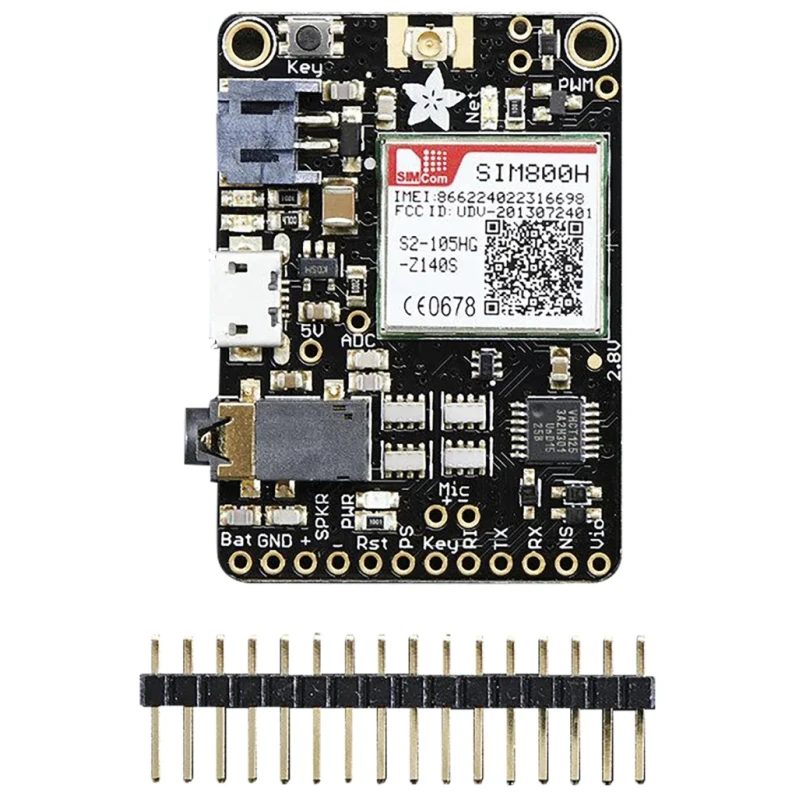

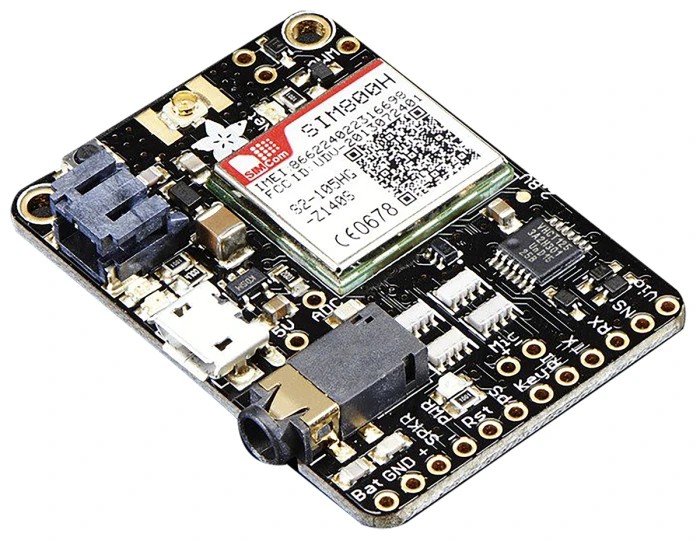

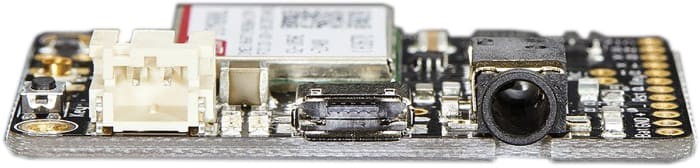

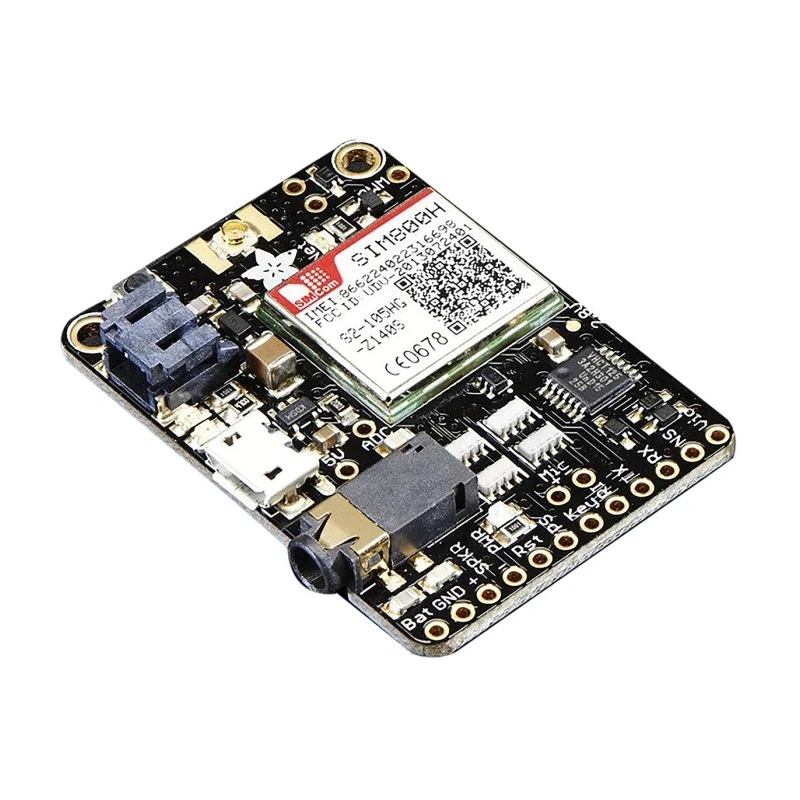

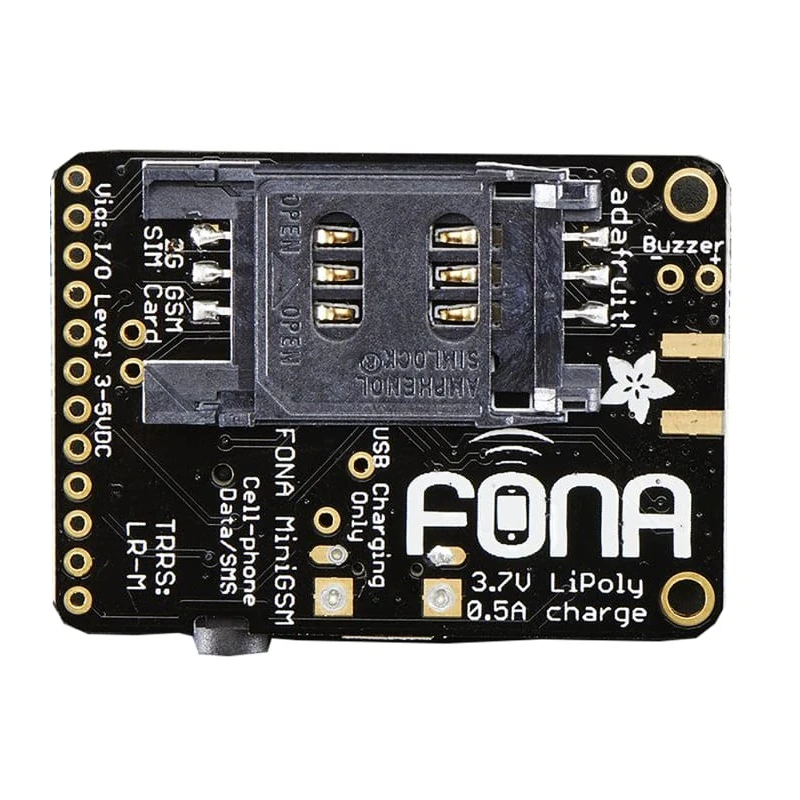

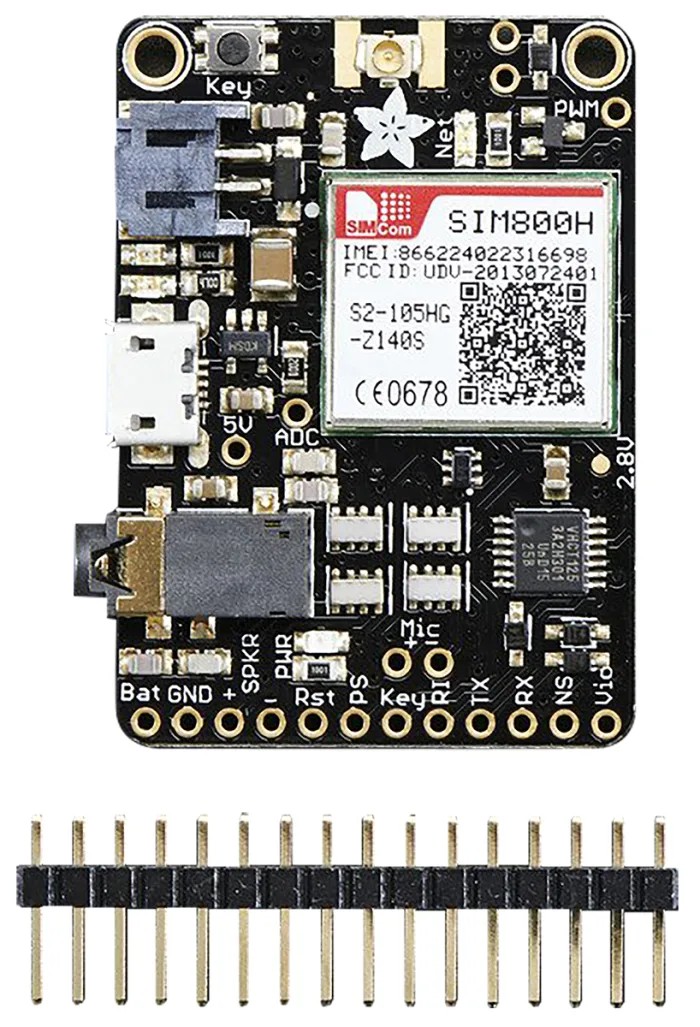

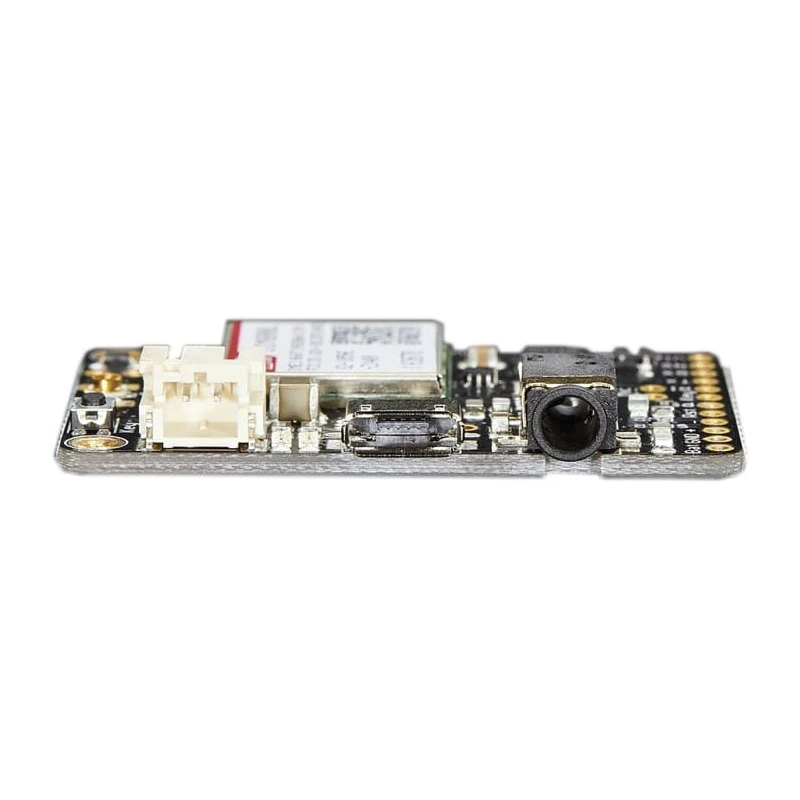

ADAFRUIT INDUSTRIES 1946 FONA MiniGSM uFL SIM800 Mobile Communication Module is a miniature cellular communication module designed to add voice, text, SMS, and data capabilities to embedded projects. Operating at a maximum frequency of 1.9 GHz, it integrates the SIM800 GSM cellular module technology within a compact form factor of approximately 4.45 x 3.18 cm (1.75" x 1.25"). This module is ideal for applications requiring cellular connectivity such as industrial monitoring, remote control systems, IoT devices, and prototyping platforms.
The module supports quad-band GSM frequencies (850/900/1800/1900 MHz), allowing global GSM network compatibility. It handles SMS sending and receiving, voice calls using either the onboard headphone socket or external 8 Ω speaker and electret microphone, and GPRS data communication supporting TCP/IP and HTTP protocols for internet connectivity.
Additional functionalities include FM radio broadcast scanning, PWM output for buzzer and vibrational motor controls, and an AT command interface with automatic baud rate detection for ease of integration with microcontrollers. It includes onboard LiPo battery charging circuitry accessible via micro-USB, recommending the use of a battery with a minimum capacity of 500 mAh, although batteries are not included.
The uFL connector allows connection to an external antenna for enhanced signal reception. Indicator LEDs provide real-time feedback on power and network connectivity status. The module operates on 2.8 V to 5 V logic levels via level shifting circuits, ensuring compatibility with various microcontroller voltage levels.
This module requires a microcontroller with UART interface for control and communication, with Arduino boards commonly recommended for integration. It is suitable for diverse industrial, telecommunications, and educational development environments requiring compact mobile communication solutions.
Supports quad-band GSM 850/900/1800/1900 MHz for worldwide cellular connectivity. Enables voice, SMS, and GPRS data transmission for versatile communication options. Includes onboard battery charging and power management circuitry.
Provides PWM output for buzzer and motor vibration control. Compact size suitable for embedded and portable applications. Compatible with microcontrollers operating at 2.8 V to 5 V logic levels. Equipped with uFL connector for external antenna integration.
Indicator LEDs for power and network status visibility. Requires an external microcontroller with UART interface for command control. Ideal for IoT, industrial automation, and mobile development projects. Browse more Communication & Wireless Development Tools on EnvMart for a wide range of compatible development modules and accessories.
