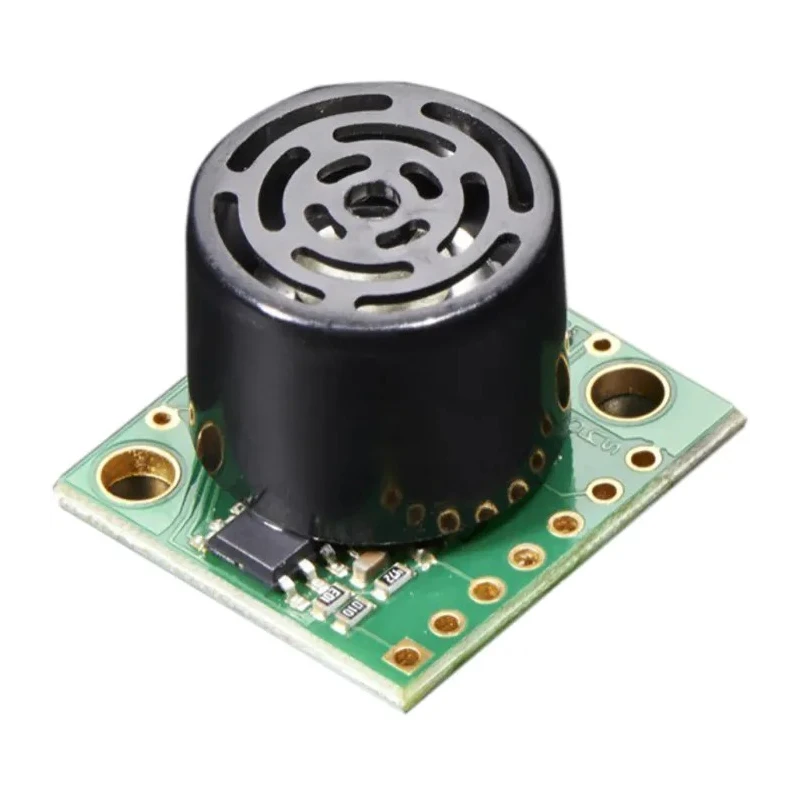

ADAFRUIT INDUSTRIES Ultrasonic Distance Sensor Module LV-EZ4 Outdoor Ultrasonic Sensors 42kHz 150 to 6000mm Range 20Hz 982
Specifications
| Country of Origin | India |
|---|---|
| Brand | ADAFRUIT INDUSTRIES |
| Dimensions | 19.9 x 22.1 x 15.5mm |
| Model | 982 |
| Sensor Technology | Ultrasonic Distance Sensor |
| For Use With | Outdoor ultrasonic sensors |
| Max Reading Rate | 20Hz |
| Standards/Approvals | RoHS |
| Kit Classification | Module |
| Featured Device | LV-EZ4 |
| Kit Name | Maxbotix |
| Sensor frequency | 42kHz |
| Object range | 150 to 6000mm |
| Output formats | UART serial, Analogue (Vcc/512)/inch, PWM (147μs/inch) |
Key Features
- Operates at a frequency of 42kHz for accurate distance measurements.
- Supports object detection range from 150mm to 6000mm.
- Maximum reading rate of 20Hz for real-time sensing.
- Compact dimensions of 19.9 x 22.1 x 15.5mm enable easy integration.
- Outputs are simultaneously available as UART serial, analogue voltage, and PWM signals.
- Continuously variable gain allows control for side-lobe suppression.
- Designed for outdoor ultrasonic sensor applications with ULtrasonic LV-EZ4 sensor.
- Powered from +2.5V to +5.5V DC with typical current consumption of 2mA.
Product Description
ADAFRUIT INDUSTRIES 982 Ultrasonic Distance Sensor Module LV-EZ4 is a sensor development tool designed specifically for outdoor ultrasonic distance sensing applications. It features the LV-MaxSonar-EZx series ultrasonic rangefinder sensors that detect objects using airborne ultrasound with a frequency of 42kHz, providing a non-contact method for measuring distances up to 6000 millimeters.
This module delivers a maximum reading rate of 20Hz, making it suitable for applications requiring near real-time distance data. The sensor outputs are delivered simultaneously in several formats including UART serial data, analogue voltage scaled as Vcc/512 per inch, and PWM pulses with timing corresponding to 147 microseconds per inch. This allows flexible integration with different microcontroller systems.
The compact physical size of 19.9 mm (height) × 22.1 mm (width) × 15.5 mm (depth) facilitates ease of mounting within embedded systems, mobile robotics, collision avoidance, and security monitoring hardware. It includes continuously variable gain control for side-lobe suppression to improve signal quality and reduce false echo readings from side objects.
Powered by a DC supply in the range of +2.5V to +5.5V and consuming just 2 mA typical current, the sensor is both energy efficient and reliable for portable and low power devices. The design supports multiple sensors operating simultaneously in a single system, suitable for advanced navigation or distance sensing arrays.
Typical industrial, laboratory, and environmental applications include mobile robot navigation, collision avoidance systems, security alarm triggering, and general range measurement in protected indoor or outdoor environments. The sensor is RoHS compliant, ensuring adherence to environmental standards.
Operates at 42kHz ultrasonic frequency. Object detection range from 150 mm to 6000 mm. Simultaneous output interfaces: UART serial, analogue, PWM. Continuous gain adjustment for side-lobe suppression. Small footprint: 19.9 x 22.1 x 15.5 mm size.
Low power consumption: 2 mA typical at 2.5 to 5.5 Vdc.
Set your sensing applications apart by leveraging ADAFRUIT INDUSTRIES’ renowned quality and precision with the 982 LV-EZ4 Ultrasonic Sensor Module. Discover more sensors and Sensor Development Tools in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor has an object detection range from 150 mm to 6000 mm.
This model has a maximum reading rate of 20Hz, allowing for near real-time distance data acquisition.
It outputs data in multiple formats including UART serial, analogue voltage scaled as Vcc/512 per inch, and PWM pulses corresponding to 147 microseconds per inch.
The sensor operates at a frequency of 42kHz for accurate distance measurements.
The compact dimensions of this unit are 19.9 mm in height, 22.1 mm in width, and 15.5 mm in depth.
It requires a DC supply voltage in the range of +2.5V to +5.5V.
The typical current consumption is 2 mA, making it energy efficient for various applications.
Yes, it is specifically designed for outdoor ultrasonic sensing applications.
This model uses ultrasonic technology for distance measurement.
Yes, the sensor is RoHS compliant, ensuring it adheres to environmental standards.
It is suitable for applications such as mobile robot navigation, collision avoidance systems, and security alarm triggering.
It includes continuously variable gain control for side-lobe suppression, which helps reduce false echo readings from side objects.
