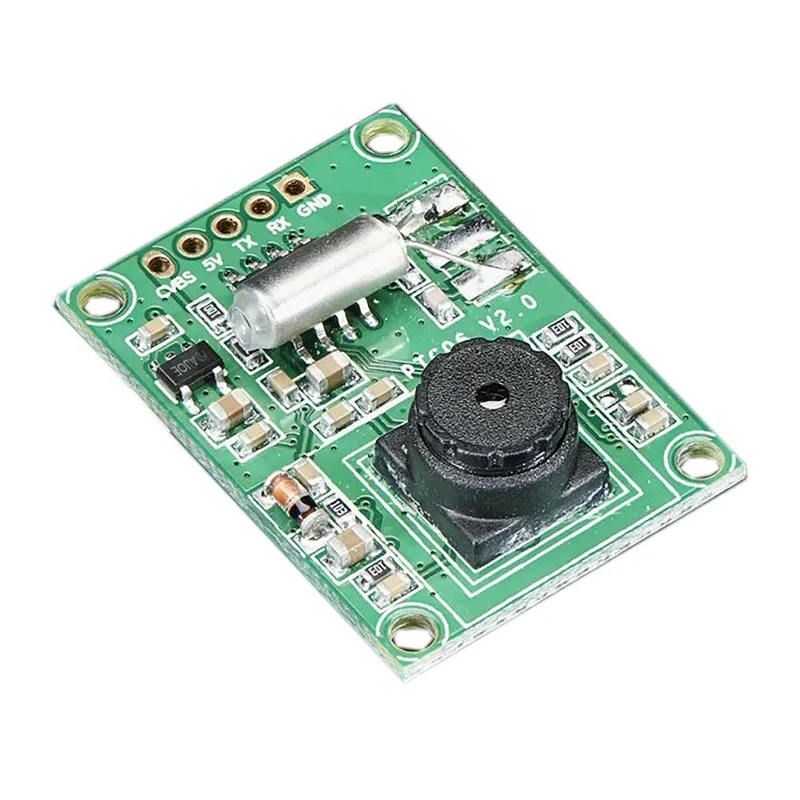

ADAFRUIT INDUSTRIES Camera Module TTL Serial JPEG NTSC Video Module 5 V 0.3MP 30fps 1386
Specifications
| Country of Origin | India |
|---|---|
| Brand | ADAFRUIT INDUSTRIES |
| Height | 28mm |
| Length | 20mm |
| Model | 1386 |
| Communication | 3.3 V TTL (Three wire TX, RX, GND) |
| Baud rate | Default 38400 |
| Viewing angle | 60° |
| Sub Type | Camera Module |
| Dynamic Range | 60DB |
| Current Draw | 75 mA |
| Pixel Size | 5.6 um x 5.6 um |
| Gain | Automatic |
| Image Sensor | CMOS ¼ inch |
| White Balance | Automatic |
| Scan Mode | Progressive scan |
| Shutter | Electronic rolling shutter |
| SNR | 45DB |
| Exposure | Automatic |
| Operating Voltage | DC +5 V |
| Supported Bus Interfaces | Serial |
| Module Size | 32 x 32 mm |
| Maximum frame rate | 30fps |
| CMOS Pixels | 0.3M |
| Output format | Standard JPEG/M-JPEG |
| Max analogue gain | 16DB |
| Monitoring distance | 10 metres, maximum 15 metres (adjustable) |
Key Features
- This camera outputs NTSC color video with pre-compressed JPEG images.
- Supports resolutions of 640x480, 320x240, and 160x120 pixels.
- Automatic adjustment of white balance, brightness, and contrast ensures high-quality images.
- Manual lens focus adjustable from 1 to 15 meters for versatile applications.
- Supports motion detection for capturing images on frame changes.
- Operates at 5 V DC with a current draw of 75 mA.
- Communicates via 3.3 V TTL serial interface with a default baud rate of 38400.
- Compact module size of 32 x 32 mm suitable for embedded projects.
Product Description
ADAFRUIT INDUSTRIES 1386 Camera Module is a tiny TTL serial JPEG camera module designed primarily for security, data logging, and photography projects. It outputs NTSC color video and transmits pre-compressed JPEG images via a TTL serial link, reducing file sizes for efficient storage.
The camera offers selectable image resolutions of VGA (640x480), QVGA (320x240), and QQVGA (160x120) pixels. It features automatic white balance, brightness, exposure, and gain for optimal image quality under varying conditions. The lens is manually adjustable with a focal range of 1 to 15 meters, suitable for most surveillance applications.
This module supports motion detection, enabling image capture when changes occur within the video frame, enhancing its utility for security systems. The image sensor is a 0.3MP CMOS ¼ inch type with a pixel size of 5.6 µm. The camera uses an electronic rolling shutter and progressive scan for smooth frame capture at up to 30 frames per second.
Operating at a DC supply voltage of +5 V with a low current consumption of 75 mA, the module communicates over a 3.3 V TTL serial interface with a default baud rate of 38400. The compact form factor of 32 x 32 mm allows integration into space-constrained projects.
This camera module is ideal for industrial, security, and educational applications including Raspberry Pi, Arduino, and other development platforms. It supports standard JPEG or M-JPEG output formats compatible with SD card storage.
The viewing angle is 60 degrees with a monitoring distance adjustable up to 15 meters. Automatic image settings improve performance in variable light conditions. Motion detection enhances security functionalities within embedded systems.
Explore more Raspberry Pi camera modules and electronic components at EnvMart for your embedded and development needs.
Explore more products in our Raspberry Pi Cameras category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum frame rate of this camera module is 30 frames per second (fps).
It supports selectable image resolutions of 640x480 (VGA), 320x240 (QVGA), and 160x120 (QQVGA) pixels.
This camera module operates at a DC supply voltage of +5 V.
The compact module size is 32 x 32 mm with a height of 28 mm and a length of 20 mm.
The viewing angle of this camera module is 60 degrees.
It supports standard JPEG and M-JPEG output formats.
The pixel size of the image sensor is 5.6 µm x 5.6 µm.
The camera features automatic white balance, brightness, exposure, and gain adjustments to improve image quality in different lighting conditions.
This camera uses an electronic rolling shutter mechanism.
This model is suitable for industrial, security, and educational applications, including use with Raspberry Pi and Arduino platforms.
