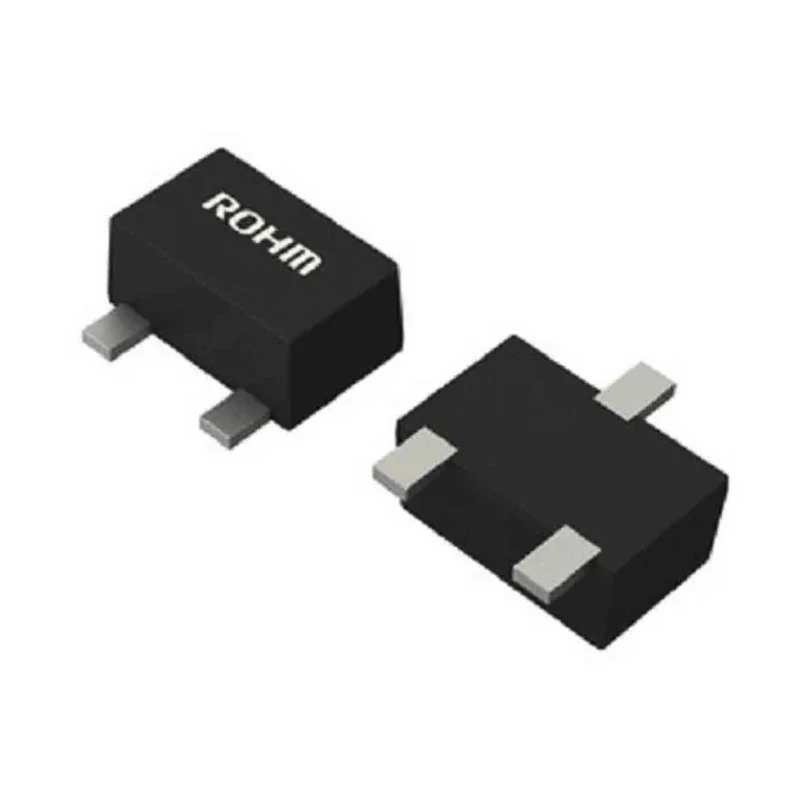

ROHM Switching Diode Single 215 mA 80 V SOT-323 3-Pin BAV199UMFHTL

Free Delivery in India | Lowest Global Shipping Charges

ROHM Switching Diode Single 215 mA 80 V SOT-323 3-Pin BAV199UMFHTL

Name: ROHM Switching Diode Single 215 mA 80 V SOT-323 3-Pin BAV199UMFHTL
Brand: ROHM
SKU: 111311
Price: 0.1 USD
Availability: InStock



Category Switching Diodes Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	1.15mm
Length	3.1mm
Model	BAV199UMFHTL
Width	2.6mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SOT-323
Sub Type	Switching Diode
Minimum Operating Temperature	-65°C
Pin Count	3
Maximum Power Dissipation Pd	250mW
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	4A
Maximum Forward Voltage Vf	1.25V
Peak Reverse Recovery Time trr	3μs
Maximum Forward Current If	215mA
Maximum Peak Reverse Repetitive Voltage Vrrm	80V

Key Features

Maximum forward current of 215 mA ensures reliable operation in switching applications.
Compact SOT-323 surface mount package with 3 pins for easy PCB integration.
Maximum peak reverse repetitive voltage of 80 V suitable for various electronic circuits.
Low forward voltage of 1.25 V minimizes power loss during conduction.
Peak non-repetitive forward surge current rating of 4 A enhances transient robustness.
Wide operating temperature range from -65°C to 150°C supports harsh environment use.
Maximum power dissipation of 250 mW to handle dissipated heat effectively.
Peak reverse recovery time of 3 μs enables fast switching performance.

Product Description

ROHM BAV199UMFHTL is a high reliability switching diode designed for general switching applications. It features a single diode configuration with a 215 mA maximum forward current and is housed in a compact SOT-323 3-pin surface mount package.

With a maximum peak reverse repetitive voltage rating of 80 V and a low forward voltage of 1.25 V, this diode effectively balances power loss and voltage handling capability. It supports a peak non-repetitive forward surge current of 4 A and a maximum power dissipation of 250 mW, making it suitable for moderate power electronic circuits.

The diode's fast switching is supported by a peak reverse recovery time of 3 μs, allowing efficient operation in switching circuits. It operates reliably over a broad temperature range from -65°C to 150°C, providing stability in demanding industrial, electronic manufacturing, and commercial applications.

The compact dimensions of 3.1 mm in length, 2.6 mm in width, and 1.15 mm in height enable integration into space-constrained board layouts. The surface mount SOT-323 package ensures ease of assembly in modern electronic component manufacturing.

Typical applications include power supply circuits, general electronic switching, and industrial electronic designs where reliability and performance are critical. Maximum forward current of 215 mA ensures reliable operation in switching applications.

Compact SOT-323 surface mount package with 3 pins for easy PCB integration. Maximum peak reverse repetitive voltage of 80 V suitable for various electronic circuits. Low forward voltage of 1.25 V minimizes power loss during conduction.

Peak non-repetitive forward surge current rating of 4 A enhances transient robustness. Wide operating temperature range from -65°C to 150°C supports harsh environment use. Maximum power dissipation of 250 mW to handle dissipated heat effectively.

Peak reverse recovery time of 3 μs enables fast switching performance. Dimensions of 3.1 mm length, 2.6 mm width, and 1.15 mm height suitable for compact electronic designs. High reliability design suitable for general switching applications.
