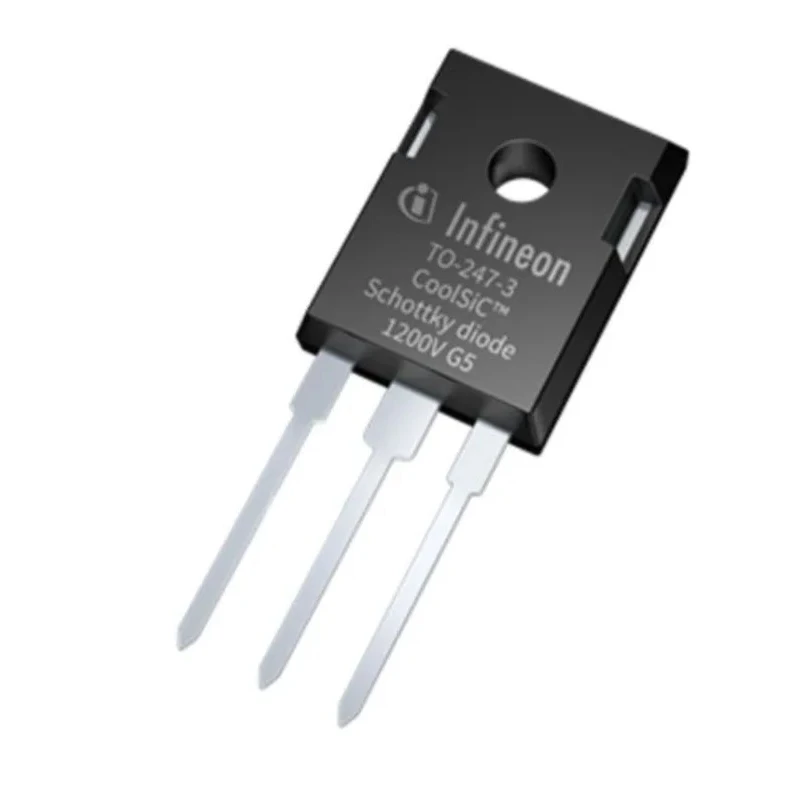

Infineon Schottky Diode 1200V 15A, 2-Pin TO-247 Package IDW15G120C5BFKSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 41.42mm |
| Length | 16.13mm |
| Model | IDW15G120C5BFKSA1 |
| Width | 5.21mm |
| Mount Type | Through Hole |
| Series | 5th Generation CoolSiC |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | JEDEC 1 |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 15A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 640μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 170A |
| Maximum Forward Voltage Vf | 1.7V |
Key Features
- Operates with a maximum continuous forward current of 15A.
- Withstands peak reverse repetitive voltage up to 1200V.
- Features a robust TO-247 package for through-hole mounting.
- Utilizes fifth generation CoolSiC Schottky technology for enhanced efficiency.
- Suitable for motor control, drives, solar and UPS systems.
- Offers improved power density at high switching frequencies.
- Delivers high reliability and reduced electromagnetic interference.
- Includes single diode configuration and 2-pin design.
Product Description
Infineon IDW15G120C5BFKSA1 is a high-performance Schottky diode engineered to meet demanding requirements in power electronics. With a maximum continuous forward current of 15A and a peak reverse repetitive voltage of 1200V, this diode is ideally suited for motor control, renewable energy systems, and uninterruptible power supplies.
The device is packaged in a sturdy TO-247 form factor, supporting through-hole mounting for reliable assembly. The fifth generation CoolSiC Schottky technology provides increased power density and improved system efficiency, especially under high switching frequency conditions. Its unique single-diode configuration offers precise rectification for advanced electronics.
Operates with a maximum continuous forward current of 15A. Withstands peak reverse repetitive voltage up to 1200V. Features a robust TO-247 package for through-hole mounting. Utilizes fifth generation CoolSiC Schottky technology for enhanced efficiency.
Suitable for motor control, drives, solar and UPS systems. Offers improved power density at high switching frequencies. Delivers high reliability and reduced electromagnetic interference. Includes single diode configuration and 2-pin design.
With a maximum forward voltage of 1.7V and low peak reverse current, the diode ensures minimized conduction losses and superior thermal stability across operating temperatures from -55°C to 175°C. These characteristics make it highly reliable for industrial, laboratory, and renewable energy installations.
The device meets JEDEC 1 standards and is not intended for automotive use. Its compact dimensions (16.13mm length, 41.42mm height, 5.21mm width) allow easy integration into various electronic assemblies.
Primary applications include motor drives, solar system inverters, UPS systems, and other high-efficiency power conversion setups in industrial, commercial, and laboratory environments. For more high-performance power semiconductors from Infineon, browse the Schottky Diodes & Rectifiers category on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 15A.
It can withstand a peak reverse repetitive voltage of up to 1200V.
The dimensions of the TO-247 package are 16.13mm in length, 41.42mm in height, and 5.21mm in width.
The operating temperature range is from -55°C to 175°C.
It utilizes fifth generation CoolSiC Schottky technology for improved efficiency.
The maximum forward voltage drop is 1.7V.
This diode features a through-hole mounting type.
The peak reverse current is 640μA.
It is suitable for applications such as motor control, solar systems, and uninterruptible power supplies (UPS).
This model has a single diode configuration.
It meets JEDEC 1 standards.
The peak non-repetitive forward surge current is 170A.
