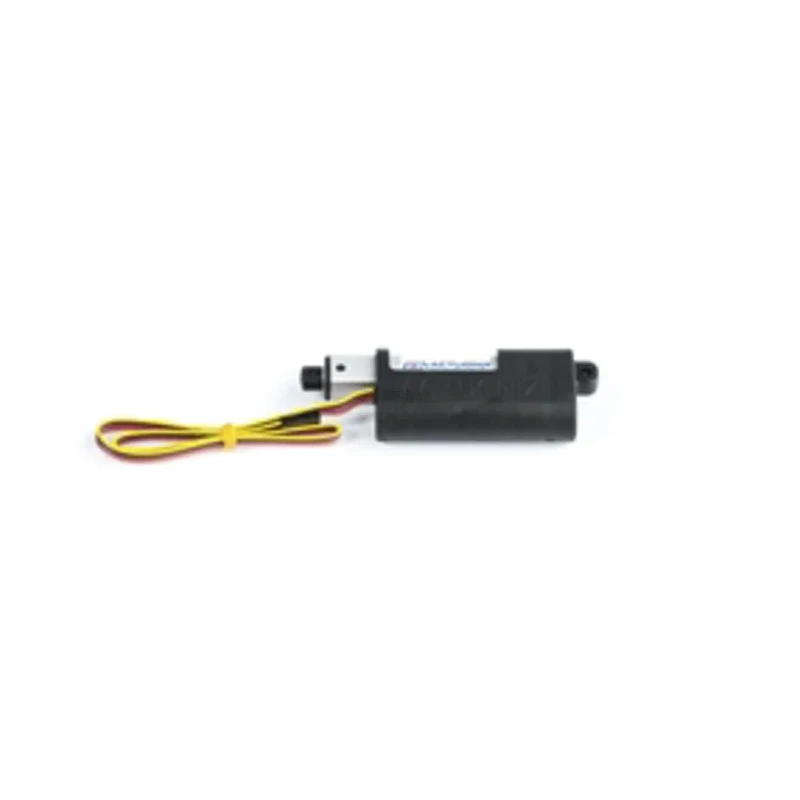

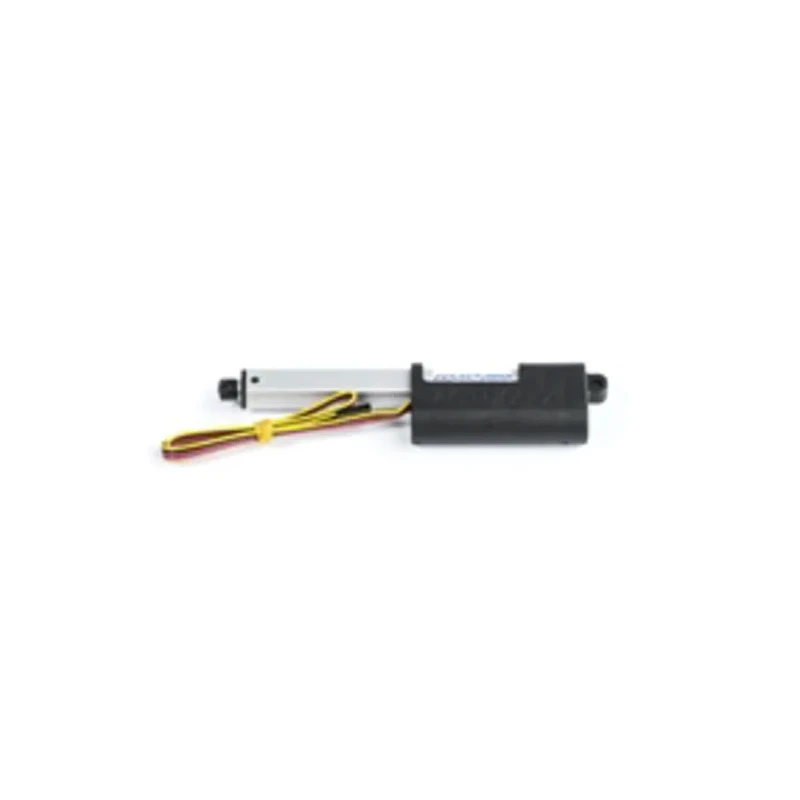

Actuonix Electrical Linear Actuator 50 mm Stroke 20lb Load 12V DC 18mm/s Speed P16-50-64-12-P

Actuonix P16-50-64-12-P electrical linear actuator is a miniature linear motion device designed for precise automation tasks requiring a 50 mm stroke length and a maximum load of 20lb (approximately 90N) with a 12V direct current power supply.

This actuator features a robust compact side-by-side design integrating a planetary gearbox, which enhances speed, force, and longevity compared to previous models in the P16 series.

Its maximum speed of 18 mm/s and 20% duty cycle rating make it suitable for precise positioning in applications where intermittent operation is critical. The device uses a lead screw spindle type to convert rotary motion to linear displacement with excellent positional accuracy and stability.

Rated IP54, the unit offers protection against limited dust ingress and water spray, making it reliable in industrial, laboratory, HVAC, manufacturing, and automation setups. Designed to operate in ambient temperatures between -10°C and 50°C, it supports various industrial environments while remaining lightweight at 95 grams for easy mounting.

The actuator complies with RoHS standards, underlining its environmental compliance, and is manufactured in China. This actuator’s compact design and performance features enable versatile use in automated machinery, robotics, and fluid power actuation systems.

Available with position feedback or end of stroke limit switches, it offers flexible control methods including DPDT switch or wireless control in RC applications. Its compact footprint and power specifications make it ideal for integrating into tight mechanical assemblies requiring controlled linear motion.

EnvMart offers this high-quality Electrical Linear Actuator for industrial and laboratory applications. Explore more Actuonix products and other mechanical power transmission components for your automation needs.
