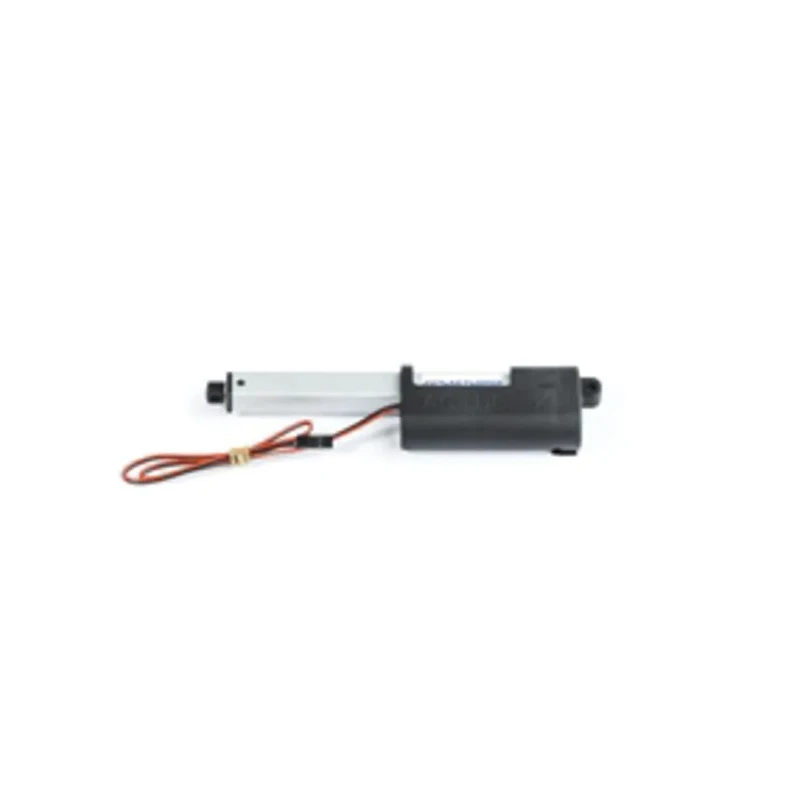

Actuonix Electrical Linear Actuator 50 mm Stroke 20 lb Load 12V DC 46 mm/s Speed P16-50-22-12-S

Actuonix P16-50-22-12-S Electrical Linear Actuator is a miniature and compact linear motion device designed for precise push/pull actuation in industrial and commercial applications. With a 50 mm stroke length and a maximum load capacity of 20 lb (50 N), this actuator operates on a 12V DC power supply and achieves a speed of 46 mm per second. The actuator's robust IP54 rating ensures protection against dust ingress and water splashes, making it suitable for various environmental conditions.

This actuator features an innovative side-by-side compact design with an integrated planetary gearbox, providing higher speeds, greater forces, and extended service life compared to previous models. It utilizes a lead screw spindle for smooth, accurate linear movement, and includes built-in end of stroke limit switches to automatically halt movement upon reaching physical endpoints, enhancing operational safety.

Designed for modular use, the P16 series supports control through polarity reversal, compatible with DPDT switches, push button switches, wireless controllers, relays, or brushed reversible DC motor controllers commonly used in robotics, automation, and remote-controlled devices. The device supports a duty cycle of 20%, suitable for intermittent actuation tasks with adequate thermal management.

Its lightweight construction at 95 grams allows easy mounting in compact and portable equipment without adding significant load. Operating temperatures range from -10°C to 50°C, covering a wide industrial environment spectrum.

Compact and durable design with planetary gearbox. 12V DC input voltage for widespread compatibility. Maximum force of 50N supports diverse applications. IP54 rated enclosure for dust and splash protection. End of stroke limit switches integrated for operational safety.

20% duty cycle suitable for intermittent actuation. Overall closed length of 105.5mm fits tight spaces. Lead screw spindle type for precise motion control. Wide operating temperature range of -10°C to 50°C. Lightweight at 95 grams for versatile mounting options.

This linear actuator is ideal for use in industrial automation, robotics, fluid power systems, and laboratory equipment where compact, reliable linear motion is required. Its standard 12V DC operation and compact form factor make it suitable for integration into electrical machinery, HVAC systems, and manufacturing equipment requiring precise, controlled linear displacement.
