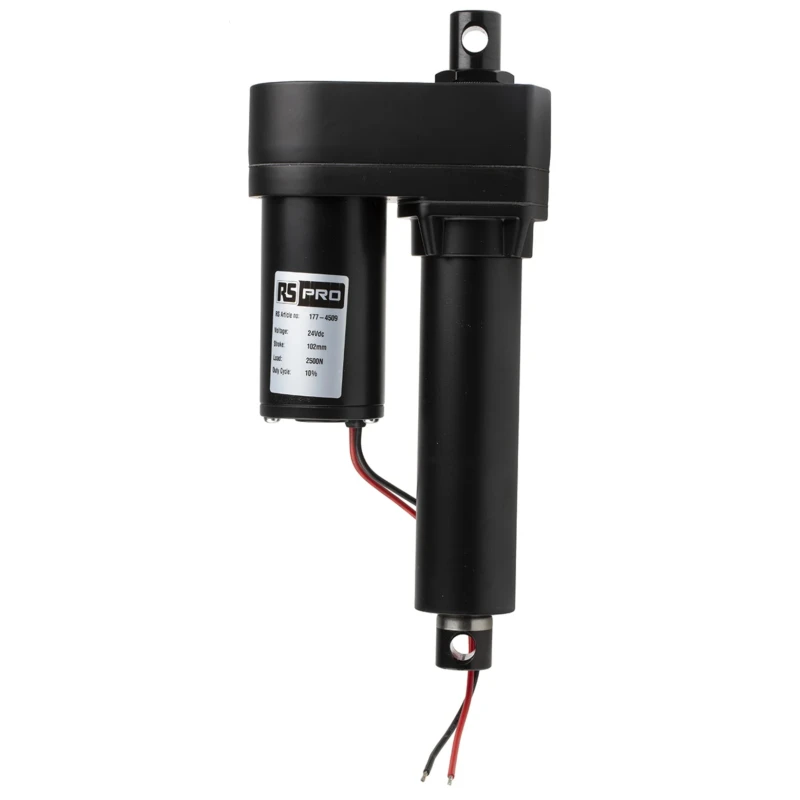

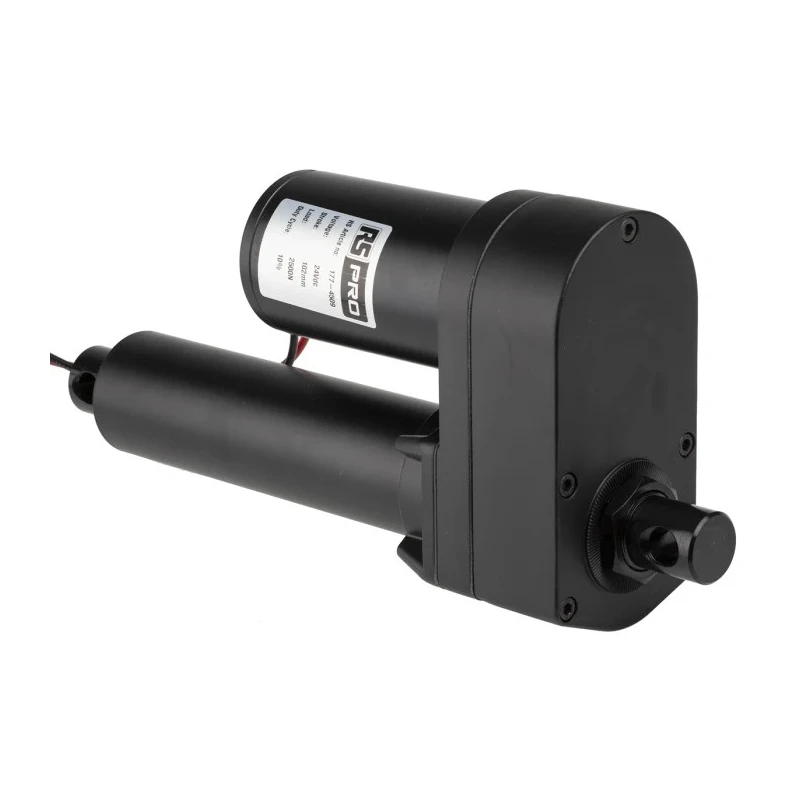

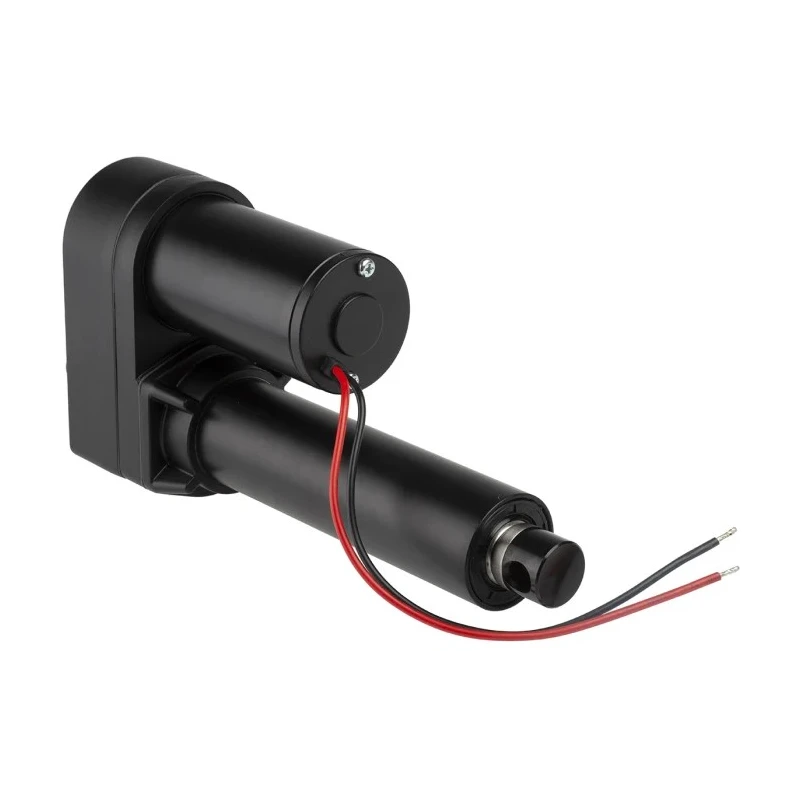

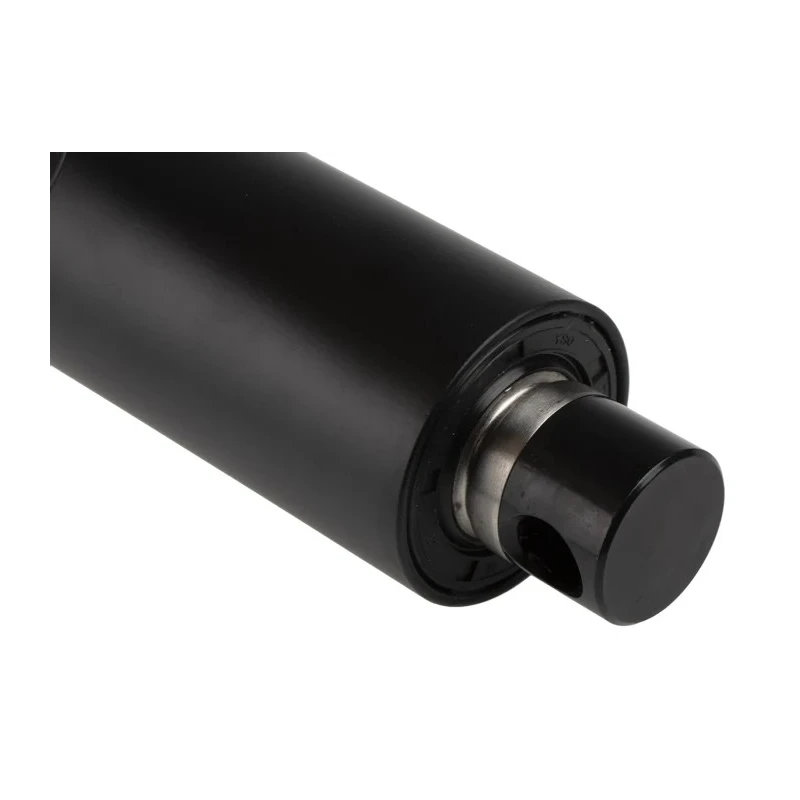

RS PRO Electrical Linear Actuator 102 mm Stroke 2500N Max Load 24V DC Motor 67.1 mm/s Speed 177-4509

RS PRO 177-4509 Electrical Linear Actuator is designed for efficient and precise linear movement applications. Featuring a 102 mm stroke length and maximum load capacity of 2500N, this actuator operates on 24V DC supplied to a high-quality DC motor for smooth performance at speeds up to 67.1 mm/s. Its compact and durable black design ensures minimal operational costs while providing robustness for industrial environments.

The actuator includes a pitch spindle type of 5.08 mm, enhancing control accuracy. With an overall closed length of 330 mm, it is suitable for installations where space constraints exist, such as window openers and adjustable vehicle seats. The IP54 rating safeguards against dust ingress and water splashes, ensuring reliability in various industrial settings.

Its operational temperature range from -20°C to 65°C allows use in diverse environmental conditions. The actuator carries CE certification and complies with EN55014-1:2017+A11:2020 and EN55014-2:2015 standards, confirming quality and safety compliance.

Applications include automation systems, machine component adjustments, industrial machinery, and home automation setups. The reliable DC motor technology and built-in limit switch protect the motor from stalling and extend the actuator’s service life.

Operates on 24V DC voltage with a robust DC motor. Delivers a maximum load capacity of 2500N for push and pull applications. Provides a stroke length of 102 mm with an overall closed length of 330 mm. Maximum speed of 67.1 mm/s enables fast linear motion.

Equipped with IP54 rating for protection against dust and water splashes. Built with a pitch spindle type of 5.08 mm for precise movements. Functional operating temperature range from -20°C to 65°C. Compact black design minimizes operational costs and energy consumption.

Ideal for automation, machine components, and applications with limited installation space. CE certified with compliance to EN55014-1:2017+A11:2020 and EN55014-2:2015 standards. Explore a wide range of Electrical Linear Actuators and mechanical power transmission products at EnvMart for your industrial and automation needs.
