Festo Electrical Linear Actuator Servo Motor Stepper Motor 200 mm Stroke 13321N Max Load EGSC-BS-KF-60-200-12P

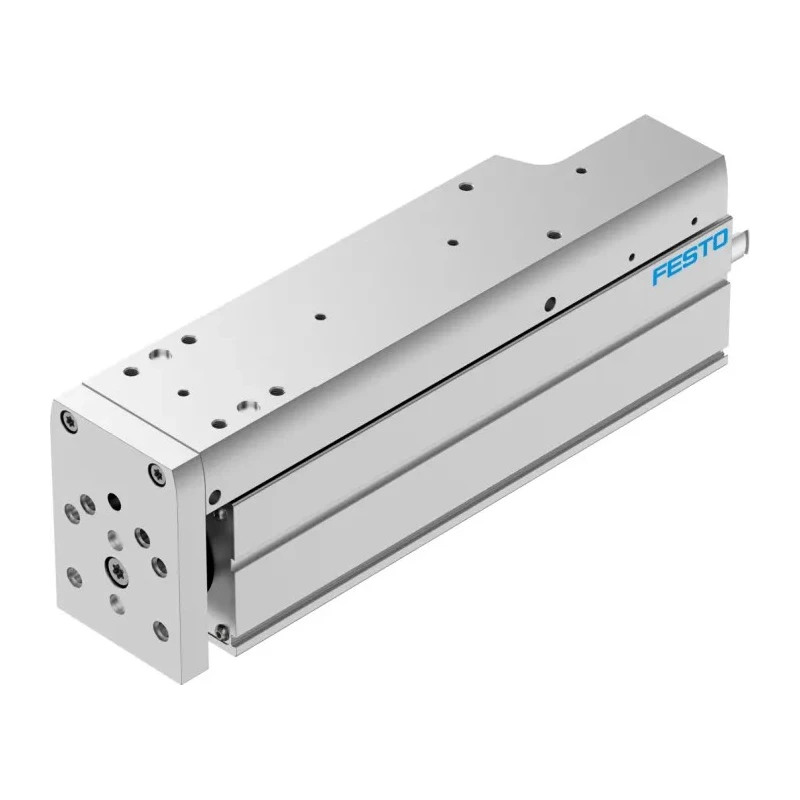

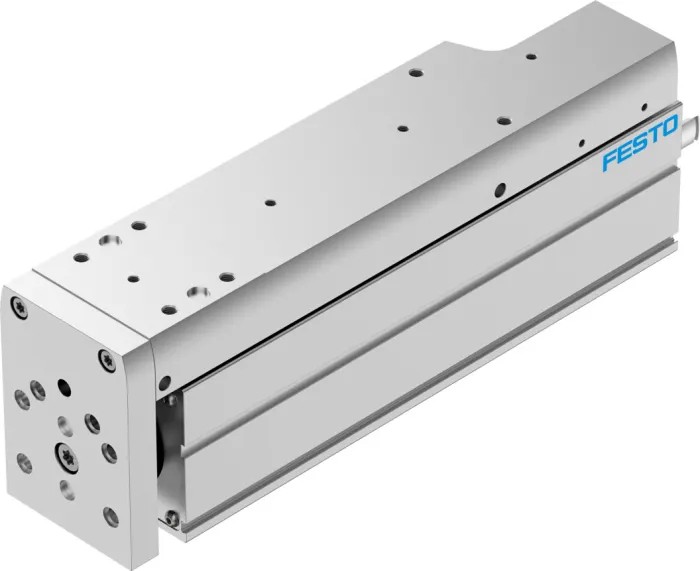

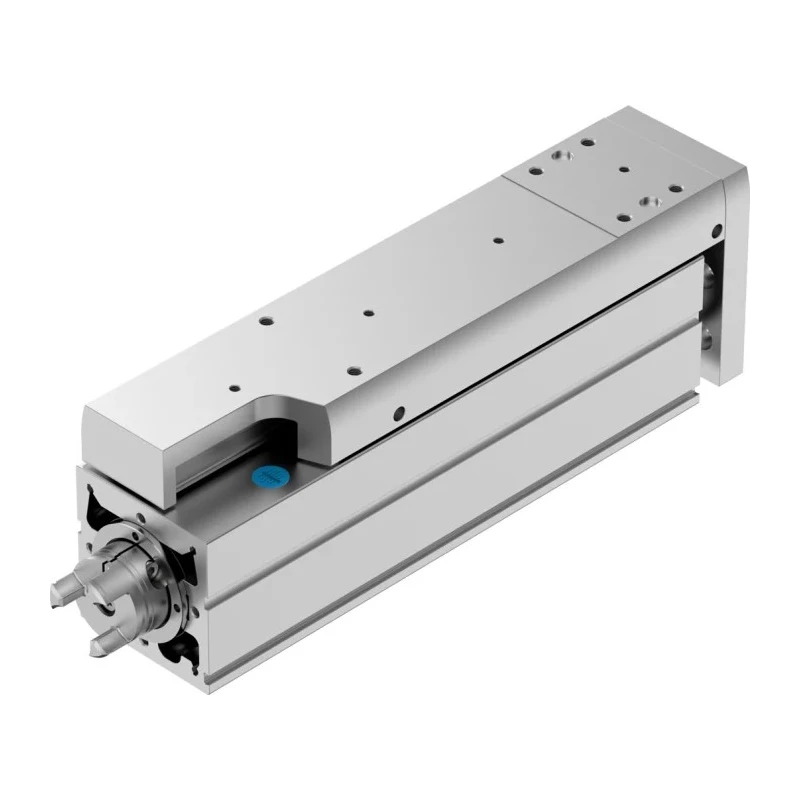

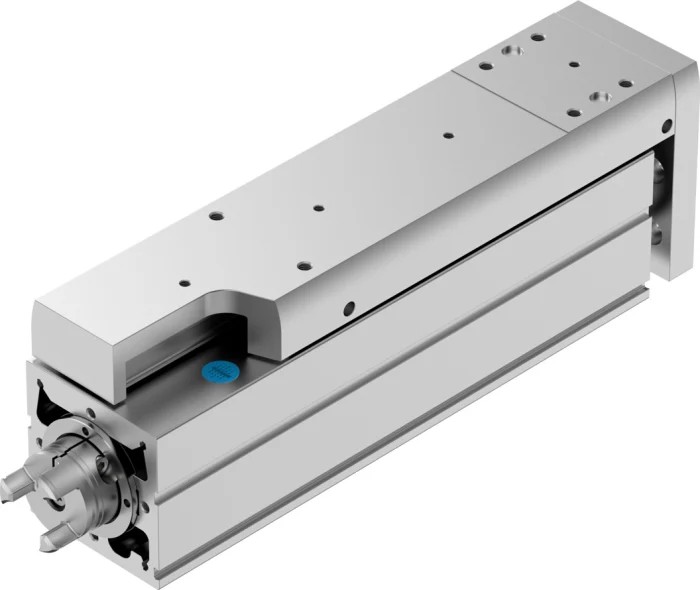

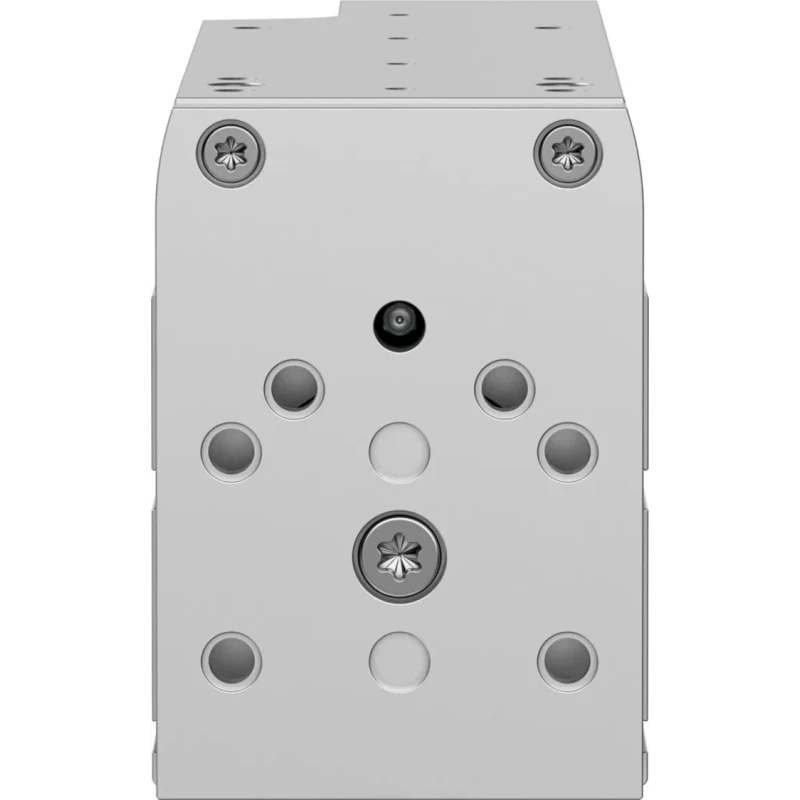

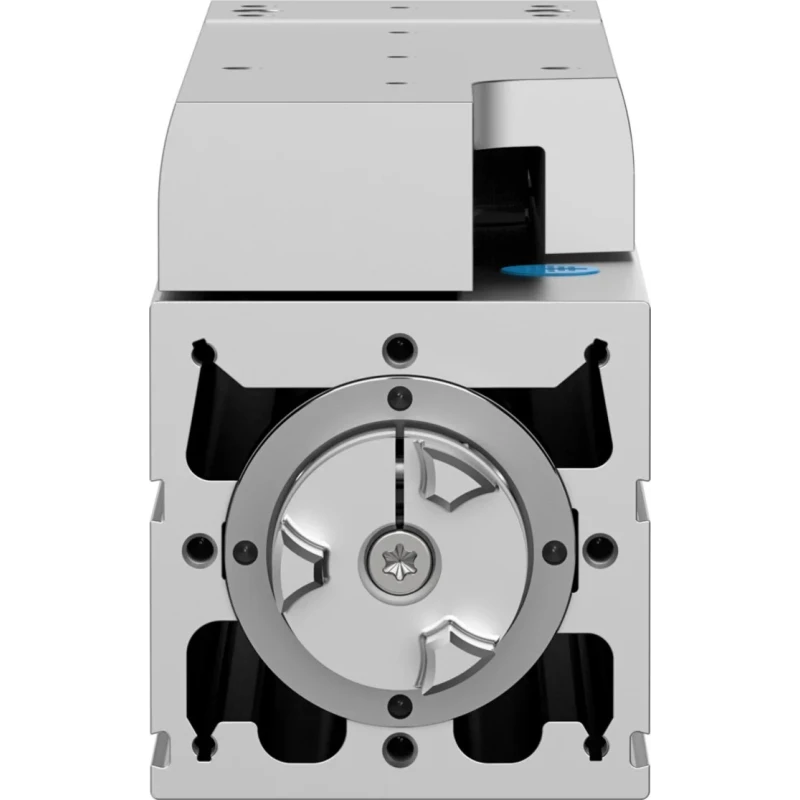

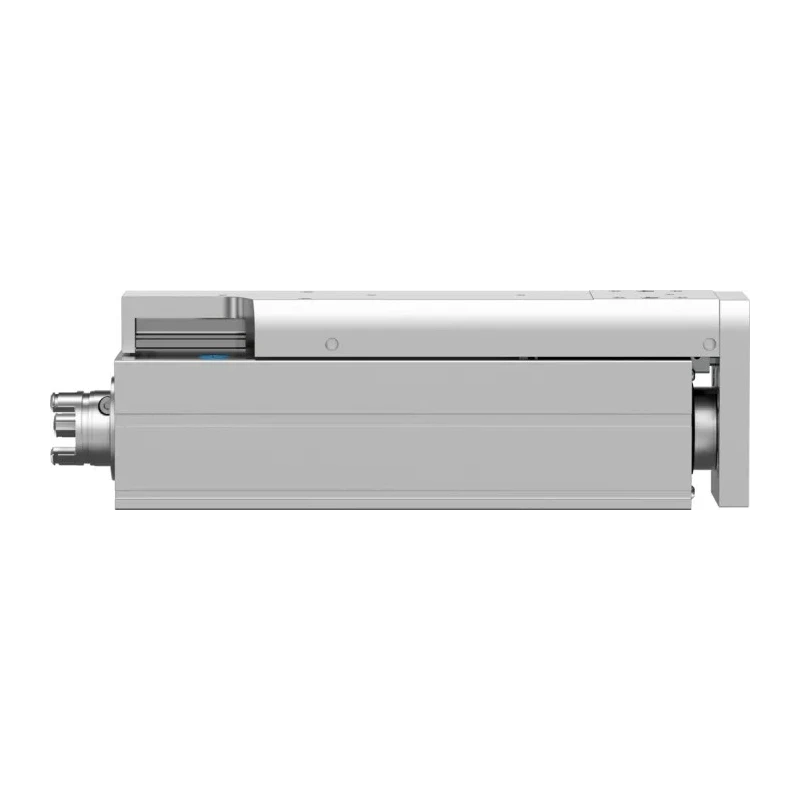

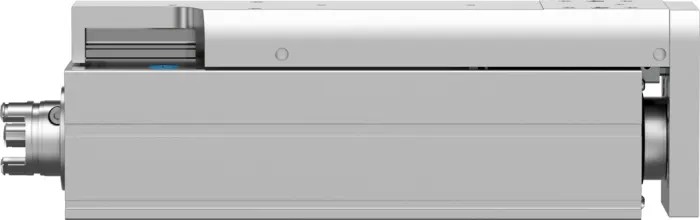

Festo EGSC-BS-KF-60-200-12P Electrical Linear Actuator is a high-performance device designed to deliver precise linear motion with a stroke length of 200 mm and a maximum load capacity of 13321N. Utilizing advanced servo and stepper motor technology, this actuator achieves rapid positioning with a no-load speed of 600 mm/s, making it ideal for automation in manufacturing and assembly lines.

The actuator's built-in ball screw spindle enhances load handling capacity and reliability. It supports a 100% duty cycle, which means it is suitable for continuous operation without overheating, crucial for demanding industrial environments. An integrated proximity switch offers accurate position detection, contributing to enhanced control and repeatability in applications.

Constructed with corrosion-resistant materials and featuring an IP40 rating, the actuator is robust against dust ingress, ensuring durability in harsh factory conditions. The compact overall length of 60 mm when closed allows flexible mounting orientations, supporting both horizontal and vertical installations. Weighting 3.46 kg, it balances strength and manageability.

This actuator operates effectively in ambient temperatures ranging from 0°C to 50°C and meets RoHS standards. It is designed for diverse industrial and laboratory uses including manufacturing automation, precise testing environments, delicate component handling, and cleanroom adherence.

Equipped with servo and stepper motor technology for precise motion control. High speed of 600 mm/s boosts workflow efficiency. Ball screw spindle ensures robust load handling capabilities. Capable of continuous 100% duty cycle operation.

Proximity switch provides precise position feedback. Corrosion-resistant construction extends service life. Compact 60 mm closed length supports various mounting options. Rated IP40 for adequate protection against solid objects.

Operates smoothly within 0°C to 50°C ambient temperature range. Weight optimized at 3.46 kg for industrial use.

Festo Electrical Linear Actuators are excellent for applications in industrial automation, laboratory testing, and material handling where precision and reliability are mandatory. This model is part of the EGSC-BS series, boasting a robust design suitable for continuous heavy-duty use.

Discover more from the Festo range and other Electrical Linear Actuators at EnvMart for your industrial automation needs.
