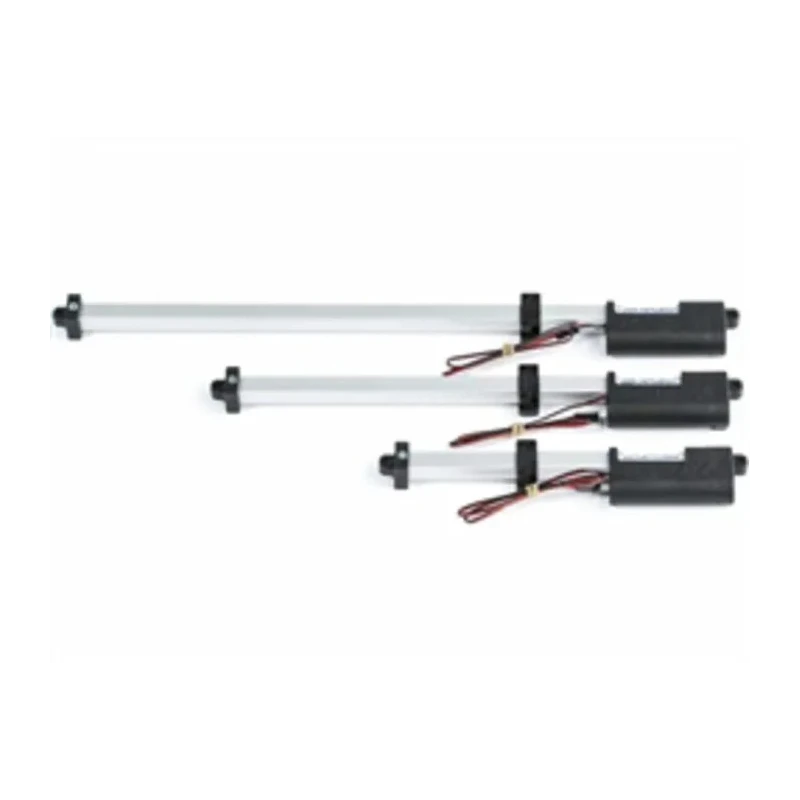

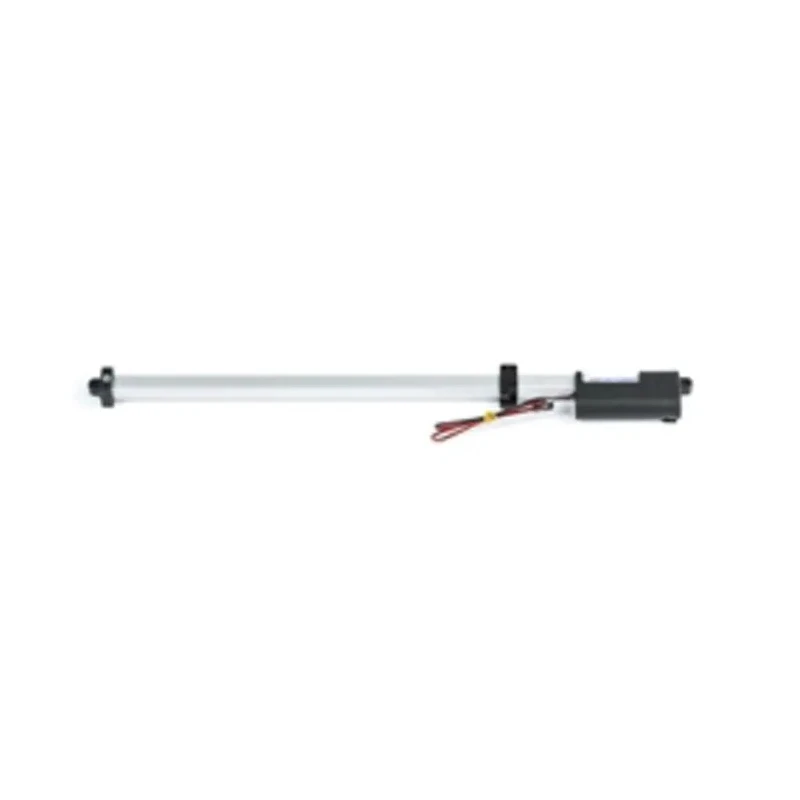

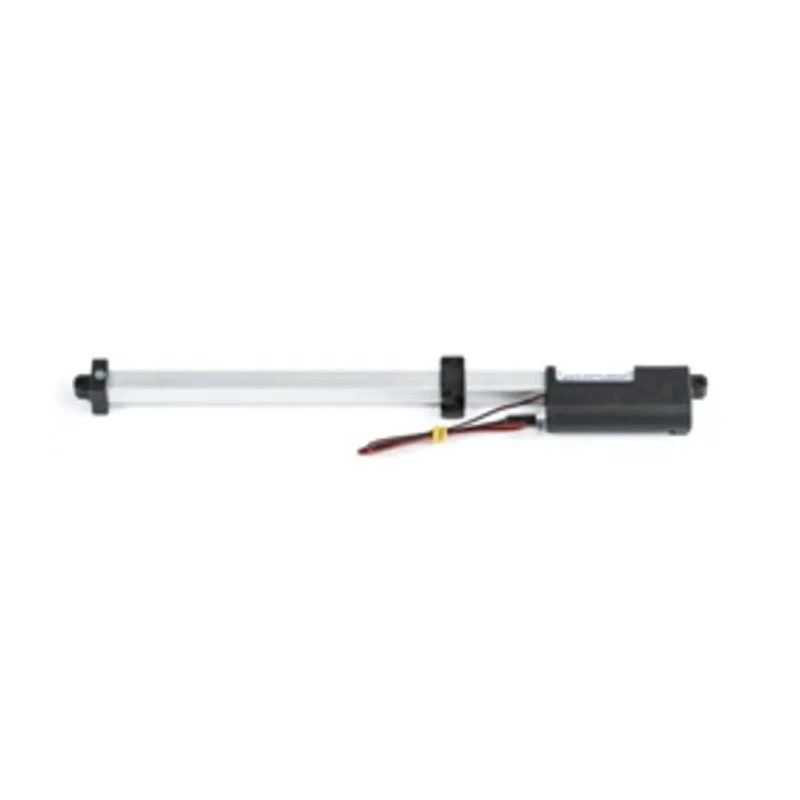

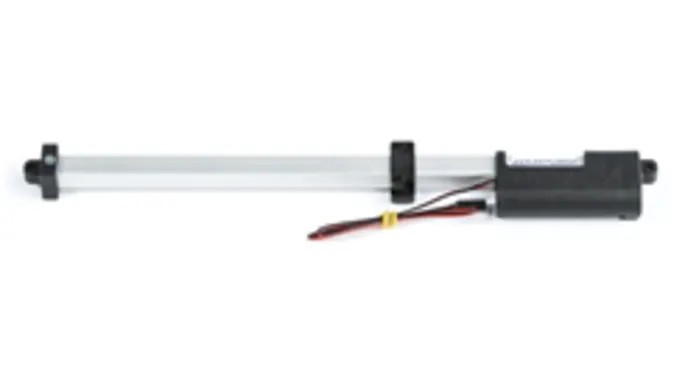

Actuonix Electrical Linear Actuator 100 mm Stroke 12V DC 18 mm/s Speed T16-100-64-12-S

Actuonix T16-100-64-12-S Electrical Linear Actuator provides precise and reliable linear motion with a 100 mm stroke length and 12V DC power supply. This actuator achieves a maximum speed of 18 mm/s and a force capacity of 90N, suitable for a variety of automated and mechanical systems.

The actuator has a compact design with an overall closed length of 209 mm and a lightweight construction of only 116 grams, making it highly adaptable for integration into limited space environments. Its operating temperature range spans from -10°C to 50°C, suitable for diverse industrial and laboratory conditions.

Key components include premium stainless steel bearings, planetary gearbox, and a stainless steel lead screw housed within a glass re-enforced nylon casing, ensuring durability and resistance against corrosion and wear. The M8 x 1.25 piston rod thread facilitates secure mechanical assembly.

This model operates with a 20% duty cycle and includes end of stroke limit switches for simple two-position automation. The unique track actuator design allows for a significantly shorter device length compared to traditional push/pull shaft actuators, enhancing design flexibility.

Maximum force output of 90N for effective linear actuation. Compact 209 mm closed length enables installation in constrained spaces. Durable construction with stainless steel and glass re-enforced nylon housing. Operates on 12V DC power with a speed of 18 mm/s.

Duty cycle suited for intermittent operation at 20%. Functions reliably within a temperature range of -10°C to 50°C. Lightweight at 116 grams for usage in precision instruments. M8 x 1.25 piston rod threading for secure mechanical connections.

Track design provides a shorter form factor compared to shaft actuators. Applicable in industrial, laboratory, mechanical, automation, and fluid power systems.

This Actuonix actuator series is engineered to offer compact, high-performance linear motion solutions for demanding engineering applications. It is ideal for systems requiring precise position control or simple limit switch automation.

Explore EnvMart's range of industrial actuators and Electrical Linear Actuators for advanced mechanical and automation solutions, including models with varied strokes, forces, and speeds tailored to your application needs.
