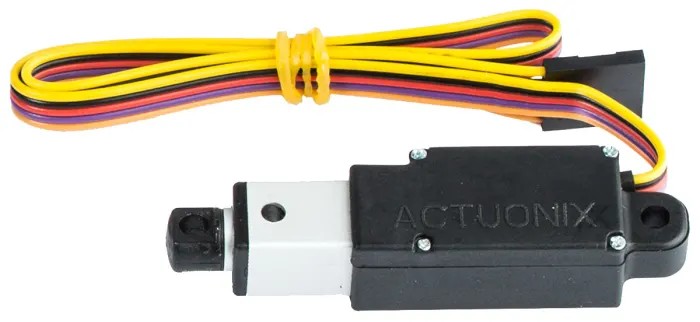

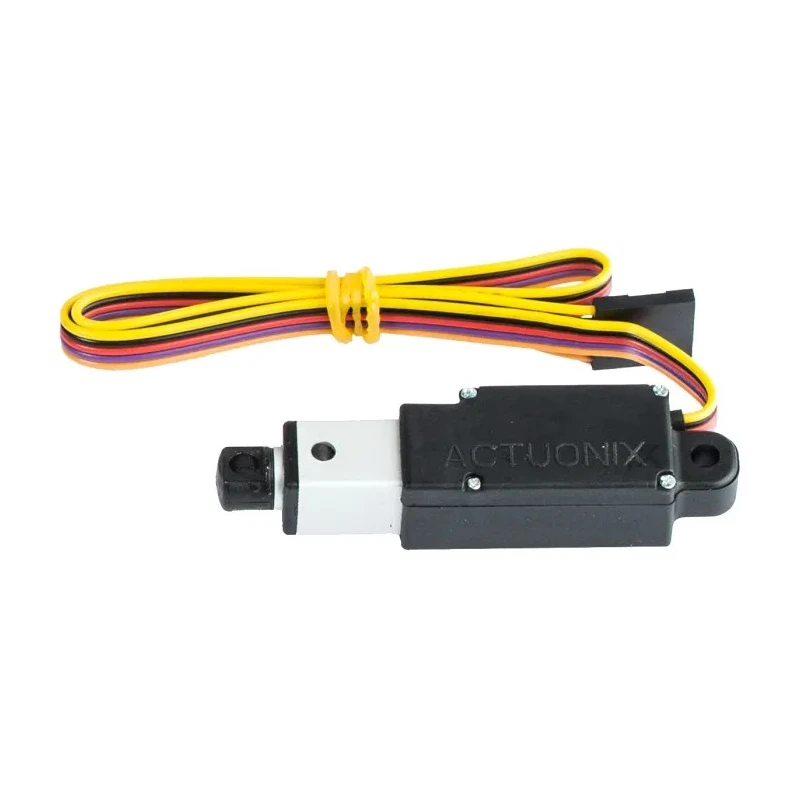

Actuonix Electrical Linear Actuator 10 mm Stroke 12V 6.5mm/s Speed L12-10-210-12-P

Actuonix L12-10-210-12-P electrical linear actuator features a 10 mm stroke length with a low voltage 12V operation and a smooth maximum speed of 6.5 mm per second. Designed with a compact miniature form factor, this actuator is ideal for applications requiring precise and reliable linear motion control.

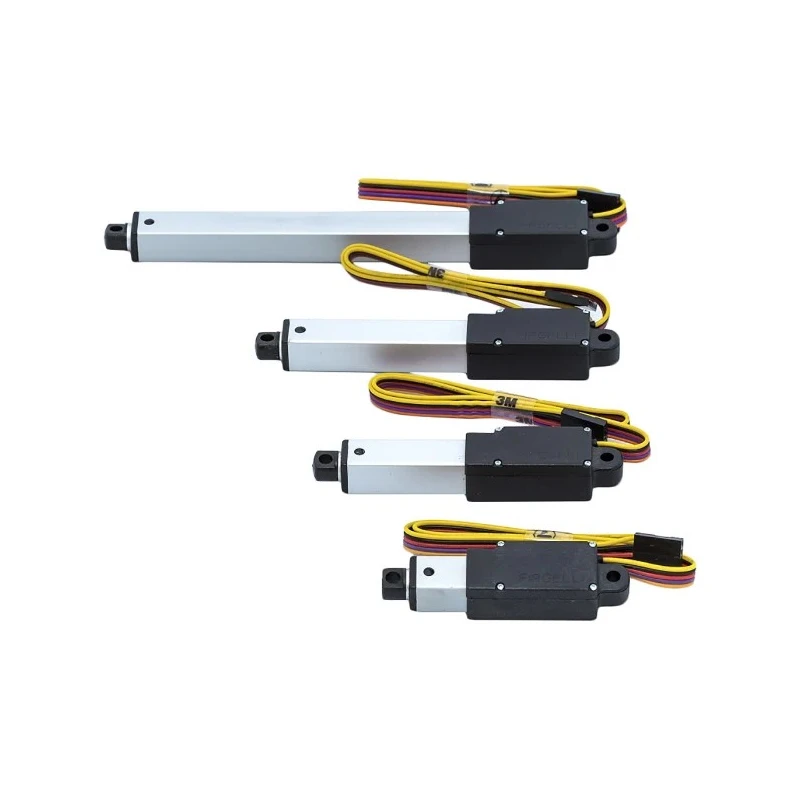

The actuator's axial design incorporates a powerful drive train and a rectangular cross-section to enhance rigidity. It is part of the L12 series, which offers flexible and configurable miniature linear actuators suitable for robotics, industrial automation, consumer appliances, RC vehicles, and automotive applications.

The L12-P model provides analogue potentiometer position feedback, allowing it to function as a linear servo when paired with an external controller. It supports connection to an LAC control board enabling input through analogue 0-5V, 4-20 mA, digital 0-5V PWM signals, or standard RC/USB controls.

Additional product features include a maximum force output of 80N with equal push and pull force, a duty cycle of 20% for optimal operation, and an IP54 rating ensuring protection against dust and water. It operates reliably within a temperature range from -10°C to 50°C.

The actuator measures 152 mm overall length when closed, and weighs 56 grams, making it lightweight and easy to integrate into compact systems. Its robust construction and versatile control options make it an excellent choice for precise linear motion in varied industrial and commercial uses.

Compact miniature size suitable for tight spaces and lightweight designs. Operating voltage of 12V ensuring compatibility with low voltage systems. Provides a maximum force of 80N for efficient push and pull operations. Duty cycle rated at 20% to prevent overheating during operation.

IP54 rated for dust and splash resistance for durability. Operating temperature range from -10°C to 50°C for diverse environmental conditions. Overall closed length of 152 mm facilitates easy mounting and integration. Analogue potentiometer position feedback for precise control.

Ideal for robotics, consumer appliances, automotive, RC vehicles, and industrial automation.

This electrical linear actuator is engineered to meet the demands of modern automated machinery and compact motion control systems. EnvMart invites you to explore our extensive range of Electric Linear Actuators for matching your precise application needs.
