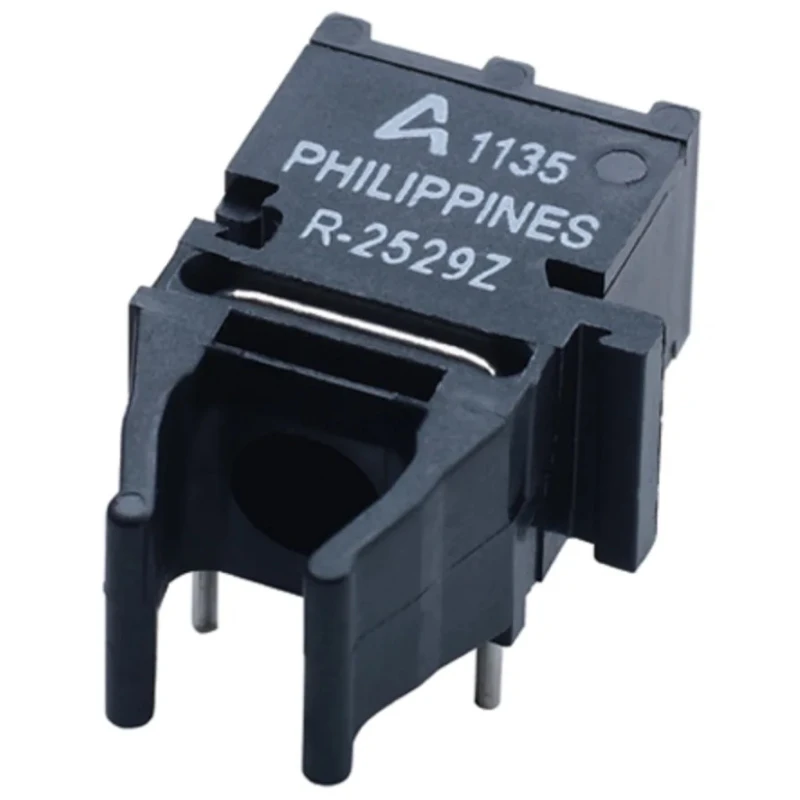

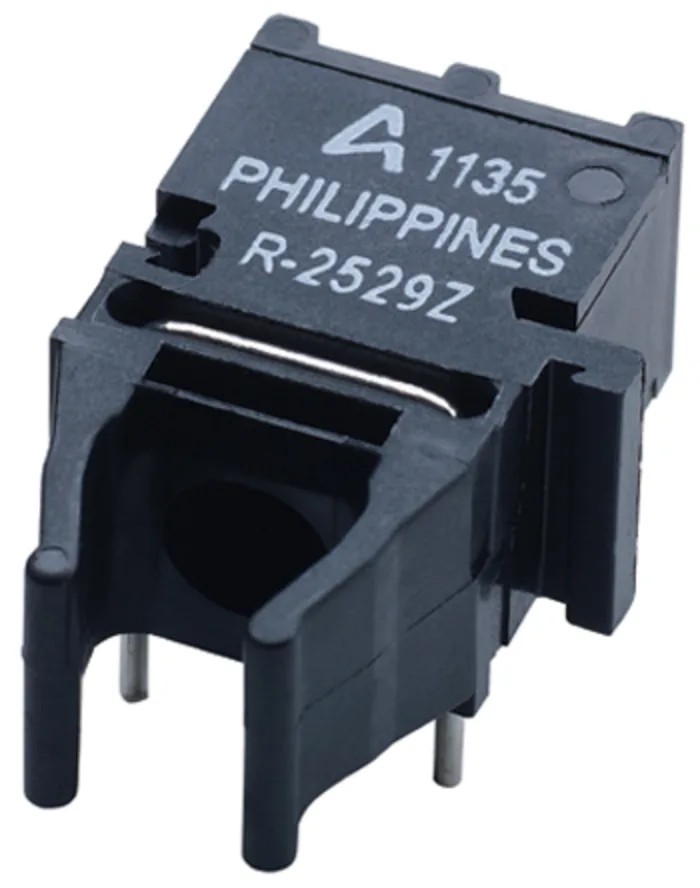

Broadcom Fibre Optic Receiver 50 MBd 685 nm TTL Output Versatile Link AFBR-2529Z

Broadcom AFBR-2529Z is a fibre optic receiver designed for high-speed data transmission at rates up to 50 MBd. Engineered for use with 1 mm polymer optical fibre (POF), it features an integrated PIN photodiode and digitalizing IC which produces a TTL logic compatible output. The device's small form factor, with dimensions of 18.8 mm length, 12.19 mm width, and 7.6 mm height, allows for compact installation.

Featuring a through-hole mount with 4 pins, the AFBR-2529Z is ideal for PCB mounting in demanding electronic assemblies. Its typical rise and fall times of 5 ns enable quick signal response, making it apt for applications requiring precise timing.

Designed for industrial environments, this receiver operates across a wide temperature range from -40 to 85° C, providing robust performance in harsh conditions. The Versatile Link housing supports interlocking installation, optimizing space and ensuring secure positioning within system designs.

Key applications include industrial control systems, factory automation solutions, high voltage isolation, and the elimination of ground loops. The product supports optical data transmission distances up to 50 meters when used with 1 mm plastic optical fibre, facilitating flexible system layouts.

Compatible with TTL logic families providing digital compatible output. Through-hole mount design with 4 pins for easy PCB integration. Compact dimensions suitable for tight assembly spacing. Fast signal response with 5 ns typical rise and fall times.

Wide operating temperature range enables industrial usage. Versatile Link housing for interlocking and space-saving arrangement. Effective for industrial control, automation, and ground loop elimination. Supports transmission distances up to 50 meters with 1 mm POF.

Broadcom’s AFBR-2529Z Fibre Optic Receiver enhances optical communication systems in industrial, laboratory, manufacturing, and commercial environments. Explore more electronic components in the Broadcom range at EnvMart to find compatible and complementary products for your application needs.
