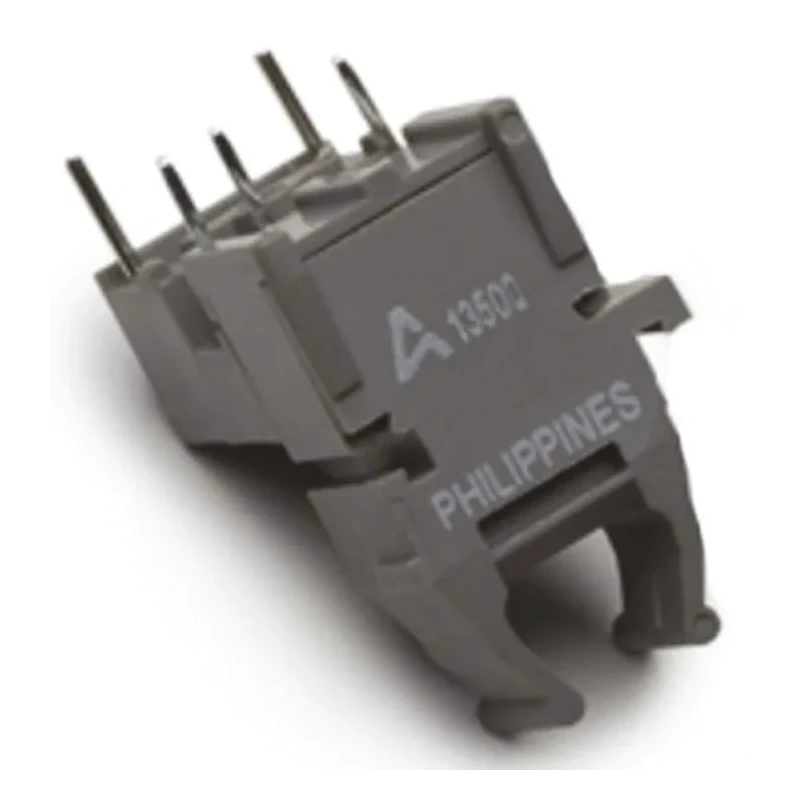

Broadcom Fibre Optic Receiver 50 MBd 685 nm TTL Output Through Hole Mount Square Connector AFBR-2634Z
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Operating Temperature | -40 to 85° C |
| Height | 18.8mm |
| Length | 18.29mm |
| Model | AFBR-2634Z |
| Width | 12.19mm |
| Mount Type | Through Hole |
| Series | Versatile Link |
| Number of Pins | 4 |
| Typical Rise Time | 5ns |
| Maximum Data Rate | 50MBd |
| Output Signal Type | TTL |
| Connector Shape | Square |
| Wavelength of Peak Sensitivity | 685nm |
Key Features
- Compatible with 1 mm plastic optical fibre for up to 50 meters transmission distance.
- Includes integrated photodiode and digitalizing IC with TTL logic output.
- Features through-hole mounting and square connector shape for easy installation.
- Operates reliably in temperatures from -40 to 85 degrees Celsius.
- Typical rise and fall times of 5 nanoseconds enhance signal integrity.
- Packaged in Versatile Link housing that allows interlocking for space-saving design.
- Suitable for industrial control, factory automation, high voltage isolation and ground loop elimination applications.
- New condition product meeting versatile fibre optic receiver requirements.
Product Description
Broadcom AFBR-2634Z is a high-performance fibre optic receiver supporting data rates up to 50 MBd with a peak sensitivity wavelength of 685 nm. Designed for use with 1 mm polymer optical fibre (POF), this device provides a logic-compatible TTL output signal, enabling seamless integration with TTL logic families. Packaged in a compact Versatile Link housing, the AFBR-2634Z features a four-pin through-hole mount configuration and a square connector shape, facilitating easy mounting and connection.
This fibre optic receiver combines an integrated photodiode and digitalising IC to deliver reliable and fast data transmission with typical rise and fall times of 5 nanoseconds. Its dimensions (18.29 mm length, 12.19 mm width, 18.8 mm height) make it suitable for compact industrial designs. The device operates over a wide temperature range from -40 to 85° Celsius, ensuring robust performance under harsh environmental conditions.
Applications for the AFBR-2634Z include industrial control systems, factory automation, high voltage isolation, and elimination of ground loops where optical isolation is critical. The interlocking Versatile Link housing helps minimize required space in assemblies requiring multiple receivers.
Broadcom's AFBR-2634Z fibre optic receiver offers a dependable solution for effectively converting optical signals into TTL electronic signals, accommodating data transmission distances up to 50 meters using 1 mm POF. Its new condition and versatile performance make it a reliable choice for electronic and industrial applications requiring fibre optic components.
Compatible with 1 mm polymer optical fibre for up to 50 m distance. Integrated photodiode and digitalizing IC with TTL output logic. Through hole mount and square connector shape. Operating temperature from -40 to 85° C ensures durability.
Compact dimensions suited for tight installations. Typical rise/fall times of 5 ns enhance signal quality. Packaged in space-saving Versatile Link housing. Used in industrial control and automation systems. Eliminates ground loops and provides high voltage isolation.
Explore more Fibre Optic Receivers and components at EnvMart for industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this model is 50 MBd.
It provides a TTL output signal, which is compatible with TTL logic families.
The peak sensitivity wavelength is 685 nm.
The dimensions are 18.29 mm in length, 12.19 mm in width, and 18.8 mm in height.
It operates reliably in temperatures ranging from -40 to 85° C.
This model supports through-hole mounting.
It is suitable for industrial control systems, factory automation, high voltage isolation, and ground loop elimination applications.
The typical rise time is 5 nanoseconds.
It can transmit data up to 50 meters using 1 mm polymer optical fibre.
The connector shape is square, designed for easy installation.
The country of origin for this model is India.
It belongs to the Versatile Link series.
