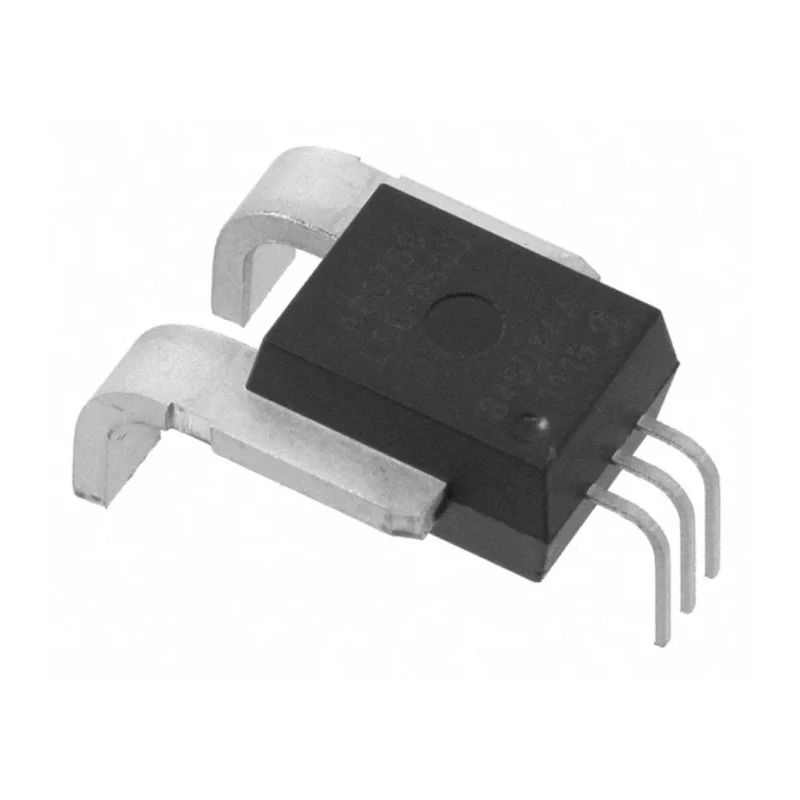

Allegro Microsystems Current Sensor 5-Pin 120kHz Bandwidth PFF Package ACS770LCB-100U-PFF-T

Allegro Microsystems ACS770LCB-100U-PFF-T is a high-precision 5-pin current sensor IC housed in a compact PFF package. It delivers a wide bandwidth of 120kHz, making it ideal for measuring AC and DC currents with high accuracy in various industrial, automotive, and laboratory applications. Its offset voltage of ±6 mV contributes to precise current sensing and enables reliable performance across diverse environments.

This sensor operates within a supply voltage range of 4.5V to 5.5V and accommodates a broad temperature range from -40°C to 150°C, making it suitable for harsh operating conditions commonly encountered in automotive and industrial systems. The through-hole mounting type facilitates straightforward PCB assembly and integration into your designs.

With dimensions of 14 mm length and 7 mm height, the sensor is compact and suitable for space-constrained applications. It complies with RoHS environmental standards and meets automotive standard AEC-Q100, reinforcing its quality and reliability for demanding use cases.

The ACS770 series from Allegro Microsystems features integrated Hall effect technology for galvanic isolation and reduced conductor resistance, which enhances energy efficiency and measurement safety. The product is optimized for applications requiring current sensing from 50A to 200A, including industrial machinery monitoring, power management systems, and automotive circuitry.

Operates with minimum 4.5V and maximum 5.5V supply voltage. Offset voltage of ±6 mV for precise measurement. Bandwidth of 120kHz for AC/DC current sensing. Through-hole mount type with 5 pins for easy PCB installation. Wide operating temperature range from -40°C to 150°C.

Compact PFF package measuring 14 mm by 7 mm. RoHS compliant and meets AEC-Q100 automotive standards.

This Current Sensor IC is ideal for integration into industrial tools, automotive systems, laboratory equipment, and power monitoring solutions. Explore similar high-quality sensors for precision measurement and control at EnvMart.
