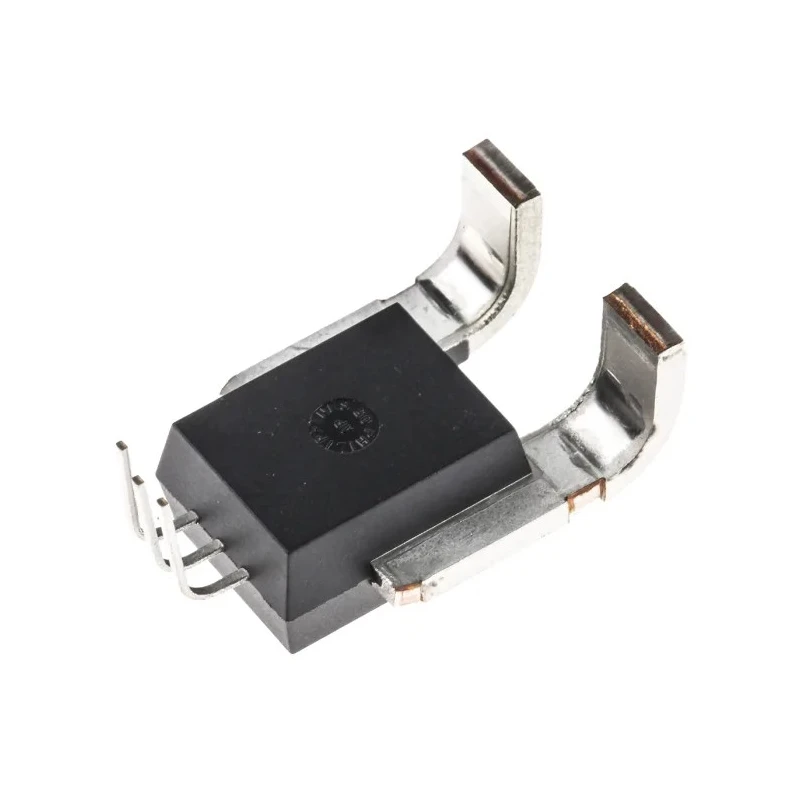

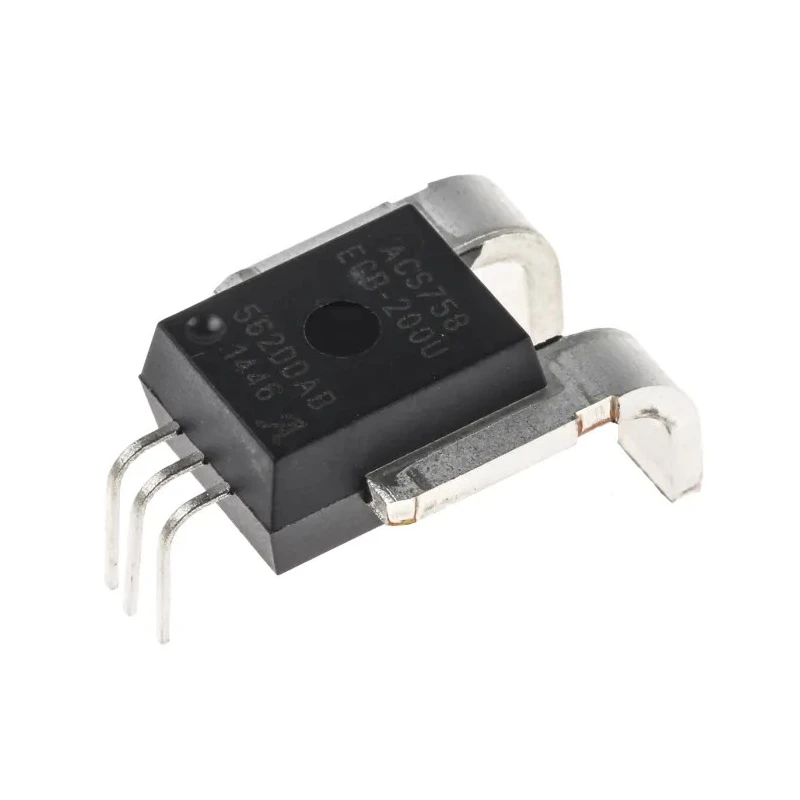

Allegro Microsystems 1 Axis Surface Hall Effect Sensor 3V to 5.5V Supply, 5-Pin CB Package ACS758ECB-200U-PFF-T

Allegro Microsystems ACS758ECB-200U-PFF-T is a 1 axis surface Hall Effect Sensor IC designed to measure current with high accuracy in industrial and automotive applications.

This sensor operates within a supply voltage range from 3 V to 5.5 V and comes in a compact 5-pin CB type surface mount package measuring 10 mm in length, 13 mm in width, and 7 mm in height.

Employing BiCMOS Hall IC technology, it provides a linear magnetic response signal with a sensitivity of 60 mV/A, supporting fast and reliable current measurements with a response time of 4 microseconds and a maximum frequency response of 120 kHz.

The sensor consumes a supply current of just 13.5 mA, ensuring energy-efficient operation even in battery-powered and automotive environments. It meets the automotive standard AEC-Q100, making it suitable for high reliability in harsh conditions.

Operating temperature range spans from -40°C up to 85°C, ensuring durability under various thermal conditions. The device is TÜV America and UL certified, affirming its compliance with international safety and quality standards.

This sensor is ideal for application in industrial tools, automotive systems, power management, and any environment requiring precision current sensing with galvanic isolation provided.

Operates with a minimum supply voltage of 3 V and a maximum of 5.5 V. Features a linear magnetic response suitable for precise current sensing. Has a maximum frequency response up to 120 kHz for fast signal detection. Designed with BiCMOS Hall IC technology for stable and efficient performance.

Compact package dimensions of 10 mm length, 13 mm width, and 7 mm height. Includes automotive grade compliance with AEC-Q100 standard for robust use. Response time is as low as 4 microseconds for high-speed applications.

Supply current consumption is low at 13.5 mA to optimize power use. Suitable for operation in temperatures ranging from -40°C to 85°C. TÜV America and UL certified ensuring quality and safety standards. Explore the Allegro Microsystems sensor range on EnvMart for advanced sensing solutions.
