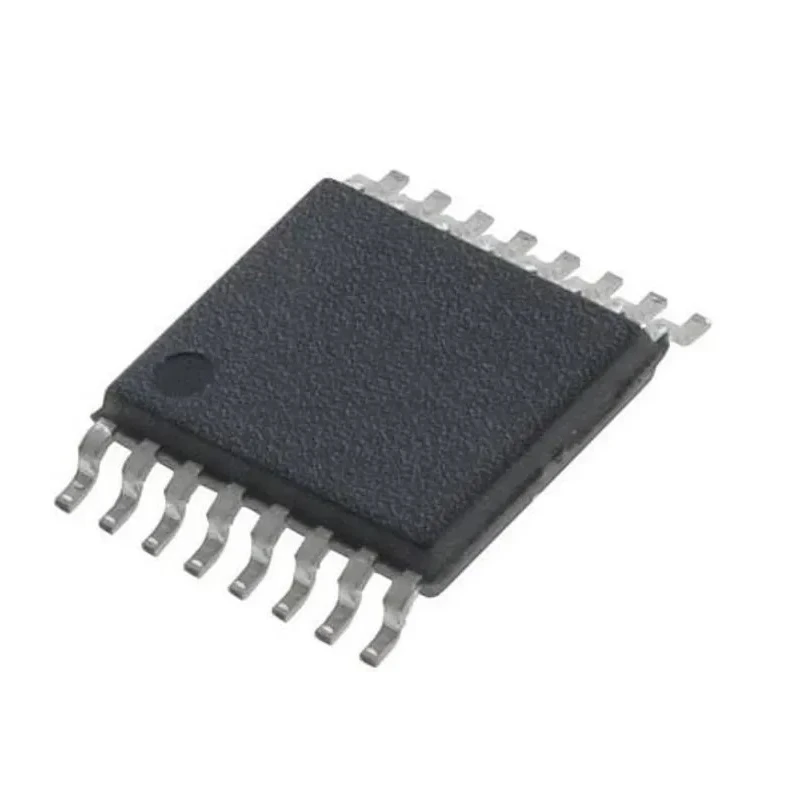

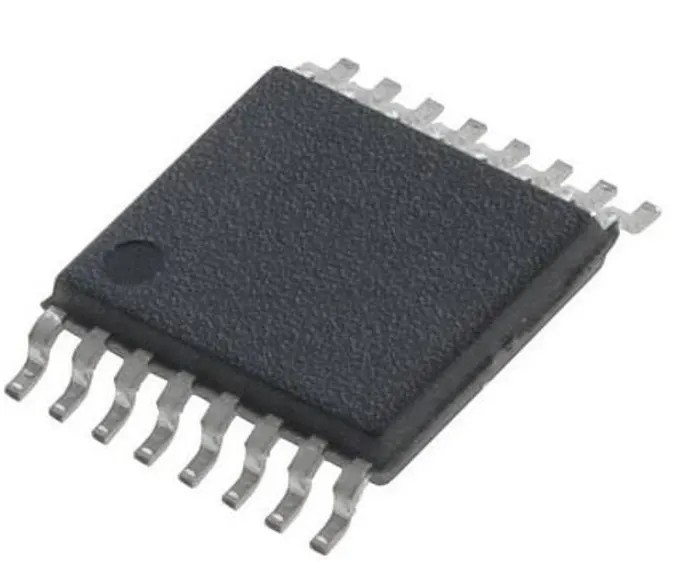

ams OSRAM 1 Axis Surface Hall Effect Sensor, 3.3 V to 5 V Supply, SSI PWM Interface, SSOP 16-Pin Package AS5040-ASST
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | ams OSRAM |
| Response time | 50ms |
| Height | 5.3mm |
| Length | 6.2mm |
| Model | AS5040-ASST |
| Technology | Spinning Current Hall Technology |
| Sensor Type | Position Sensor |
| Width | 5.3mm |
| Mount Type | Surface |
| Series | AS5040 |
| Maximum Operating Temperature | 125°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Number of axis | 1 |
| Interface Type | SSI, PWM |
| Standards/Approvals | AEC-Q100 |
| Pin Count | 16 |
| Automotive Standard | AEC-Q100 Grade 1 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3.3V |
| Supply Current | 21mA |
| Magnetic Type | Bipolar |
| Minimum Frequency Response | 10Hz |
Key Features
- The sensor provides contactless high resolution rotational position measurement over a full turn of 360 degrees.
- Equipped with spinning current Hall technology and bipolar magnetic type.
- Features SSI and PWM interface types for reliable data communication.
- Designed for surface mount with 16 pins in an SSOP package for compact integration.
- Operates within temperature range of -40°C to 125°C, suitable for harsh environments.
- Supply current is low at 21mA, optimizing power efficiency.
- Response time of 50ms ensures timely position output.
- Robust design meeting automotive standard AEC-Q100 Grade 1 for quality and reliability.
Product Description
ams OSRAM AS5040-ASST is a high-precision 1 axis surface Hall Effect Sensor featuring a supply voltage range from 3.3 V to 5 V. This advanced sensor provides contactless angular measurement across a full 360° rotation, making it ideal for position sensing in demanding industrial and automotive applications.
Utilizing spinning current Hall technology combined with bipolar magnetic detection, the device ensures accurate and stable output signals. It offers both SSI and PWM digital interface types, supporting flexible integration into various electronic control systems.
The sensor is housed in a compact SSOP 16-pin package measuring 6.2 mm in length, 5.3 mm in width, and 5.3 mm in height. Its surface mount design allows for seamless PCB assembly within tight spaces. Operating reliably in extreme temperature conditions ranging from -40°C to 125°C, it meets the automotive-grade AEC-Q100 Grade 1 standard, underscoring its durability and reliability in harsh environments.
This sensor draws a low supply current of 21mA, enhancing energy efficiency while providing a 50 ms response time suitable for real-time position detection in motion control systems. The AS5040-ASST is typically employed in automotive systems, industrial automation, robotics, and advanced electronics requiring precise rotary position sensing.
The sensor provides contactless high resolution rotational position measurement over a full turn of 360 degrees. Equipped with spinning current Hall technology and bipolar magnetic type. Features SSI and PWM interface types for reliable data communication.
Designed for surface mount with 16 pins in an SSOP package for compact integration. Operates within temperature range of -40°C to 125°C, suitable for harsh environments. Supply current is low at 21mA, optimizing power efficiency.
Response time of 50ms ensures timely position output. Robust design meeting automotive standard AEC-Q100 Grade 1 for quality and reliability. Dimensions are 6.2mm length, 5.3mm width, and 5.3mm height for space-efficient mounting.
Ideal for motion sensing applications in industrial, automotive, and electronic devices.
For precise and durable position sensing, the ams OSRAM AS5040-ASST sensor is an excellent choice in electronic components, semiconductor sensors, and motion sensor IC applications. Explore EnvMart's range of electronic sensors for your industrial and automotive automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides contactless high-resolution rotational position measurement over a full turn of 360 degrees.
The AS5040-ASST operates within a supply voltage range of 3.3 V to 5 V.
It features both SSI and PWM interface types for reliable data communication.
This sensor operates reliably in extreme temperatures ranging from -40°C to 125°C.
The response time of the AS5040-ASST is 50 ms, ensuring timely position output.
It is housed in a compact SSOP 16-pin package, measuring 6.2 mm in length, 5.3 mm in width, and 5.3 mm in height.
The AS5040-ASST has a low supply current of 21 mA, optimizing power efficiency.
It meets the automotive standard AEC-Q100 Grade 1, which underscores its reliability in harsh environments.
This sensor utilizes spinning current Hall technology combined with bipolar magnetic detection for accurate output signals.
The AS5040-ASST is designed for surface mount, allowing for seamless PCB assembly within tight spaces.
It is typically employed in automotive systems, industrial automation, robotics, and advanced electronics requiring precise rotary position sensing.
The AS5040-ASST uses a bipolar magnetic type for its operation.
