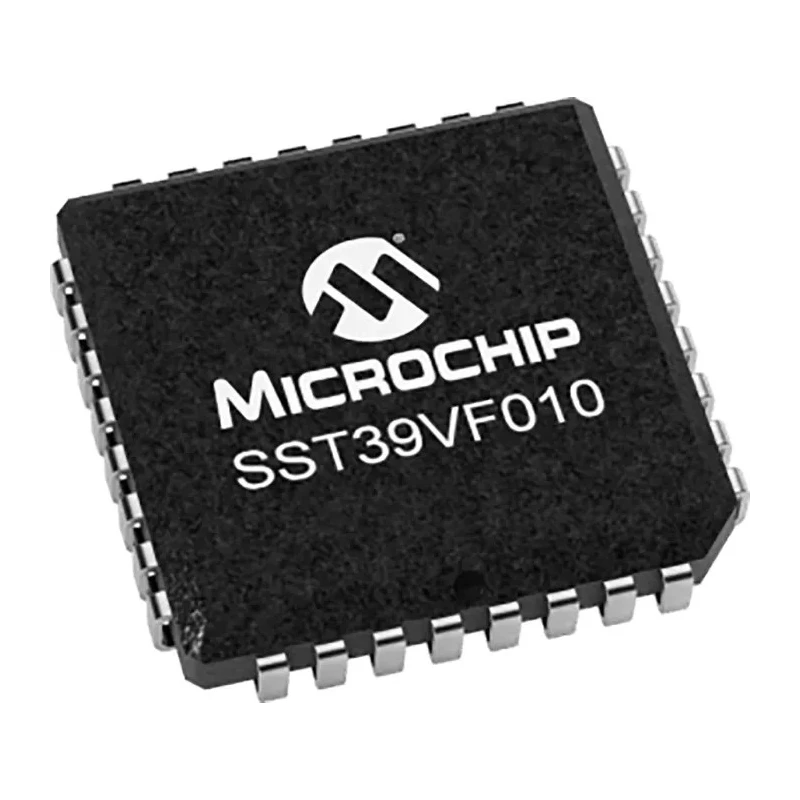

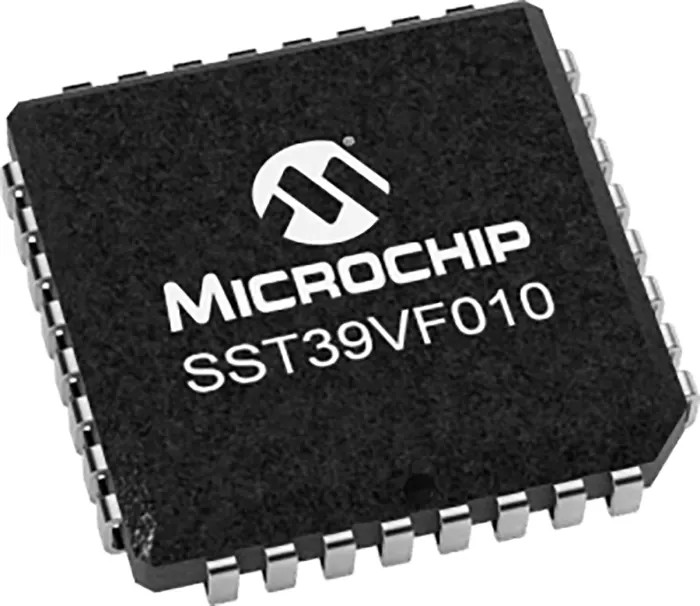

Microchip Split Gate 1 MB Parallel Flash Memory 32-Pin TSOP SST39VF010-70-4I-WHE

Microchip SST39VF010-70-4I-WHE is a high-performance 1 MB Parallel Flash Memory device featuring a split gate cell design and proprietary CMOS SuperFlash technology. Designed for surface mount applications, this 32-pin TSOP package flash memory device offers reliable and fast asynchronous access ideal for industrial and commercial electronics.

The 128k x 8 organisation allows efficient memory management supporting a wide range of embedded system requirements. It operates at low voltages from 2.7V to 3.6V, balancing power efficiency with robust operation. With a supply current of 20 mA, it is optimal for battery-powered and low energy consumption designs.

Key technical strengths include a fast maximum random access time of 70 ns, sector-erase capability, automatic internal write timing with VPP generation, and end-of-write detection via toggle bit and data polling mechanisms. The split gate cell architecture enhances reliability and helps achieve superior manufacturability compared to other flash memory technologies.

This flash memory device withstands operating temperatures from -40°C to 85°C, making it suitable for harsh industrial environments and automotive electronics where durability is essential. The package dimensions - length 8.1 mm, width 12.5 mm, and height 1.05 mm - support compact PCB layouts while ensuring thermal performance.

Produced in the United States, this Microchip SST39VF010-70-4I-WHE meets quality standards required for high-end semiconductor memory components. It is highly compatible with CMOS I/O systems, facilitating seamless integration in various electronic components and power connectors applications.

1 MB memory size with 128k x 8 organisation for efficient data management. Parallel interface type suitable for high-speed asynchronous communication. Surface mount TSOP package with 32 pins ensures compact assembly. Split Gate cell structure enhances reliability and manufacturing quality.

Operates within voltage range 2.7V to 3.6V for low power consumption. Operating temperature range from -40°C to 85°C for industrial environments. Fast maximum random access time of 70 ns improves data retrieval speed. CMOS I/O compatible for easy integration with modern electronics.

Supply current of 20 mA enables energy-efficient applications. Manufactured in the United States ensuring quality and standards compliance.

This Microchip parallel Flash Memory device is widely utilized in industrial control, automotive electronics, embedded systems, and consumer electronic applications where reliable non-volatile memory is critical. Explore more Microchip semiconductor memory solutions on EnvMart for advanced electronic component needs.
