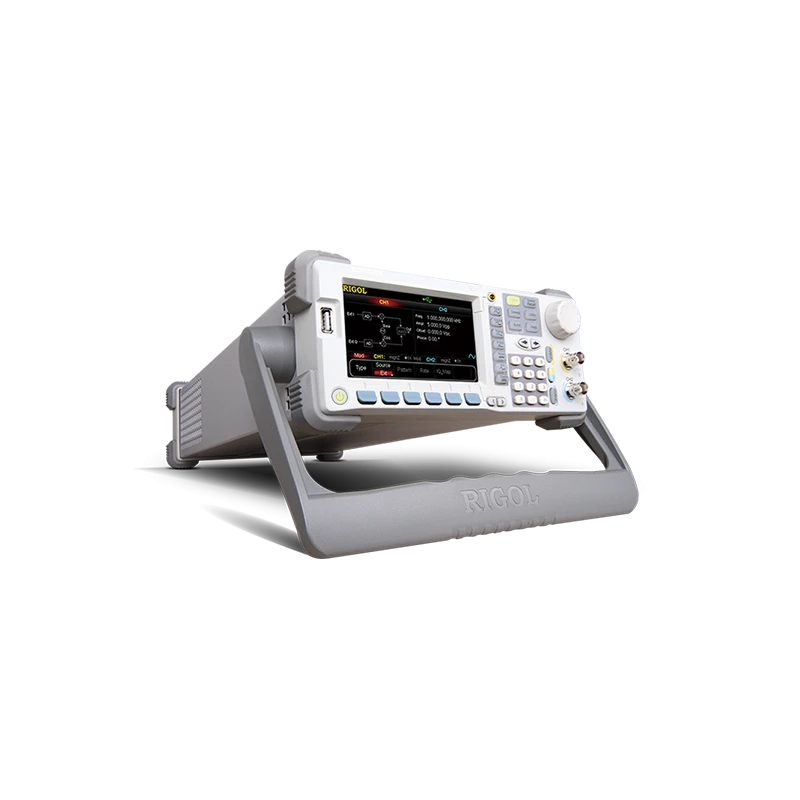

RIGOL Function/Arbitrary Waveform Generator DG5000 Series
Model
Max Sample Rate
Max Output Frequency
Vertical Resolution
Number of Channels
Arbitrary Waveform Length
Specifications
| Display | 4.3-inch TFT LCD (16M color) |
|---|---|
| Brand | Rigol |
| Internal Memory | 1 GB |
| Product Type | Function/Arbitrary Waveform Generator |
| Model | DG5000 Series |
| Output Impedance | 50 Ω |
| Frequency Accuracy | ±1 ppm (18°C to 28°C) |
| Sample Rate | 1 GSa/s |
| Channels | Single/Dual |
| Pulse Width | 20 ns to 1,000,000 s |
| Vertical Resolution | 14 Bits |
| Frequency Resolution | 1 µHz |
| Maximum Output Frequency | 350 MHz |
| Waveform Length (Normal Mode) | 2 to 16 Mpts |
| Waveform Length (Play Mode) | 2 to 128 Mpts |
| Output Amplitude Range (≤100 MHz) | 5 mVpp to 10 Vpp |
| Output Amplitude Range (≤300 MHz) | 5 mVpp to 5 Vpp |
| Output Amplitude Range (≤350 MHz) | 5 mVpp to 2 Vpp |
Key Features
Rigol DG5000 Series Function/Arbitrary Waveform Generator offers advanced signal generation with 1 GSa/s sample rate, 14-bit resolution, and up to 350 MHz output frequency.
- Multi-function generator integrates arbitrary waveforms, IQ modulation, sweep, burst, and pulse capabilities.
- Maximum output frequency up to 350 MHz for high-frequency applications.
- Features single and dual-channel models with channel coupling and advanced modulation types.
- Direct digital synthesis (DDS) for high precision and low distortion signals.
- Supports waveform length up to 128 Mpts and 1 GB internal memory.
- Equipped with 4.3-inch TFT LCD display with 16M color for clear signal visualization.
- Advanced communications via USB Host/Device, LAN, and GPIB interfaces; LXI compliant.
- Amplitude output versatile from 5 mVpp to 10 Vpp (model dependent).
- Precise frequency resolution of 1 µHz and accuracy ±1 ppm (18°C to 28°C).
- Protection features include over-temperature, short-circuit, and overload auto relay disable.
- Comprehensive sweep and frequency hopping with up to 4096 points per sequence.
Product Description
The RIGOL DG5000 Series Function/Arbitrary Waveform Generator, available in DG5071, DG5072, DG5101, DG5102, DG5251, DG5252, DG5351, and DG5352 models, provides accurate and flexible signal generation for laboratories, R&D facilities, industrial testing, electronics manufacturing, and educational environments. The series offers model-specific output frequencies up to 350 MHz, a sampling rate up to 1 GSa/s, and 14-bit vertical resolution for producing stable, precise, and low-distortion test signals.
Available in single- and dual-channel configurations, the RIGOL DG5000 Series uses Direct Digital Synthesis technology to deliver accurate waveform generation across different frequencies. It supports standard waveforms such as sine, square, ramp, pulse, and noise, along with arbitrary waveforms for simulating complex electronic signals and real-world operating conditions.
With arbitrary waveform lengths up to 128 Mpts, the generator supports sinc, exponential, ECG, Gaussian, and other specialised waveform types. These capabilities help engineers perform component testing, sensor simulation, circuit validation, communication-system analysis, and product-development experiments.
- Output-frequency options up to 350 MHz
- Sampling rate up to 1 GSa/s
- High 14-bit vertical resolution
- Single- and dual-channel model configurations
- Direct Digital Synthesis waveform technology
- Sine, square, ramp, pulse, and noise waveform generation
- Arbitrary waveform length up to 128 Mpts
- Sinc, exponential, ECG, Gaussian, and other built-in waveforms
- AM, FM, PM, ASK, FSK, PSK, and PWM modulation
- Optional IQ modulation for advanced communication testing
- 4.3-inch TFT LCD for waveform and parameter viewing
- USB and LAN connectivity
- GPIB support for automated testing environments
- Suitable for benchtop and system-integrated applications
Multiple modulation modes allow users to create complex signals for communication testing, receiver validation, circuit development, and electronic-system troubleshooting. Optional IQ modulation further expands the instrument’s suitability for advanced research and communication applications.

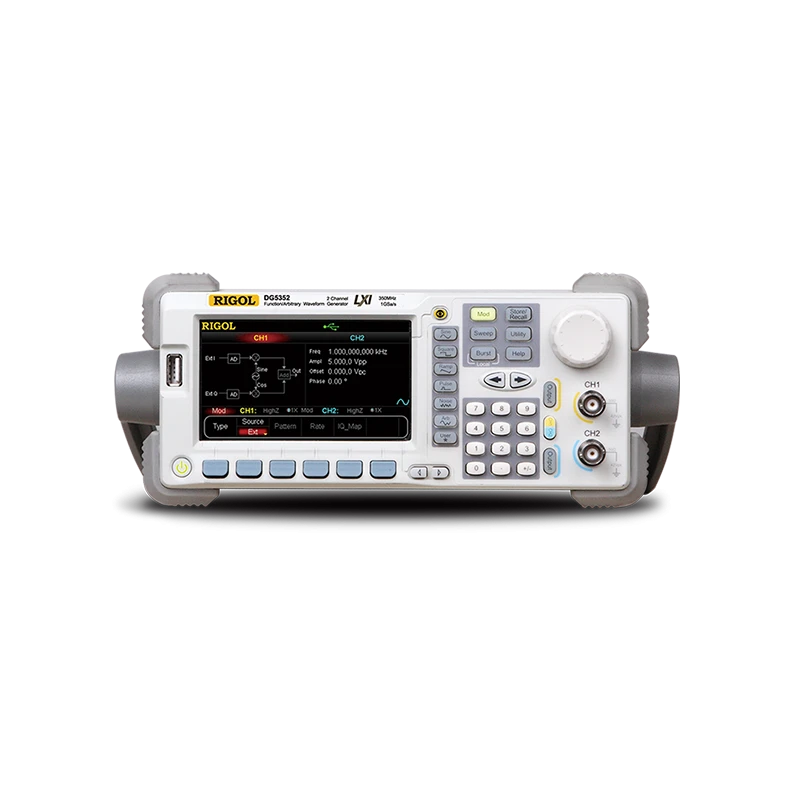

The 4.3-inch TFT LCD and intuitive controls provide convenient access to waveform selection, frequency, amplitude, phase, modulation, and channel settings. USB, LAN, and GPIB connectivity supports integration with computers, laboratory networks, production lines, and automated test and measurement systems.
Typical applications include electronic circuit development, communication testing, power-electronics validation, sensor simulation, component characterisation, production quality control, equipment maintenance, engineering education, and laboratory research.
Available Models: DG5071 | DG5072 | DG5101 | DG5102 | DG5251 | DG5252 | DG5351 | DG5352
Explore more RIGOL function generators, arbitrary waveform generators, signal generators, and electronic test and measurement instruments on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output frequency of the RIGOL DG5000 Series Function/Arbitrary Waveform Generator is up to 350 MHz, making it suitable for high-frequency applications.
The RIGOL DG5000 Series Function/Arbitrary Waveform Generator features a sample rate of up to 1 GSa/s, allowing for precise signal generation.
The vertical resolution of the RIGOL DG5000 Series Function/Arbitrary Waveform Generator is 14 bits, providing high precision in signal output.
The RIGOL DG5000 Series can generate standard waveforms such as sine, square, ramp, pulse, and noise, as well as arbitrary waveforms for more complex signal simulation.
The RIGOL DG5000 Series supports a maximum waveform length of up to 128 Mpts in play mode, allowing for detailed waveform generation.
The RIGOL DG5000 Series Function/Arbitrary Waveform Generator is available in both single-channel and dual-channel configurations to suit various testing needs.
The RIGOL DG5000 Series is equipped with a 4.3-inch TFT LCD display that supports 16 million colors for clear visualization of waveforms and parameters.

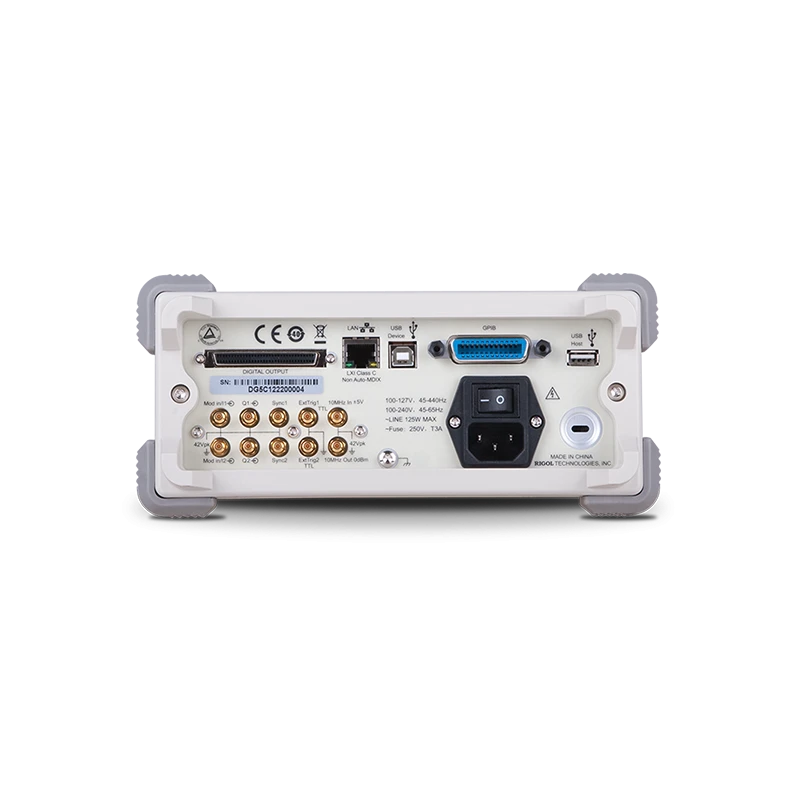

The RIGOL DG5000 Series provides advanced communications via USB Host/Device, LAN, and GPIB interfaces, ensuring compatibility with various testing environments.
