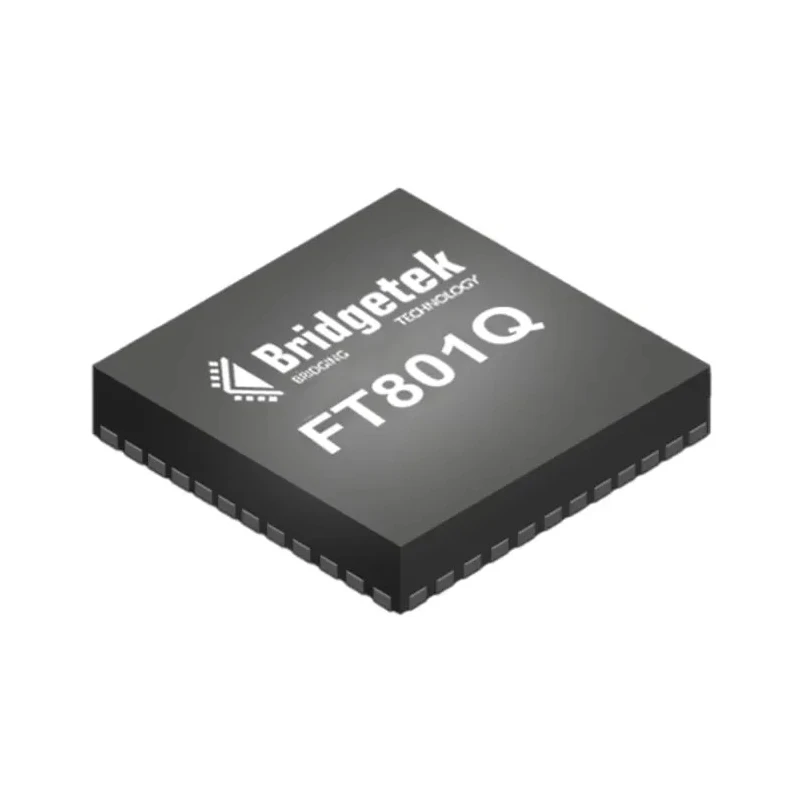

Bridgetek Graphics Controller 48-Pin VQFN 3.3V Surface Mount FT801Q-R

Bridgetek FT801Q-R Graphics Controller is a compact, advanced embedded video engine designed specifically for creating sophisticated Human Machine Interfaces in embedded systems. It utilizes a 48-pin VQFN surface mount package measuring 7mm by 7mm with a height of 0.9mm, ensuring a small PCB footprint ideal for space-constrained industrial and commercial applications.

This graphics controller integrates capabilities for graphic rendering, audio processing, and capacitive touch interfacing, supporting displays with resolutions of WQVGA (480x272) and QVGA (320x240). Its advanced object-oriented architecture allows lower cost MPUs/MCUs to efficiently manage the graphics output, reducing system complexity and cost.

The FT801Q-R operates on a minimum supply voltage of 3.3V and includes a built-in 12MHz crystal oscillator plus a phase-locked loop to provide system clocks at 36MHz or 48MHz, adaptable for diverse application requirements. Its programmable interrupt controller supports seamless integration with host processors, while the clock source can switch between internal and external inputs for enhanced flexibility and accuracy.

Designed for rugged environments, it sustains operation from -40°C up to 85°C, making it ideal for industrial, manufacturing, HVAC, and embedded control applications. The device incorporates low power modes with active current consumption typically at 24mA and sleep current as low as 250µA, facilitating use in portable and battery-operated equipment.

It supports capacitive touch screens with up to five simultaneous touch points, enabling modern user interfaces. Host communication is supported via SPI up to 30MHz and I2C up to 3.4MHz, accommodating a wide range of microcontroller platforms using supply voltages from 1.8V to 3.3V.

Operates with minimal power supply voltage of 3.3V and surface mount package suitable for compact designs. Integrates advanced graphic, audio, and capacitive touch controller functionalities. Supports multiple display resolutions including WQVGA and QVGA with improved 8-bit color rendering.

Features programmable interrupt controller for efficient processor interaction. Equipped with built-in oscillator and clock switching for flexible timing accuracy. Designed for harsh environments with extended temperature and power-saving modes.

Facilitates host communication with SPI and I2C interfaces and adjustable I/O voltages.

This product is ideal for industrial automation, embedded systems requiring human-machine interfaces, audio-visual devices, and portable electronic applications. Its compact size and low power consumption ensure it meets the stringent size and power constraints of modern device design.
