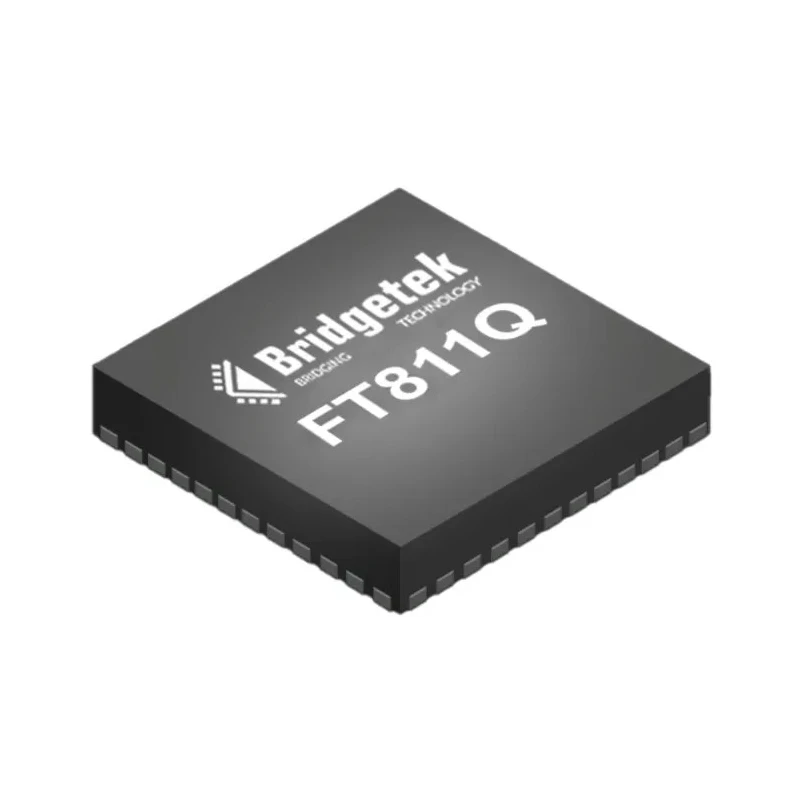

Bridgetek Graphics Controller 60 MHz 800 x 600 pixels SPI 48-Pin VQFN FT811Q-T

Bridgetek FT811Q-T is a high-performance graphics controller designed for embedded video applications requiring 60 MHz maximum frequency and an 800 x 600 pixel (SVGA) resolution. This integrated circuit supports an SPI interface capable of single, dual, or quad mode data lines with clock speeds up to 30MHz, suitable for compact, efficient embedded designs.

The FT811Q-T comes in a 48-pin VQFN surface mount package, measuring 7mm x 0.85mm, providing a small footprint for space-constrained hardware assemblies. It operates across a supply voltage range of 1.8V to 3.3V, ideal for low power consumption designs.

Its embedded video engine (EVE) architecture includes integrated 1MB graphics RAM, eliminating the need for external frame buffer memory. The controller supports video RGB parallel output with 18-bit color depth for this specific model and can handle motion-JPEG encoded AVI video playback, enhancing multimedia capabilities. Audio functionality includes playback of mono 8-bit linear PCM, 4-bit ADPCM, and µ-Law coding formats at sampling rates from 8 kHz to 48 kHz with an integrated digital filter.

The device supports 4-wire resistive and 5-touch capacitive touchscreen interfaces, with hardware recognition of touch tags allowing up to 255 touch points, enabling sophisticated user interface implementations. It also incorporates advanced sketch processing for improved graphics rendering efficiency.

The FT811Q-T is suitable for industrial, laboratory, and embedded applications requiring graphical display and audio interface integration. It complies with Pb-Free and RoHS standards for environmental safety. The device has a wide operating temperature range from -40°C to 85°C, supporting deployment in diverse environmental conditions.

Package contents include 1 unit of the Bridgetek FT811Q-T graphics controller in a tray, ready for insertion into machinery or embedded system boards. Country of origin is Taiwan, Province Of China.

Explore the wide range of dynamic Graphics Controllers in the electronic components category at EnvMart designed for advanced embedded and industrial solutions. Operates with 1.8V to 3.3V supply voltage for flexible applications.

Features 48-pin VQFN surface mount package for compact PCB footprint. Supports SPI data lines in single, dual, or quad mode with clock up to 30MHz. Includes built-in graphics RAM of 1MB eliminating the need for external frame buffer.

Capable of playback of motion-JPEG encoded AVI videos and multiple audio formats. Operates reliably between -40°C to 85°C for industrial applications. Supports touch screen interface with capacitive and resistive options via hardware engine.

Complies with Pb-Free and RoHS standards ensuring environmental safety.
