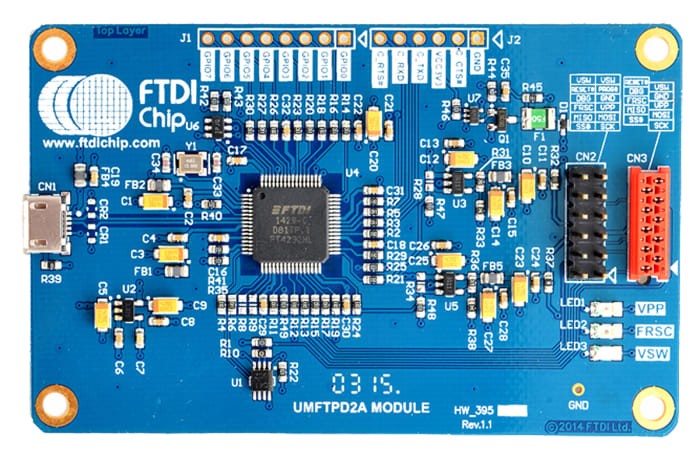

Bridgetek FT90x Chip Programmer USB 2.0 Programming Module for Debugging and EFUSE Burning
Specifications
| Country of Origin | China |
|---|---|
| Brand | Bridgetek |
| Model | FT90x |
| Sub Type | Programming Module |
| Interfaces | USB Micro-B host socket also supplies power |
| Interface Type | USB 2.0 |
| Kit Contents | UMFTPD2A Module |
| For Use With | Debugging and EFUSE burning, FT90x programming |
| Standards/Approvals | Pb-Free (RoHS) |
| Programmer Name | FT90x |
| Channel A | serial UART I/O One-Wire program/debug interface |
| Channel C | serial UART I/O for general purpose use |
| Channel B | MPSSE interface for EFUSE program |
| Channel D | Bit-Bang port GPIO for general purpose use |
Key Features
- Enables USB connection from PC to 1-wire program/debug port of FT90x chip.
- Features FT4232H USB 2.0 Hi-Speed (480Mb/s) to 4 UART converters supporting varied interfaces.
- Includes multiple UART and GPIO channels for programming and general purpose use.
- Provides 2 Micro-MaTch sockets and 2 through-hole pin headers for versatile connectivity.
- Supplies power via USB Micro-B host socket for ease of use.
- Equipped with 3 power supply LEDs for operational status indication.
- Compliant with Pb-Free RoHS environmental standard.
- Kit contains UMFTPD2A programming/debug module and a Micro-MaTch Male to Male 10W ribbon cable.
Product Description
Bridgetek UMFTPD2A FT90x Chip Programmer is a high-quality USB 2.0 programming module designed specifically for programming and debugging the FT90x series of 32-bit microcontrollers. It connects a PC via USB to the 1-wire program/debug port of the FT90x microcontroller, facilitating efficient firmware development and EFUSE burning operations.
The device utilizes the FT4232H USB 2.0 Hi-Speed (480Mb/s) chipset, providing 4 multifunction UART channels. Channel A offers a serial UART I/O and one-wire program/debug interface. Channel B supports MPSSE interface designed for EFUSE programming. Channel C is a serial UART I/O intended for general purpose operations, while Channel D is a Bit-Bang port GPIO that allows flexible general purpose use.
The module features 2 x 5-pin 1.27mm pitch Micro-MaTch sockets and 2 x 6-pin 2.54mm pitch through-hole pin headers, enabling versatile hardware connections. The USB Micro-B host socket serves as both the USB interface and the power supply source for the module. Three power supply LEDs provide clear visual feedback on module operation status.
This programming module adheres to Pb-Free RoHS standards for environmental compliance, ensuring safe and responsible usage. The UMFTPD2A kit includes the programming/debug module itself and is supplied with a Micro-MaTch Male to Male 10W ribbon cable for immediate connectivity.
Widely applicable in industrial, laboratory, and manufacturing environments, this programmer supports embedded system developers, engineers, and technicians involved in FT90x microcontroller programming and debugging. It is optimal for firmware development, testing, EFUSE configuration, and troubleshooting tasks.
Enables USB connection from PC to 1-wire program/debug port of FT90x chip. Features FT4232H USB 2.0 Hi-Speed (480Mb/s) to 4 UART converters supporting varied interfaces. Includes multiple UART and GPIO channels for programming and general purpose use.
Provides 2 Micro-MaTch sockets and 2 through-hole pin headers for versatile connectivity. Supplies power via USB Micro-B host socket for ease of use. Equipped with 3 power supply LEDs for operational status indication. Compliant with Pb-Free RoHS environmental standard.
Kit contains UMFTPD2A programming/debug module and a Micro-MaTch Male to Male 10W ribbon cable. Explore more Chip Programmers and debugging modules in our Electronics & Electricals category at EnvMart for enhanced embedded development capabilities.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The module features a USB 2.0 Hi-Speed interface with a maximum data transfer rate of 480 Mb/s.
It is specifically designed for programming and debugging the FT90x series of 32-bit microcontrollers.
The module supports multiple interfaces including a serial UART I/O, MPSSE interface for EFUSE programming, and a Bit-Bang port GPIO for general purpose use.
It provides four multifunction UART channels for various programming and general purpose operations.
The kit contains the UMFTPD2A programming/debug module and a Micro-MaTch Male to Male 10W ribbon cable for immediate connectivity.
Power is supplied via the USB Micro-B host socket, which also serves as the USB interface.
It is compliant with Pb-Free RoHS environmental standards, ensuring safe and responsible usage.
This programmer is applicable in firmware development, testing, EFUSE configuration, and troubleshooting tasks in industrial and laboratory environments.
Channel A offers a serial UART I/O and a one-wire program/debug interface for programming and debugging tasks.
Channel B supports the MPSSE interface designed specifically for EFUSE programming.
The country of origin for this programming module is China.
It includes 2 Micro-MaTch sockets and 2 through-hole pin headers for versatile connectivity options.
