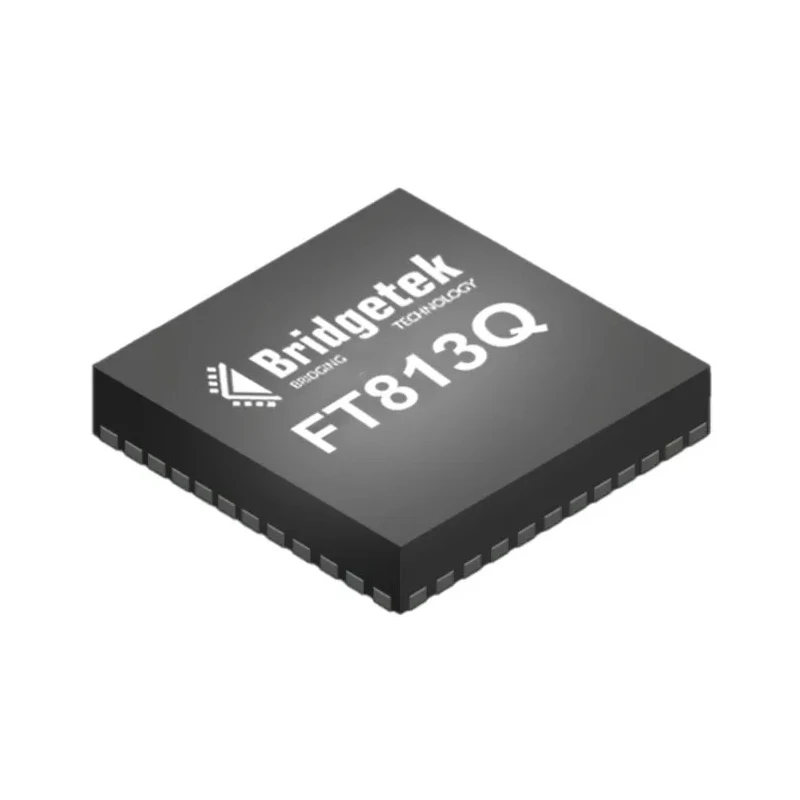

Bridgetek Graphics Controller 60 MHz 800 x 600 pixels SPI 56-Pin VQFN FT813Q-T

Bridgetek FT813Q-T Graphics Controller is a versatile embedded video engine that provides graphics control, audio control, and touch screen interfacing. Operating at a maximum frequency of 60 MHz, it supports display resolutions up to 800 x 600 pixels (SVGA) with SPI interface communication in a compact 56-Pin VQFN surface mount package. This ensures high-quality visual output with efficient processing for embedded applications.

The FT813Q-T belongs to the FT81x series, designed to improve performance and retain pin compatibility with previous generations. It features an integrated 1MB graphics RAM, eliminating the need for a frame buffer and simplifying system design. The chip supports both 18-bit and 24-bit video RGB parallel outputs depending on the model variation.

This graphics controller is capable of interfacing with 4-wire resistive and 5-touch capacitive touch screens, enabling interactive display solutions. Its hardware engine recognizes touch tags and tracks movement with notification up to 255 touch tags, ideal for advanced human-machine interface development.

Supporting SPI data lines in single, dual, or quad mode with clock speeds up to 30 MHz, the FT813Q-T enables fast and flexible communication. It also supports multiple power modes including power down, sleep, and standby states, contributing to energy-efficient designs. The device operates reliably in temperatures ranging from -40°C to 85°C and complies with Pb-Free and RoHS standards.

Audio functionality includes playback of mono 8-bit linear PCM, 4-bit ADPCM, and μ-Law coding formats at sampling frequencies from 8kHz to 48kHz, featuring a built-in digital filter to reduce external filtering complexity. Applications include industrial automation, embedded systems, audio-video control, and touch interface projects.

Operates at maximum 60 MHz frequency ensuring efficient processing. Supports high-quality 800 x 600 pixel resolution displays. Compact 56-Pin VQFN surface mount package for easy PCB integration. Wide operating temperature range from -40°C to 85°C suitable for industrial use.

Integrated 1MB graphics RAM eliminates need for external frame buffer memory. Supports advanced multi-touch capacitive and resistive touch screens. Flexible SPI interface supporting up to 30 MHz clock in multiple modes. Multiple power modes for energy-efficient operation.

Audio playback support with built-in digital filtering. Complies with Pb-Free and RoHS environmental standards.

Bridgetek FT813Q-T is the preferred graphics controller for embedded video applications in industrial automation, manufacturing controls, medical devices, and consumer electronics. Explore more graphics controller products on EnvMart for your embedded display solutions.
