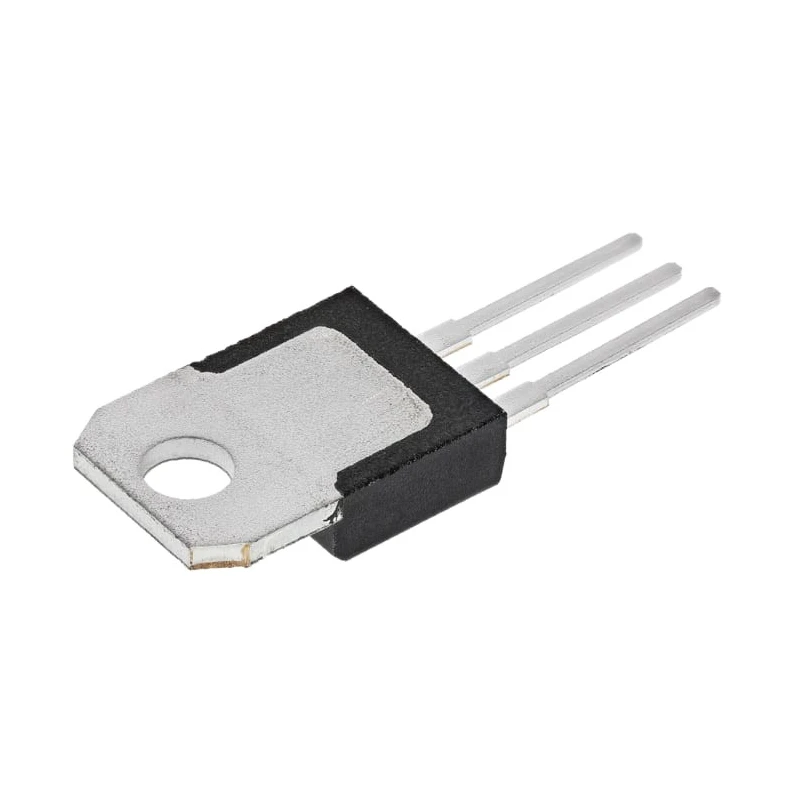

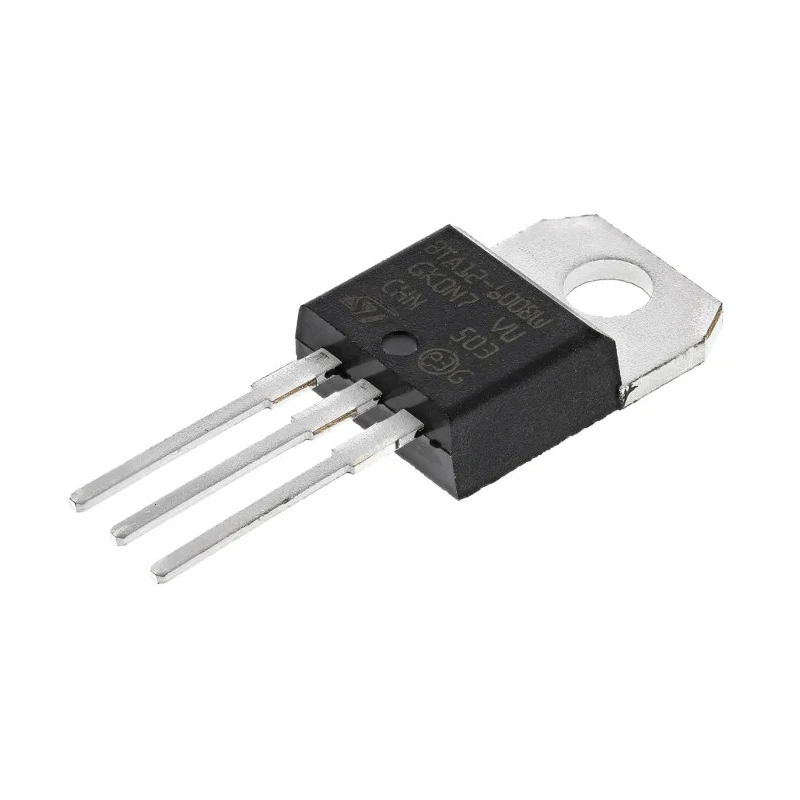

STMicroelectronics Through Hole 3-Pin TRIAC 800 V 12A Rated Average On-State Current Gate Trigger 1.3 V BTA12-600BWRG
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 15.9mm |
| Length | 10.4mm |
| Model | BTA12-600BWRG |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 12A |
| Repetitive Peak Reverse Voltage VDRM | 800V |
| Surge Current Rating | 126A |
| Maximum Gate Trigger Current Igt | 50mA |
| Maximum Holding Current Ih | 50mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.55V |
| Repetitive Peak Off-State Current | 5mA |
| Peak Gate Power Dissipation | 1W |
| STMicroelectronics Through Hole, 3-pin, TRIAC, 600V, Gate Trigger 1.3V 600VBrand | STMicroelectronics |
Key Features
- Features a TO-220 package for robust mounting.
- Supports a repetitive peak reverse voltage of 800 V.
- Maximum gate trigger current is 50 mA and gate trigger voltage is 1.3 V.
- Surge current rating is 126 A for high transient performance.
- Operates within a temperature range of -40°C to 125°C.
- Designed for single configuration switching applications.
- Maximum holding current is 50 mA with peak on-state voltage of 1.55 V.
- Repetitive peak off-state current is limited to 5 mA for efficiency.
Product Description
STMicroelectronics BTA12-600BWRG is a high-performance through-hole TRIAC designed for efficient AC power control in industrial, commercial, and electronic applications. It features a three-pin TO-220 package suitable for rugged mounting environments.
This TRIAC supports a rated average on-state current of 12A, with a maximum repetitive peak reverse voltage of 800 V, ensuring reliability in various power switching tasks. The gate trigger voltage is set at 1.3 V with a maximum gate trigger current of 50 mA, providing precise control and minimal power dissipation at the gate.
The device handles surge currents up to 126 A, accommodating transient loads and enhancing robustness. Operating temperature ranges from -40°C to 125°C, making it suitable for demanding industrial environments. Its compact form factor with a height of 15.9 mm and length of 10.4 mm optimizes PCB space utilization.
Additional electrical parameters include a maximum holding current of 50 mA and a peak on-state voltage of 1.55 V, contributing to efficient power control. The repetitive peak off-state current is rated at 5 mA, ensuring minimal leakage currents when off.
Features a TO-220 package for mounting stability. Supports full industrial temperature range operation. High surge current capacity at 126 A. Compact dimensions for space-saving PCB design. Reliable gate triggering with low voltage and current.
Designed for single configuration triac switching. Low off-state leakage current for efficiency. Utilized in power control, lighting, and motor control applications. Industrial-grade semiconductor device with long operational life.
Ideal for electronic power control, motor speed regulation, lighting dimming, and industrial switching applications. This TRIAC is an essential component in discrete semiconductor and power electronics domains.
Explore more specialized industrial and electronic components like TRIACs on EnvMart to enhance your projects with quality products from trusted brands like STMicroelectronics.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current for the BTA12-600BWRG is 12A.
This model supports a maximum repetitive peak reverse voltage of 800 V.
The surge current rating for the BTA12-600BWRG is 126 A, allowing it to handle high transient loads.
The maximum gate trigger voltage is 1.3 V, and the maximum gate trigger current is 50 mA.
It operates within a temperature range of -40°C to 125°C.
The dimensions are 15.9 mm in height and 10.4 mm in length.
It features a TO-220 package type, which is suitable for robust mounting.
The maximum holding current is 50 mA.
The peak on-state voltage is rated at 1.55 V.
The repetitive peak off-state current is limited to 5 mA.
This model is designed for single configuration switching applications.
It is suitable for applications in power control, lighting, and motor control.
