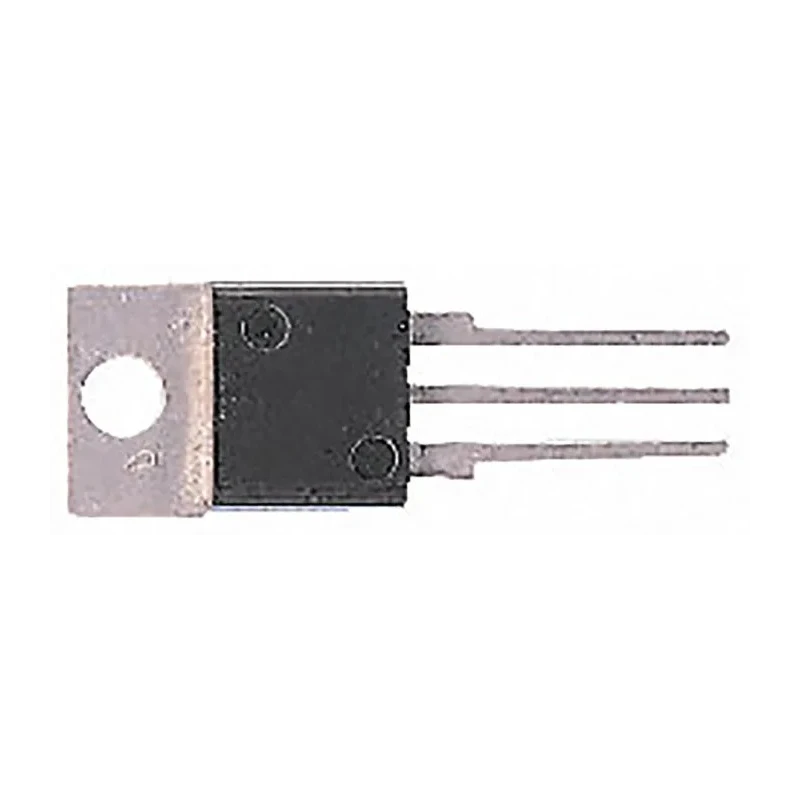

STMicroelectronics Through Hole 3-Pin TRIAC 6A 800V Gate Trigger 1.3V BTA06-600CRG
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 15.9mm |
| Length | 10.4mm |
| Model | BTA06-600CRG |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 6A |
| Repetitive Peak Reverse Voltage VDRM | 800V |
| Surge Current Rating | 63A |
| Maximum Gate Trigger Current Igt | 25mA |
| Maximum Holding Current Ih | 25mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.55V |
| Repetitive Peak Off-State Current | 5mA |
| Peak Gate Power Dissipation | 1W |
Key Features
- This TRIAC supports single configuration suitable for AC switching applications.
- It has a gate trigger voltage of 1.3V and gate trigger current of 25mA.
- Constructed in a TO-220 package for easy through-hole mounting.
- Operational temperature ranges from -40°C up to 125°C for reliable performance.
- Surge current rating is 63A for transient overload capability.
- Peak on-state voltage is 1.55V minimizing power losses.
- Repetitive peak off-state current is 5mA contributing to low leakage currents.
Product Description
STMicroelectronics BTA06-600CRG is a high-performance through hole TRIAC designed for AC power control. Featuring a 3-pin TO-220 package form factor, it delivers a rated average on-state current of 6A and is capable of withstanding a repetitive peak reverse voltage of 800V. This device operates reliably across a temperature range of -40°C to 125°C, making it suitable for industrial, consumer electronics, and power management applications.
This TRIAC offers a maximum gate trigger voltage of 1.3V and gate trigger current of 25mA, enabling efficient triggering in AC switching circuits. Its surge current rating of 63A ensures transient overload handling, essential in inductive load switching scenarios. With a peak on-state voltage of 1.55V, it maintains low conduction losses, enhancing system efficiency.
Encased in a TO-220 package, the device measures 15.9mm in height and 10.4mm in length, facilitating easy through-hole PCB mounting and integration. The repetitive peak off-state current of 5mA ensures minimal leakage, contributing to lower standby power consumption. The TRIAC's robust design makes it an excellent choice for applications in industrial automation, HVAC controls, and lighting systems.
This 3-pin TRIAC provides reliable switching control for AC power applications. Robust surge current handling capability supports inductive load switching. Wide operating temperature range ensures performance in harsh environments.
Compact TO-220 package allows straightforward PCB assembly and cooling. Low peak on-state voltage reduces power dissipation in conducting state. Suitable for industrial, laboratory, and commercial power control systems. Ideal for use in motor speed controls, light dimming, and heater controls.
For engineers and designers seeking dependable AC switching components, the BTA06-600CRG TRIAC from STMicroelectronics balances performance, durability, and ease of integration effectively. Explore our Electronics & Electricals section for more advanced semiconductor devices and power control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current for this TRIAC is 6A.
It can withstand a maximum repetitive peak reverse voltage of 800V.
The maximum gate trigger voltage for this model is 1.3V.
The surge current rating is 63A, allowing it to handle transient overloads effectively.
The TO-220 package measures 15.9mm in height and 10.4mm in length.
The operational temperature range is from -40°C to 125°C.
This model supports through-hole mounting.
The peak on-state voltage is 1.55V, which helps minimize power losses.
The maximum gate trigger current is 25mA.
The repetitive peak off-state current is 5mA, contributing to low leakage currents.
This TRIAC is suitable for applications in industrial automation, HVAC controls, and lighting systems.
The country of origin for this TRIAC is India.
