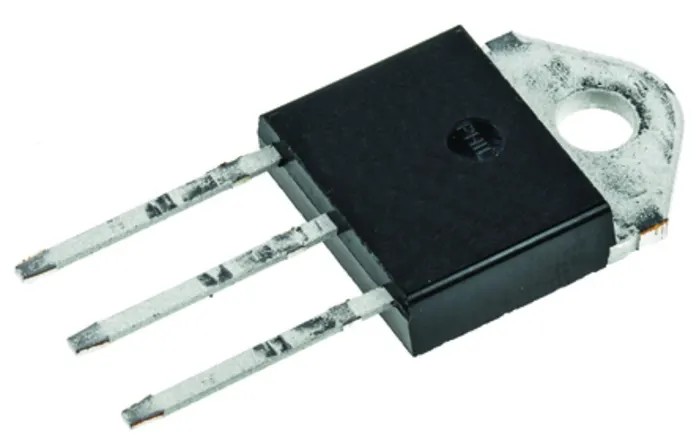

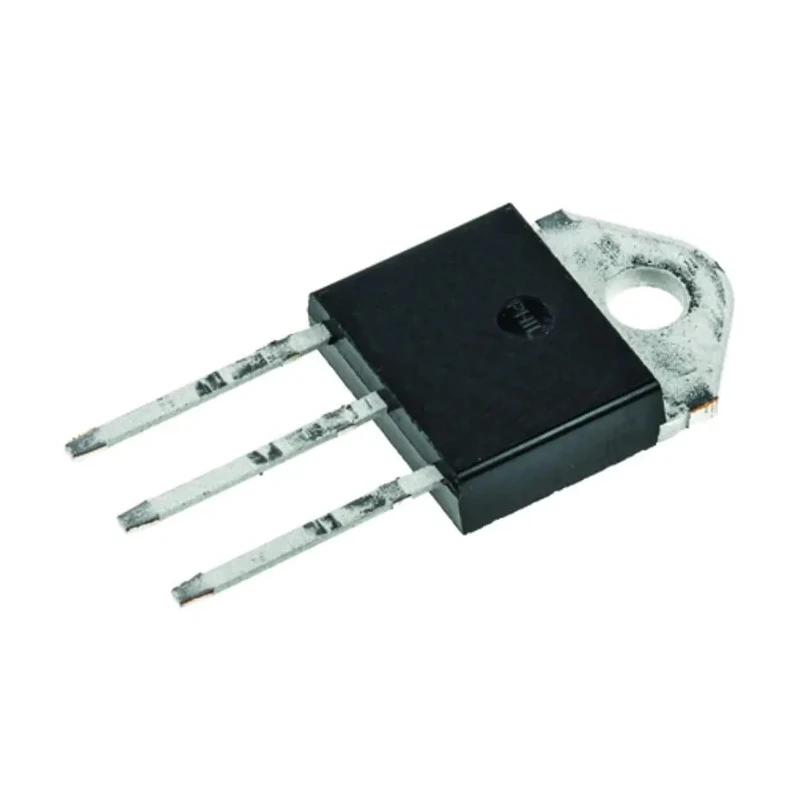

STMicroelectronics Through Hole 3-Pin TRIAC 800 V Gate Trigger 1.3 V BTA26-800BWRG

STMicroelectronics BTA26-800BWRG is a high-performance TRIAC designed for power control applications within industrial and commercial electronics.

This 3-pin TRIAC is a through-hole type device housed in a TOP package, engineered to handle a continuous average on-state current (Irms) of 25 amperes and withstand a repetitive peak reverse voltage of 800 volts. The device offers robust surge current capacity of 250 amperes, suitable for high transient load conditions commonly encountered in power regulation and switching circuits.

The TRIAC triggers with a gate voltage as low as 1.3 V and gate current of 50 mA, providing efficient gate activation. Its maximum holding current of 75 mA supports stable conduction once turned on, while the peak gate power dissipation of 1 watt underlines its ability to manage switching losses effectively.

Operating temperature range from -40°C to +125°C ensures reliable performance under demanding industrial environments. The compact form factor with 15.5 mm length and 21.1 mm height facilitates straightforward PCB integration in power electronics assemblies.

Compliant with RoHS standards, this TRIAC offers an environmentally friendly solution without compromising on quality or reliability. Rated for a surge current of 250A allowing for high transient loads. Features a gate trigger voltage of 1.3 V and maximum gate trigger current of 50 mA.

Supports operation in temperatures from -40°C to 125°C. Compact dimensions with 15.5 mm length and 21.1 mm height. Utilizes a TOP package with a single configuration for robust mounting. Designed in compliance with RoHS standards for environmental safety.

Peak gate power dissipation rated at 1 W ensuring reliable switching performance. Maximum holding current is 75 mA, optimizing triggering stability.

This TRIAC is ideal for use in industrial power control, lighting dimmers, motor speed controls, and other applications requiring efficient AC power switching. Its robust electrical characteristics ensure durability in harsh operating conditions within manufacturing, HVAC, and electrical equipment.
