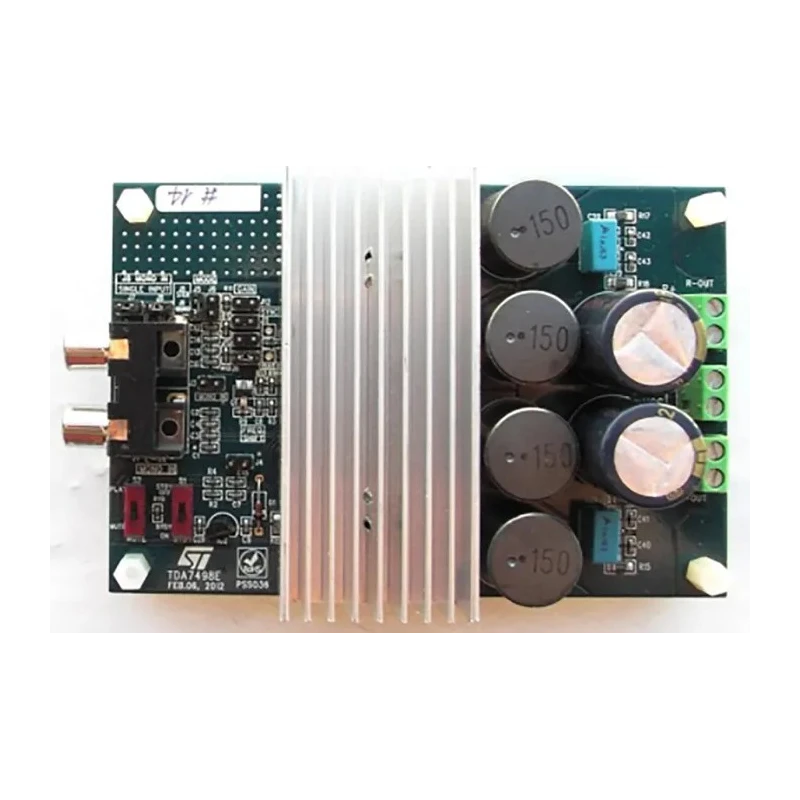

STMicroelectronics Dual BTL Class-D Audio Amplifier Demonstration Board STEVAL-CCA044V1
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-CCA044V1 |
| For Use With | 160 W+160 W Dual BTL Class-D Audio Amplifier |
| Standards/Approvals | RoHS Compliant |
| Kit Classification | Demonstration Board |
| Featured Device | TDA7498E |
| Kit Name | Dual BTL Class-D Audio Amplifier Demonstration Board |
| Analogue Function | Audio Amplifier |
Key Features
- The demonstration board is designed for the TDA7498E high power amplifier device.
- The PSSO36 slug-down package ensures effective heat dissipation without the need for a heatsink.
- Jumpers allow configuration for single-ended or differential input and fixed gain settings.
- Microswitches provide easy enable/disable of standby and mute functions.
- The board is RoHS compliant and manufactured in Italy.
- Ideal for evaluation and development of high power audio amplifier applications.
- Designed specifically for 160 W+160 W dual BTL Class-D amplification.
- Enables comprehensive testing of amplifier features and operational modes.
Product Description
STMicroelectronics STEVAL-CCA044V1 Dual BTL Class-D Audio Amplifier Demonstration Board features the TDA7498E, a high power 160 W+160 W dual bridge-tied load (BTL) Class-D amplifier. The device utilizes an efficient PSSO36 slug-down package that allows the demonstration board to dissipate heat effectively without requiring a heatsink, enhancing reliability and compactness.
The demonstration board includes jumpers for flexible configuration, enabling users to test all functionalities such as single-ended or differential input modes and fixed gain settings. Additionally, microswitches are provided to conveniently enable standby and mute functions, facilitating ease of control during development and testing.
This audio amplifier development kit is RoHS compliant, adhering to environmental standards, and is manufactured in Italy, ensuring quality and compliance. The STEVAL-CCA044V1 board is ideal for industrial and commercial audio applications where high power and efficient audio amplification are required.
It is well-suited for use in consumer audio systems, professional audio equipment development, and educational or laboratory evaluation environments. The versatility and high-performance characteristics make it an essential tool for engineers working on Class-D audio amplifier projects.
The board is designed specifically for the TDA7498E dual BTL Class-D amplifier device. Engineered for heat dissipation without additional heatsinks, improving design simplicity. Configurable input and gain settings enable comprehensive feature testing.
Standby and mute functions add operational control flexibility. RoHS compliance ensures adherence to strict environmental regulations. Explore more high-quality development tools and evaluation boards in the Electronics & Electricals category at EnvMart.
Explore more products in our Audio Amplifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is designed for a power output of 160 W+160 W, utilizing a dual bridge-tied load (BTL) Class-D amplifier configuration.
The demonstration board features the TDA7498E high power amplifier device, which is integral to its operation.
Yes, this board is RoHS compliant, adhering to strict environmental regulations.
It is manufactured in Italy, ensuring quality and compliance with relevant standards.
The board includes jumpers for configuring single-ended or differential input modes and fixed gain settings, allowing for flexible testing.
Microswitches on the board allow for easy enabling and disabling of standby and mute functions, providing operational control flexibility.
It is ideal for industrial and commercial audio applications, including consumer audio systems, professional audio equipment development, and educational evaluation environments.
This product is classified as a demonstration board, specifically designed for evaluating and developing high power audio amplifier applications.
The board utilizes a PSSO36 slug-down package that allows for effective heat dissipation without the need for an additional heatsink, enhancing reliability.
The primary function of this model is to serve as an audio amplifier demonstration board for evaluating the performance of high power Class-D amplifiers.
It supports a dual BTL Class-D audio amplifier configuration, specifically designed for high power applications.
RoHS compliance signifies that the board adheres to regulations restricting hazardous substances, ensuring it is environmentally friendly and safe for use.
