STMicroelectronics Dual BTL Class-D Audio Amplifier Demonstration Board STEVAL-CCA042V1
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-CCA042V1 |
| For Use With | TDA7491HV High-Power Dual BTL Class-D Audio Amplifier |
| Standards/Approvals | RoHS Compliant |
| Kit Classification | Demonstration Board |
| Featured Device | TDA7491HV |
| Kit Name | Dual BTL Class-D Audio Amplifier Demonstration Board |
| Analogue Function | Audio Amplifier |
Key Features
- The board integrates the TDA7491HV high-power dual BTL class-D audio amplifier.
- It operates with a wide voltage range of 5 to 18 V single supply.
- Delivers up to 20 W + 20 W continuous output power at 18 V with 8 Ω load and 10% THD.
- Includes microswitches for standby and mute functions to enhance control.
- Supports differential inputs to minimize common-mode noise and filterless operation.
- Provides short-circuit and thermal overload protection for reliability.
- Jumpers allow configuration to test single-ended or differential input modes.
- Externally synchronizable amplifier design and high efficiency with 90% typical.
Product Description

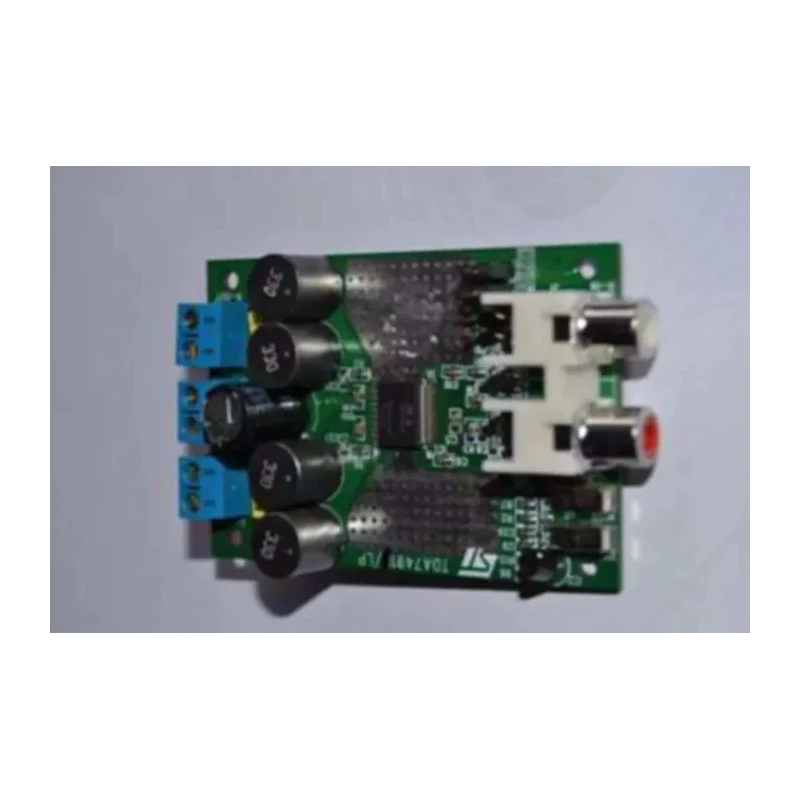

STMicroelectronics STEVAL-CCA042V1 is a Dual BTL Class-D Audio Amplifier Demonstration Board designed around the TDA7491HV high-power audio amplifier. It supports a wide single-supply voltage range from 5 V up to 18 V and delivers up to 20 W per channel continuous power output with an 8 Ω load at 10% total harmonic distortion (THD), demonstrating high efficiency up to 90% typical.
The device is packaged in a PSSO36 slug-down package allowing heat dissipation without needing a heatsink. The board includes jumpers to configure the amplifier for either single-ended or differential input modes and selectable gain settings of 20 dB, 26 dB, 30 dB, and 32 dB, providing flexibility for different application requirements.
Microswitches on the board enable standby and mute features for power management and audio signal control. Features like differential inputs help minimize common-mode noise, and the amplifier operates filterless, simplifying the external circuitry.
Protection functions including short-circuit and thermal overload safeguards are integrated to ensure robust operation under various conditions. The amplifier can be externally synchronized for applications requiring multiple amplifier channels to operate in sync.
This evaluation board is ideal for engineers and developers in audio electronics design, prototyping, and educational applications, offering a ready-to-use platform for evaluating the TDA7491HV device performance.
The board integrates the TDA7491HV high-power dual BTL class-D audio amplifier. Wide single-supply operation range from 5 V to 18 V. High efficiency with typical 90% power conversion. Selectable gain settings to adapt to different input levels.
Standby and mute functions enabled through microswitches. Filterless design reduces component count and footprint. Built-in short-circuit and thermal overload protection. Configurable input mode with jumpers for signal flexibility.
Perfect for industrial, educational, and audio system development use cases. Explore the full range of audio amplifier development tools and demonstration boards on EnvMart to optimize your audio development projects.
Explore more products in our Audio Amplifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers up to 20 W per channel continuous output power at 18 V with an 8 Ω load and 10% total harmonic distortion (THD).
It operates with a wide single-supply voltage range from 5 V to 18 V.
It offers selectable gain settings of 20 dB, 26 dB, 30 dB, and 32 dB to adapt to different input levels.
The board supports differential inputs, which help minimize common-mode noise, enhancing audio quality.
It includes built-in short-circuit and thermal overload protection to ensure reliable operation under various conditions.
Yes, the amplifier can be externally synchronized for applications requiring multiple amplifier channels to operate in sync.
Jumpers allow configuration for either single-ended or differential input modes, providing flexibility in signal processing.
The amplifier demonstrates high efficiency with a typical power conversion efficiency of 90%.
The STEVAL-CCA042V1 is manufactured in Italy.
It is RoHS compliant, ensuring it meets environmental and safety standards.
This board is ideal for engineers and developers in audio electronics design, prototyping, and educational applications.
The TDA7491HV is packaged in a PSSO36 slug-down package, allowing for heat dissipation without the need for a heatsink.
