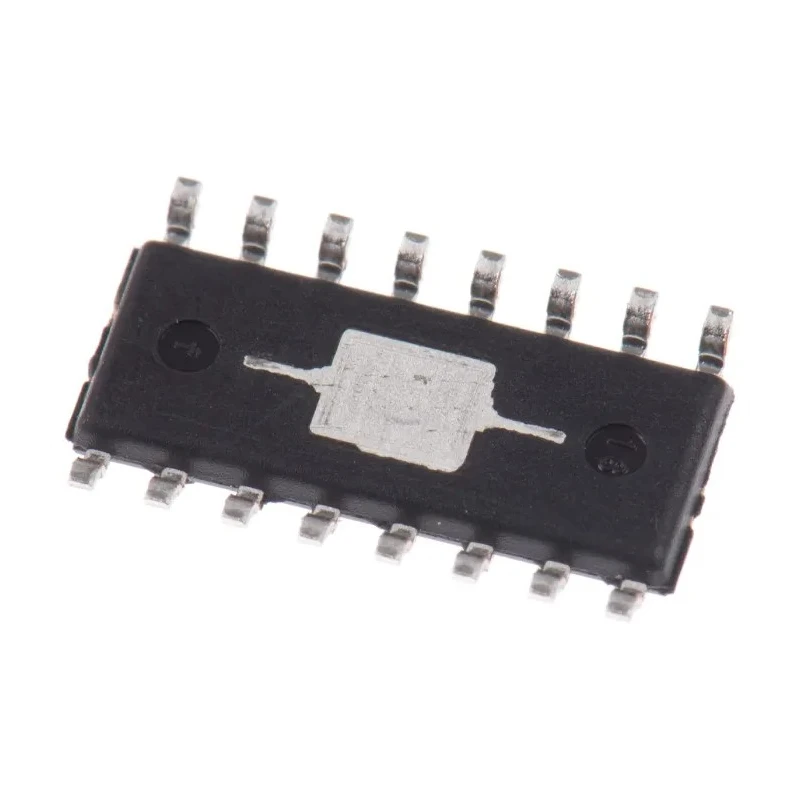

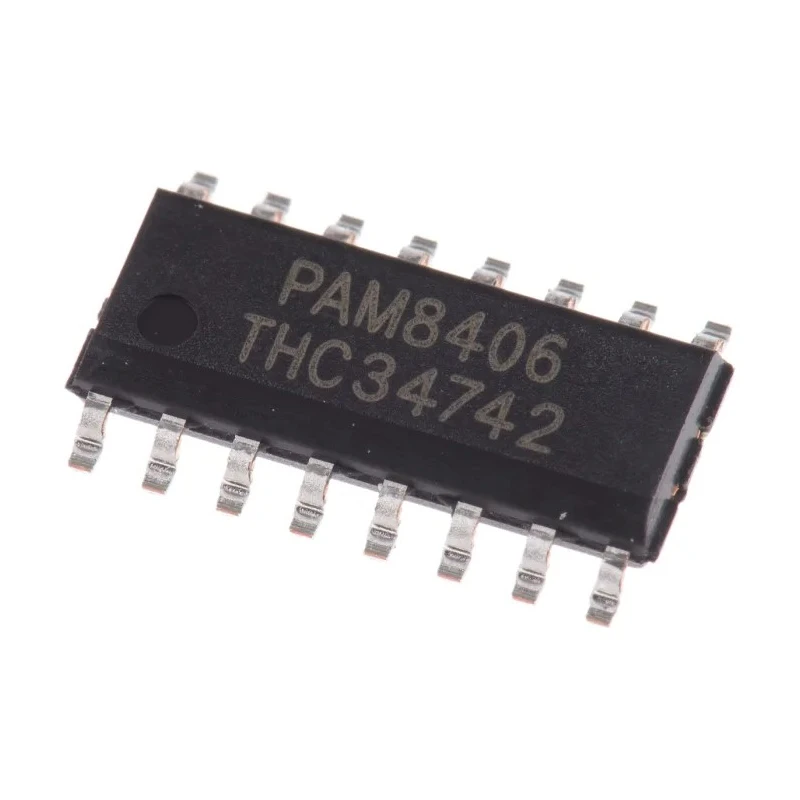

DiodesZetex Audio Amplifier IC, 16-Pin SOP Package, 3.1W Output Power PAM8406ER
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.2mm |
| Length | 9.8mm |
| Model | PAM8406ER |
| Width | 5.9mm |
| Output Power | 3.1W |
| Mount Type | Surface |
| Series | PAM8406 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Amplifier Type | Audio |
| DiodesZetex Audio, 16-Pin, 3.2W SOP PAM8403DRBrand | DiodesZetex |
| DiodesZetex, 2-ChannelAudio1.8W, 16-Pin SOP PAM8406DRBrand | DiodesZetex |
Key Features
- Compact 16-pin SOP surface mount package design.
- Single-channel audio amplifier with 3.1W continuous output power.
- Wide operating voltage range from 2.5V to 5.5V.
- Operating temperature range from -40°C to 85°C for robust performance.
- Class-D amplifier type with efficient power usage.
- Ideal for audio amplification in consumer electronics and embedded systems.
- Manufactured under DiodesZetex PAM8406 series with monophonic output.
Product Description
DiodesZetex PAM8406ER is a highly integrated audio amplifier IC designed for single-channel speaker audio applications. The device comes in a 16-Pin SOP surface-mount package, ensuring compact integration on modern PCBs.
Operating with a supply voltage range of 2.5V to 5.5V, the IC delivers a continuous output power of 3.1 Watts, making it suitable for various audio amplification tasks in consumer electronics, embedded audio systems, toys, and compact audio devices.
Feature highlights include robust operation over a wide temperature range from -40°C to 85°C, enabling reliability in industrial and commercial environments. The device size is optimized for space-saving within tight PCB designs, with approximate dimensions of 9.8mm length, 5.9mm width, and 1.2mm height.
The PAM8406ER uses Class-D amplifier topology, ensuring efficient power consumption and minimal thermal dissipation while delivering clear sound output quality. It is part of the PAM8406 series by DiodesZetex, known for its reliable audio amplification ICs.
This audio amplifier IC is suited for various industrial, laboratory, HVAC, manufacturing, commercial audio applications, and embedded systems where a compact, efficient audio output solution is required.
Compact 16-pin SOP surface mount package design. Single-channel audio amplifier with 3.1W continuous output power. Wide operating voltage range from 2.5V to 5.5V. Operating temperature range from -40°C to 85°C for robust performance.
Low profile dimensions: 9.8mm length, 5.9mm width, and 1.2mm height. Class-D amplifier type with efficient power usage. Ideal for audio amplification in consumer electronics and embedded systems. Manufactured under DiodesZetex PAM8406 series with monophonic output.
Explore the extensive range of audio amplifier ICs at EnvMart to find compatible components for your audio design and development projects.
Explore more products in our Audio Amplifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PAM8406ER delivers a continuous output power of 3.1 Watts.
It operates within a wide supply voltage range from 2.5V to 5.5V.
This model has dimensions of approximately 9.8mm in length, 5.9mm in width, and 1.2mm in height.
The operating temperature range for this audio amplifier is from -40°C to 85°C.
It is a Class-D audio amplifier, which is known for its efficient power usage and minimal thermal dissipation.
This model is a single-channel audio amplifier.
The amplifier is available in a 16-pin SOP (Small Outline Package) surface mount package.
It is suitable for audio amplification in consumer electronics, embedded audio systems, toys, and compact audio devices.
The mount type for this amplifier is surface mount.
This model is part of the PAM8406 series by DiodesZetex.
The maximum operating temperature for this model is 85°C.
The minimum supply voltage required for this audio amplifier is 2.5V.
