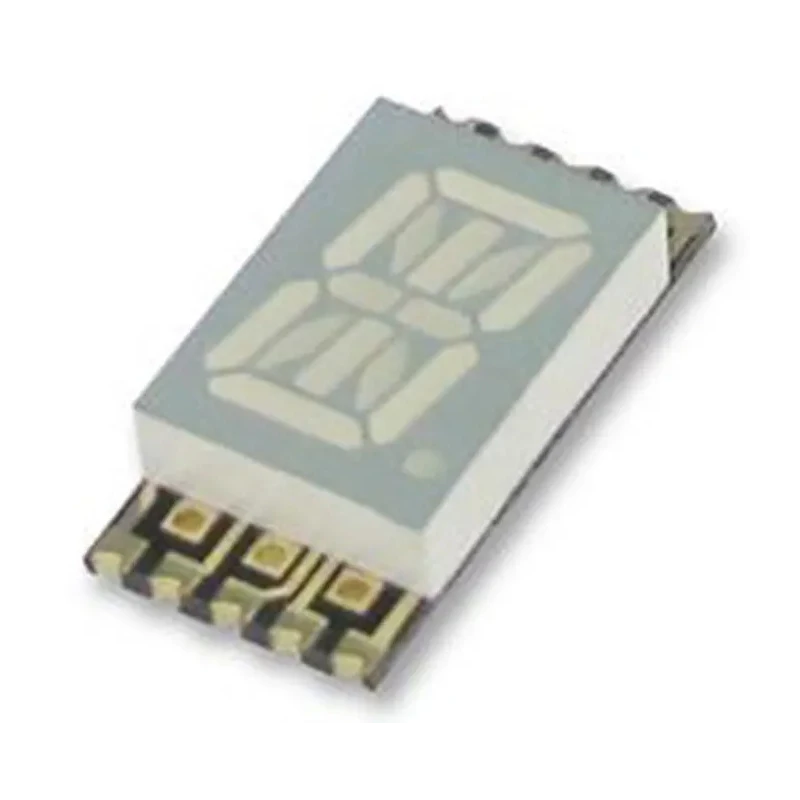

Kingbright 1 Digit 14 Segment Red LED Display Cathode 10.2mm Character Height KCPSC04-105

Kingbright KCPSC04-105 is a high-contrast, single-digit 14 segment LED display designed for displaying alphanumeric characters including numbers and letters. It features a 10.2 mm character height with a character width of 6 mm, making it suitable for compact electronic display solutions in industrial and commercial equipment.

The LED display utilizes a common cathode connection and is surface mount type (SMD), offering ease of integration into modern PCB assemblies. Its red LED output emits a luminous intensity of 36 mcd with a dominant wavelength of 630 nm, providing bright and clear visibility under various lighting conditions.

This display module measures 9.3 mm in width, 3.8 mm in height, and 19 mm in depth, fitting well into small form factor electronic devices. It is capable of operating at temperatures between -40°C and 85°C, suitable for a broad range of industrial and outdoor applications.

Power consumption is minimized with a forward voltage of 2 V and power dissipation of only 75 mW, enabling energy-efficient operation. The right side decimal orientation adds flexibility for numeric displays requiring decimal points.

Designed to meet RoHS compliance, this product adheres to environmental regulations by restricting hazardous substances. Its grey face color enhances readability and mechanical ruggedness ensures durability in demanding environments.

Kingbright KCPSC04-105 is well-suited for use in industrial automation, instrumentation panels, HVAC controls, laboratory equipment, and other electronic display modules where compact, reliable alphanumeric display solutions are essential.

This single-digit LED display comes from the trusted Kingbright KCPSC04 series, offering consistent quality and performance that engineers and designers expect. Single digit 14 segment display ideal for numbers and letters.

Red LED color with 36 mcd luminous intensity. Surface mount device with cathode common connection. Character dimensions: 6 mm width by 10.2 mm height. Operating temperature range from -40°C to 85°C. Low power dissipation of 75 mW and forward voltage of 2 V.

Right side decimal orientation for versatility in display layouts. Module dimensions of 9.3 mm width, 3.8 mm height, and 19 mm depth. Compliant with RoHS standards for environmental safety. Made in China with a mechanically rugged construction.
