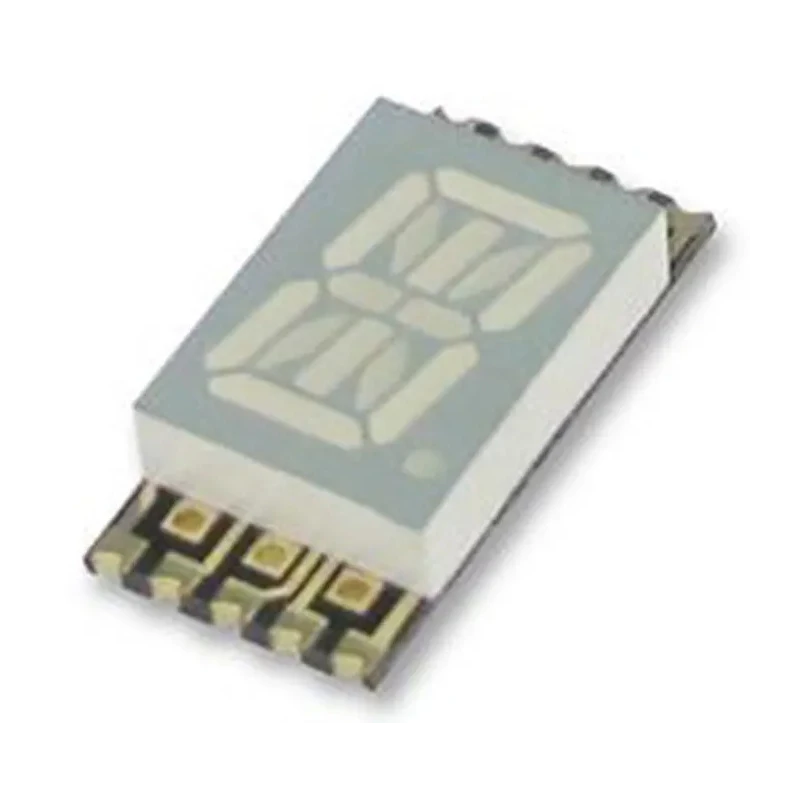

Kingbright 1 Digit 14 Segment Anode Yellow LED Display 2.5V Forward Voltage 46mcd Brightness KCPSA04-107
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 14 Segment |
| Brand | Kingbright |
| Model | KCPSA04-107 |
| Mount Type | Surface |
| Series | KCPSA04 |
| Character height | 10.2mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 14 |
| External Width | 9.3mm |
| External Depth | 19mm |
| External Height | 3.8mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 46mcd |
| Colours | Red, Green, Yellow |
| Standards/Approvals | RoHS |
| LED Colour | Yellow |
| Dominant Wavelength | 590nm |
| Colour of Face | Grey |
| Forward Voltage | 2.5V |
| Forward Current | 30mA |
| Number of Characters | 1 |
| Character Width | 6mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
Key Features
- This surface-mounted LED display features a 14 segment layout suitable for alphanumeric characters.
- The LED colour is yellow with a dominant wavelength of 590nm ensuring bright illumination.
- It operates with a forward voltage of 2.5V and power dissipation of 75mW for low power consumption.
- The display has a character width of 6mm and overall module dimensions of 9.3mm width, 3.8mm height, and 19mm depth.
- Designed for right side decimal orientation with grey face colour for high contrast.
- Suitable for industrial applications due to an operating temperature range from -40°C to 85°C.
- This model is RoHS compliant, ensuring environmental safety standards.
- The forward current is 30mA, supporting efficient manual or automatic display implementations.
Product Description
Kingbright KCPSA04-107 is a high-quality 14 segment LED display designed for clear alphanumeric character representation. It features a single digit display with a character height of 10.2mm, which ensures excellent visibility and readability in various applications.
This LED display uses yellow LEDs with a luminous intensity of 46mcd, offering bright and sharp illumination. It operates efficiently with a low forward voltage of 2.5V and power dissipation of only 75mW, beneficial for power-sensitive environments.
The display is surface mounted, with compact dimensions of 9.3mm width, 3.8mm height, and 19mm depth, making it suitable for integration into tight electronic assemblies. The right side decimal orientation and grey face colour provide high contrast, improving readability in industrial and electronic displays.
It is compatible with forward currents up to 30mA and is constructed to operate reliably within a temperature range from -40°C to 85°C, suitable for harsh environments. The product conforms to RoHS standards, ensuring compliance with environmental regulations.
This 14 segment display provides clear alphanumeric output for precise digital readouts. Yellow LED emits light at 590nm wavelength with high luminous intensity for visibility. Low power consumption at 2.5V forward voltage and 75mW power dissipation.
Compact surface mount design with 9.3 x 3.8 x 19 mm physical dimensions. Operational temperature range from -40°C to 85°C for industrial use. Right side decimal point orientation supports numeric precision. Grey face module offers high contrast visual display effectiveness.
Forward current rating of 30mA for efficient electronic integration. RoHS compliant ensuring environmentally safe manufacturing.
This Kingbright LED Display module is ideal for use in electronic measurement devices, instrumentation panels, and digital displays requiring single digit alphanumeric indication with bright and reliable performance. It is suitable for laboratory, industrial control, instrumentation, embedded systems, and commercial electronic applications.
Explore EnvMart's Electronics & Electricals catalog for a wide range of display modules and LED components for advanced industrial and manufacturing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this model is 2.5V.
The character height of the KCPSA04-107 is 10.2mm.
This LED display can operate at a maximum temperature of 85°C.
The luminous intensity of the yellow LEDs in this display is 46mcd.
The overall dimensions of this model are 9.3mm in width, 3.8mm in height, and 19mm in depth.
The power dissipation for this model is 75mW.
The forward current rating for this unit is 30mA.
The face color of this display is grey, which provides high contrast for visibility.
This model uses a surface mount type.
Yes, this model is RoHS compliant, ensuring it meets environmental safety standards.
The dominant wavelength of the yellow LEDs is 590nm.
This LED display is suitable for use in electronic measurement devices, instrumentation panels, and digital displays requiring single digit alphanumeric indication.
