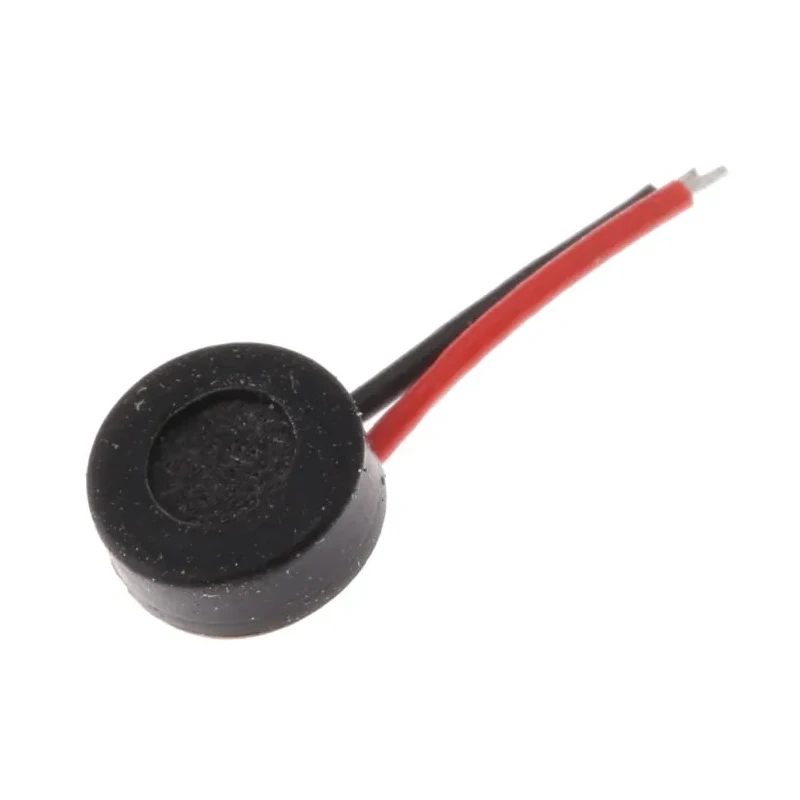

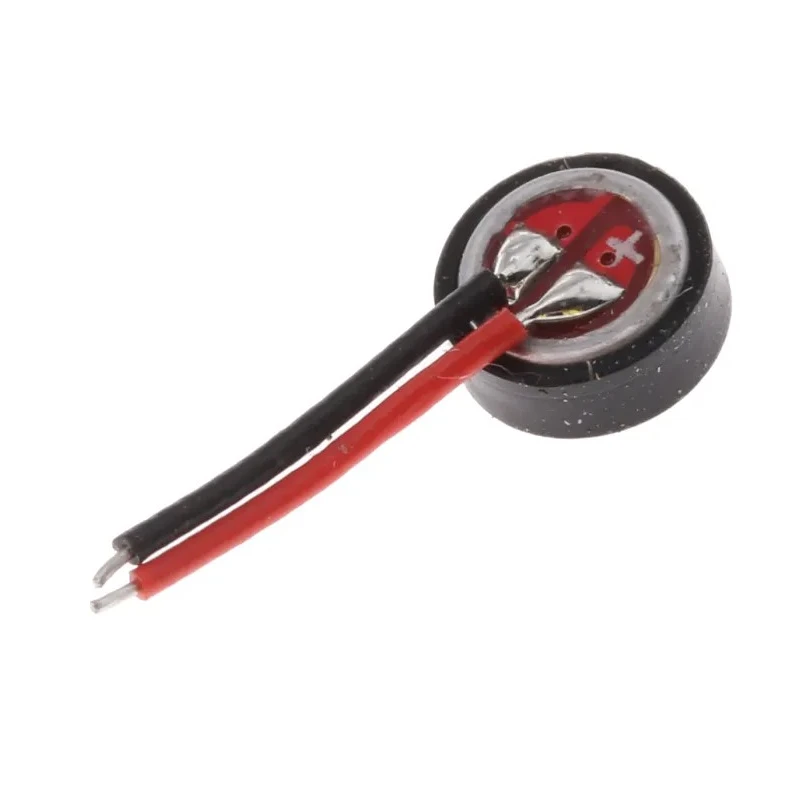

RS PRO Omni-Directional Through Hole 4 mm Microphone Condenser -44dB 7800725P
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 4mm |
| Brand | RS PRO |
| Height | 1.5mm |
| Model | 7800725P |
| SENSITIVITY | -44dB |
| Mount Type | Through Hole |
| Output Impedance | 2.2kΩ |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Signal to Noise Ratio | 60dB |
| Maximum Frequency | 16kHz |
| Termination Style | Solder Pad |
| Supply Current | 500μA |
| Minimum Frequency | 50Hz |
| Standards and Approvals | RoHS compliant |
| Directivity | Omni-Directional |
| Standard Operating Voltage | 2V |
Key Features
- The condenser microphone features omni-directional directivity to capture sound from all directions.
- It has a standard operating voltage of 2V, suitable for various electronic devices.
- The microphone diameter is precisely 4 mm with a height of 1.5 mm for compact installation.
- With a frequency range of 50 Hz to 16 kHz, it supports a wide audio spectrum.
- The signal-to-noise ratio is 60 dB, ensuring clear audio output.
- Through hole mount type with solder pad termination for easy assembly on PCB.
- Supply current is low at 500 μA, allowing energy-efficient operation.
- The construction includes aluminium and UL1571 lead wire 32 AWG for durability.
Product Description
RS PRO 7800725P is a precision 4 mm omni-directional condenser microphone designed with through hole mounting for stable PCB integration. Operating at a standard voltage of 2 V and a sensitivity of -44 dB, it captures clear and accurate sound from all directions, making it ideal for a broad range of audio sensing applications.
Compact in size at 4 mm diameter and 1.5 mm height, the microphone's aluminium body construction and UL1571 32 AWG lead wires ensure reliability and durability in industrial and commercial audio equipment. The microphone supports a frequency range from 50 Hz to 16 kHz, adequate for capturing wide audio frequency bands.
With a signal-to-noise ratio of 60 dB and a low supply current of 500 μA, this condenser microphone balances power efficiency with performance. Its through hole mount with solder pad termination enables easy installation in electronic manufacturing processes.
Certified RoHS compliant, the device meets industry standards for environmental safety. It operates effectively within a temperature range of -20 °C to 60 °C, suitable for various operational environments including industrial, laboratory, commercial, and consumer electronics.
The condenser microphone insert provides accurate omni-directional audio pick-up. Standard 2 V operating voltage with maximum 10 V voltage tolerance. Compact 4 mm diameter and 1.5 mm height form factor facilitates use in small devices.
High signal-to-noise ratio of 60 dB provides clear audio capture quality. Low supply current of 500 μA supports energy-efficient operation. RoHS compliant materials and manufacture supporting environmental standards. Through hole mount with solder pad termination for robust electronic board mounting.
Durable aluminium construction with UL1571 lead wire (32 AWG) wiring. Operating temperature range from -20 to 60 °C for versatile application environments.
This RS PRO 7800725P microphone condenser is suited for integration in industrial electronic devices, laboratory equipment requiring audio sensing, commercial electronics solutions, and HVAC sound detection systems. Its compact size and reliable performance make it a preferred choice for advanced audio component needs. Explore more RS PRO condenser Microphones and electronic components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensitivity of this microphone is -44 dB, allowing it to capture audio effectively from various sources.
It operates at a standard voltage of 2 V, with a maximum voltage tolerance of 10 V.
The microphone supports a frequency range from 50 Hz to 16 kHz, making it suitable for capturing a wide audio spectrum.
This model features a through hole mount with solder pad termination for easy assembly on PCBs.
The supply current is low at 500 μA, which supports energy-efficient operation.
The microphone has a diameter of 4 mm and a height of 1.5 mm, making it compact for various applications.
The signal-to-noise ratio is 60 dB, ensuring clear audio output during operation.
It features an aluminium body and UL1571 lead wire (32 AWG) for durability.
The microphone operates effectively within a temperature range of -20 °C to 60 °C.
Yes, it is RoHS compliant, meeting industry standards for environmental safety.
It is suited for integration in industrial electronic devices, laboratory equipment, commercial electronics, and HVAC sound detection systems.
