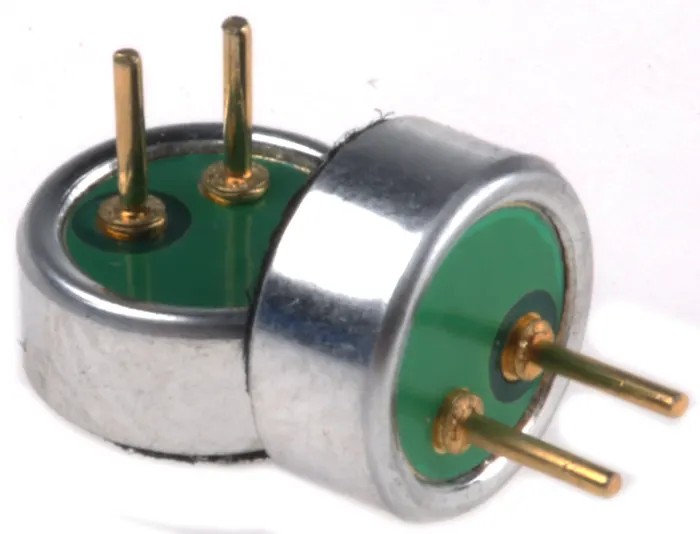

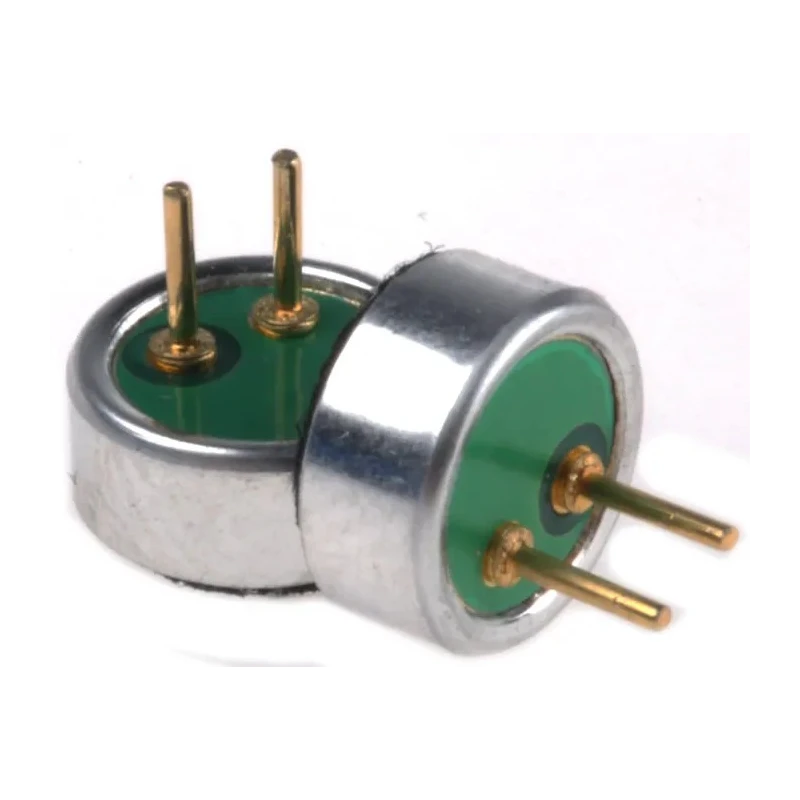

RS PRO Omni-Directional Through Hole 6 mm Microphone Condenser -42dB 780-0728
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 6mm |
| Brand | RS PRO |
| Height | 2.7mm |
| Model | 780-0728 |
| SENSITIVITY | -42dB |
| Mount Type | Through Hole |
| Output Impedance | 2.2kΩ |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Signal to Noise Ratio | 60dB |
| Maximum Frequency | 16kHz |
| Termination Style | Solder Pad |
| Supply Current | 500μA |
| Minimum Frequency | 50Hz |
| Directivity | Omni-Directional |
| Standard Operating Voltage | 2V |
| RS PRO Omni-Directional, Surface 6 mm Microphone Condenser -42dBBrand | RS PRO |
Key Features
- The condenser microphone has an omni-directional directivity ensuring sound is captured from all directions.
- Standard operating voltage is 2V suitable for various electronic circuits.
- The mounting is through hole style facilitating secure PCB integration.
- Output impedance rated at 2.2kΩ provides consistent signal transmission.
- Signal to noise ratio is 60dB ensuring clear audio quality.
- The diameter measures 6 mm with a height of 2.7 mm, compact for tight spaces.
- Operates reliably within temperatures from -20°C up to 60°C for diverse environments.
- The termination style is via solder pad facilitating robust electrical connections.
Product Description
RS PRO 780-0728 Microphone Condenser is an omni-directional, through-hole electret condenser microphone insert designed for precise audio signal capture in electronic applications. With a diameter of 6 mm and height of 2.7 mm, it is ideal for space-constrained circuit designs.
The microphone operates at a standard voltage of 2V and has an output impedance of 2.2kΩ, allowing for compatibility with a wide range of electronic audio processing units. Its omni-directional directivity ensures effective sound pick-up from all directions, making it suitable for diverse industrial and laboratory environments.
Featuring a wide frequency response from 50Hz to 16kHz and a high signal-to-noise ratio of 60dB, it delivers clear audio signal quality. The device sustains reliable operation in temperatures ranging from -20°C to 60°C, suitable for various manufacturing and testing conditions. Termination is via solder pads ensuring secure PCB mounting through the through-hole style.
This microphone is commonly used in audio equipment manufacturing, electronic testing instruments, consumer electronics, and other applications requiring miniature sensitive microphones. Its low supply current of 500μA provides energy-efficient performance for embedded systems.
The microphone has an omni-directional directivity for 360-degree sound capture. Standard operating voltage of 2V supports typical audio circuits. Through-hole mount type ensures reliable PCB installation. Output impedance rating of 2.2kΩ enables stable signal output.
High signal-to-noise ratio of 60dB for clear audio reception. Compact physical dimensions with 6 mm diameter and 2.7 mm height. Wide frequency response from 50Hz to 16kHz encompasses most audio ranges. Operating temperature range from -20°C to 60°C for flexibility in environments.
Solder pad termination style facilitates strong electrical connections. Low supply current of 500μA helps in power-sensitive applications.
This RS PRO condenser microphone 780-0728 is engineered to meet the demands of industrial, laboratory, commercial, and consumer audio applications, offering trustworthy sound performance and durability. Explore more RS PRO audio and condenser Microphone components with EnvMart for comprehensive electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard operating voltage of this model is 2V, making it suitable for various electronic circuits.
The output impedance is rated at 2.2kΩ, which allows for stable signal output.
It has a wide frequency response range from 50Hz to 16kHz, covering most audio frequencies.
The signal-to-noise ratio is 60dB, ensuring clear audio reception.
The microphone has a diameter of 6 mm and a height of 2.7 mm, making it compact for tight spaces.
It uses a through-hole mounting style, facilitating secure integration onto PCBs.
It operates reliably within temperatures from -20°C to 60°C, suitable for diverse environments.
The termination style is via solder pads, ensuring robust electrical connections during installation.
The supply current is low at 500μA, making it suitable for power-sensitive applications.
It features omni-directional directivity, allowing sound capture from all directions.
This microphone is commonly used in audio equipment manufacturing, electronic testing instruments, and consumer electronics.
The sensitivity of this model is rated at -42dB, which is suitable for capturing audio signals effectively.
