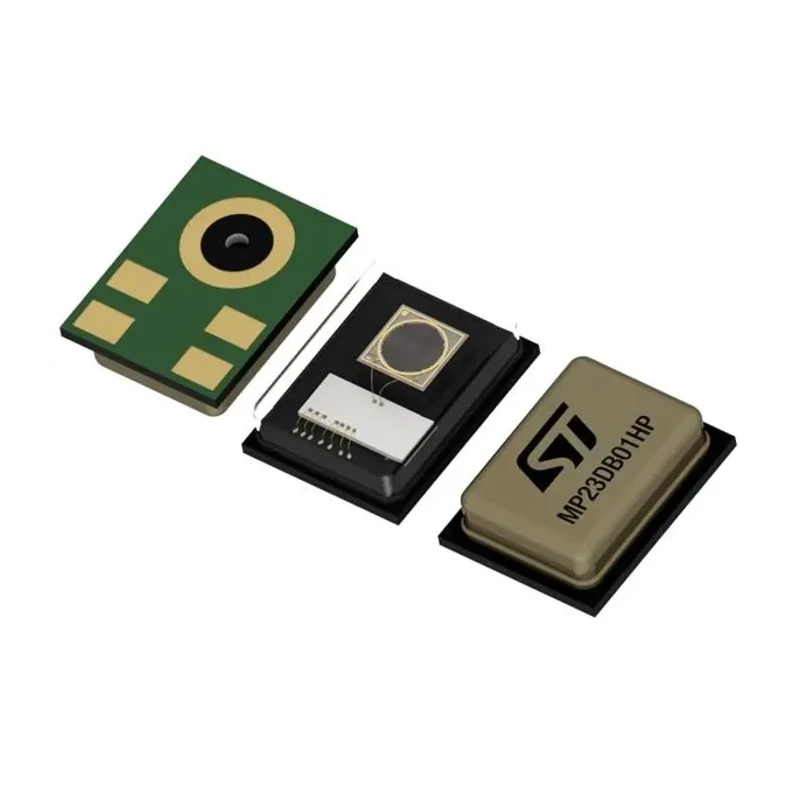

STMicroelectronics Omni-Directional Surface Microphone Condenser 1dB 3.6V dc MP23DB01HPTR

STMicroelectronics MP23DB01HPTR is an ultra-compact, low-power, omnidirectional digital MEMS microphone condenser designed for high precision acoustic sensing in various electronic applications. Operating at a standard voltage of 3.6V dc, this surface mount device provides digital PDM output suitable for stereo audio configurations, making it ideal for consumer and industrial audio devices.

The microphone features a capacitive sensing element fabricated using a specialized silicon micromachining process, combined with an integrated CMOS IC providing the digital interface. Its ultra-small height of 0.98mm and bottom-port design make it compatible with space-constrained PCB layouts.

With a sensitivity of 1dB and a signal-to-noise ratio of 65.5 dB, it accurately captures audio signals while maintaining very low distortion thanks to its high acoustic overload point of 135 dBSPL. The device supports multiple power modes, including sleep (2 μA), low-power (285 μA), and performance (800 μA), allowing efficient power management in portable and battery-operated equipment.

The operating temperature range from -40°C to 85°C ensures reliable operation in diverse environmental conditions. The device is RoHS and Ecopack compliant and EMI shielded, suitable for industrial, laboratory, consumer electronics, and audio processing applications.

Typical use cases include integration in smartphones, voice-activated systems, hearing aids, and other embedded audio devices requiring high fidelity sound capture and digital signal output.

The package is surface mount device (SMD) compliant and conforms to industry standards for quality and reliability. Ultra-compact MEMS microphone suitable for surface mounting. Omni-directional sensitivity ensures uniform sound detection in all directions.

High acoustic overload point (135 dBSPL) for distortion-free audio. Digital PDM output enabling stereo configuration with low power consumption. Multiple operating modes including sleep, low-power, and performance modes.

Wide operating temperature range from -40°C to 85°C ensures reliability. Signal-to-noise ratio of 65.5 dB for clear audio capture. Low typical current consumption minimizing power usage in various modes. Height of 0.98mm and bottom-port design for flexible PCB integration.

RoHS and Ecopack compliant with EMI shielding for robust industrial use. Explore more components in the Condenser Microphone category at EnvMart for advanced audio design projects.
