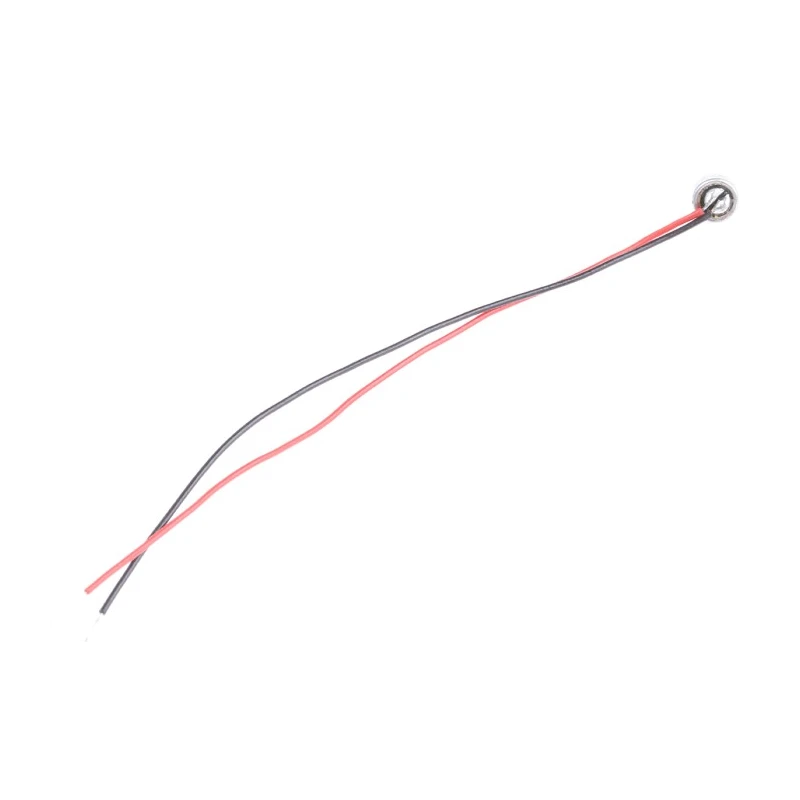

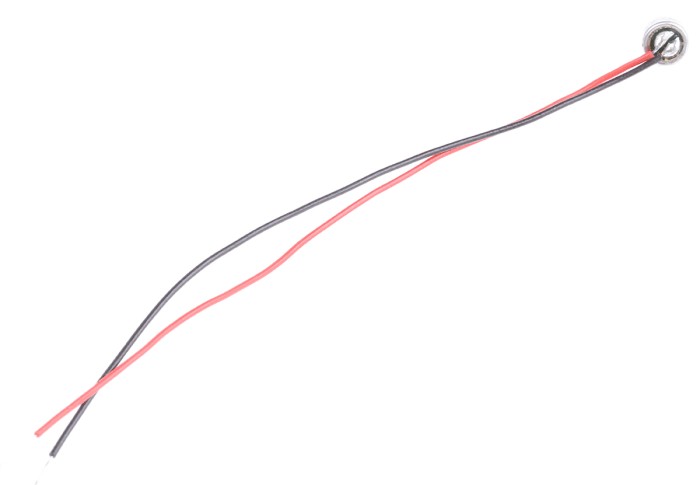

RS PRO Omni-Directional Through Hole 3 mm Microphone Condenser -44dB 780-0734
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 3mm |
| Brand | RS PRO |
| Height | 1.5mm |
| Model | 780-0734 |
| SENSITIVITY | -44dB |
| Mount Type | Through Hole |
| Output Impedance | 2.2kΩ |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Signal to Noise Ratio | 60dB |
| Maximum Frequency | 16kHz |
| Termination Style | Solder Pad |
| Supply Current | 500μA |
| Minimum Frequency | 50Hz |
| Directivity | Omni-Directional |
| Standard Operating Voltage | 2V |
Key Features
- This condenser microphone has an omni-directional directivity for capturing sound from all directions.
- The through-hole mount type ensures secure PCB installation.
- It operates with a standard voltage of 2V and has a low output impedance of 2.2kΩ.
- Built for temperature tolerance from -20°C to 60°C suitable for diverse environments.
- Offers a signal to noise ratio of 60dB to ensure clear audio quality.
- Has a diameter of 3 mm and a height of 1.5 mm for compact PCB integration.
- The frequency response covers 50 Hz minimum to a maximum of 16 kHz enabling broad audio detection.
- Termination is via solder pad for reliable electrical connection.
Product Description
RS PRO 780-0734 is a precision omni-directional condenser microphone designed for robust sound pickup in electronic and audio applications. This through-hole 3 mm electret microphone insert offers high sensitivity of -44dB, capturing audio signals with minimal distortion, making it ideal for industrial, laboratory, communication, and consumer electronics systems.
Its reliable performance at a standard operating voltage of 2V and low output impedance of 2.2kΩ allows excellent compatibility with common audio circuits. The microphone's wide frequency range from 50Hz to 16 kHz ensures faithful sound reproduction across human voice and many instrument frequencies.
Designed for PCB mounting, its through-hole configuration provides sturdy mechanical and electrical connection via solder pads. The compact size of 3 mm diameter and 1.5 mm height facilitates integration into space-constrained electronic boards.
Operating in temperature ranges from -20°C to 60°C, this component is suitable for varied environments while maintaining a signal to noise ratio of 60dB for clear audio capture. The supply current of 500μA supports efficient power usage in portable devices.
Omni-directional sound capture with consistent sensitivity. Through-hole mount style for secure PCB installation. Wide operating temperature range of -20°C to 60°C. Frequency response from 50 Hz to 16 kHz ensures accurate sound detection.
Low 2.2kΩ output impedance compatible with diverse circuitry. Compact 3 mm diameter and 1.5 mm height dimensions. 500μA supply current for energy-efficient operation. Solder pad termination style for reliable connections.
Manufactured in China to exacting standards.
This Microphone condenser is widely used in electronic manufacturing, audio equipment, consumer electronics, and communication devices. Its design facilitates easy integration and stable performance for recording, sensing, and transmission purposes.
Explore more RS PRO components and professional electronic parts in the Electronics & Electricals category at EnvMart for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The microphone has a sensitivity of -44dB, allowing it to capture audio signals effectively with minimal distortion.
It operates at a standard voltage of 2V, making it compatible with common audio circuits.
The output impedance is 2.2kΩ, which is suitable for diverse circuitry applications.
The frequency response ranges from a minimum of 50Hz to a maximum of 16kHz, ensuring accurate sound detection across various audio frequencies.
It has a diameter of 3 mm and a height of 1.5 mm, allowing for compact integration into electronic boards.
This model features a through-hole mount type, ensuring secure installation on a PCB.
The microphone has a signal to noise ratio of 60dB, which contributes to clear audio quality during operation.
The supply current is 500μA, supporting efficient power usage in portable devices.
It operates effectively within a temperature range of -20°C to 60°C, making it suitable for various environments.
The termination style is via solder pad, ensuring reliable electrical connections during installation.
This condenser microphone is widely used in electronic manufacturing, audio equipment, consumer electronics, and communication devices.
It is manufactured in China to exacting standards, ensuring consistent performance and quality.
