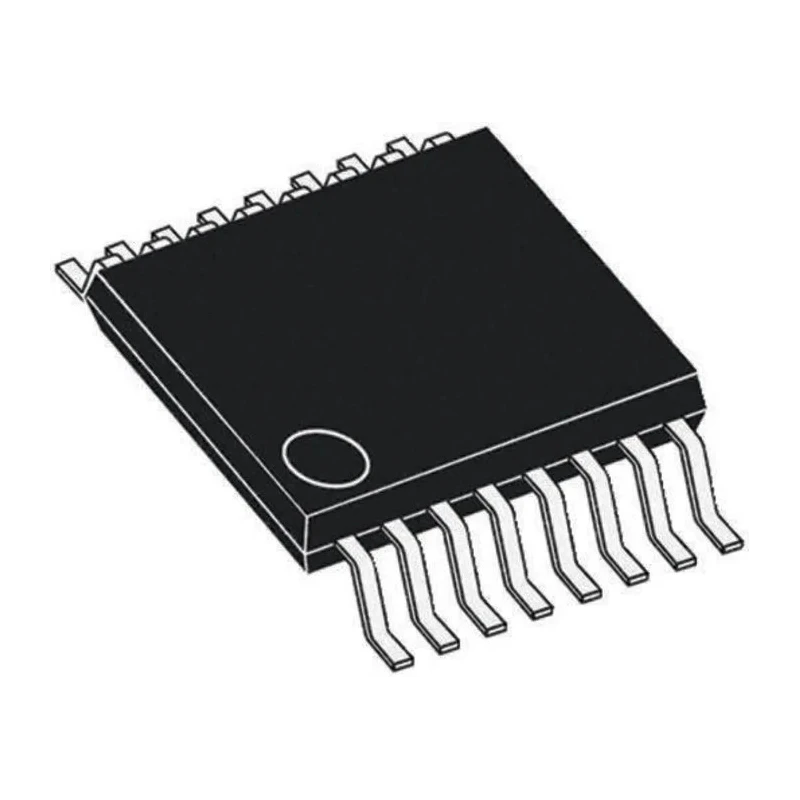

Renesas Electronics Line Transceiver TTL/CMOS Non-Inverting 16-Pin SSOP ICL3221ECAZ-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 2mm |
| Length | 10.6mm |
| Model | ICL3221ECAZ-T |
| Width | 8.2mm |
| Mount Type | Surface |
| Output type | TTL/CMOS |
| Series | ICL32xxE |
| Input Type | Single Ended |
| Maximum Operating Temperature | 125°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Line Transceiver IC |
| Standards/Approvals | IEC61000-4-2, EIA/TIA-232, V.28/V.24 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 704-6851Brand: Renesas ElectronicsManufacturers Part No.: ICL3221ECAZ-T |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS |
| Logic Function | Transceiver |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | -1mA |
| Maximum Propagation Delay Time @ CL | 0.15μs |
| Maximum Low Level Output Current | 1.6mA |
Key Features
- This line transceiver operates with a minimum supply voltage of 3V and maximum of 5.5V.
- It supports single-ended input and TTL/CMOS output with non-inverting polarity.
- The device features low maximum propagation delay of 0.15 microseconds at CL.
- Operating temperature range is from -40°C to 125°C, making it suitable for harsh environments.
- The package dimensions are 10.6mm length, 8.2mm width, and 2mm height.
- It complies with IEC61000-4-2 ESD protection and standards EIA/TIA-232, V.28/V.24.
Product Description
Renesas Electronics ICL3221ECAZ-T is a high-performance line transceiver IC designed for RS-232 line drivers and receivers applications. It features CMOS logic technology with TTL/CMOS compatible outputs and non-inverting polarity, ensuring efficient signal transmission and reception in electronic communication devices.
This transceiver supports single-ended input and operates within a supply voltage range of 3V to 5.5V. The device is housed in a compact 16-pin SSOP surface mount package, measuring 10.6mm in length, 8.2mm in width, and only 2mm in height, which allows for space-efficient PCB designs.
The ICL3221ECAZ-T delivers a maximum propagation delay time of just 0.15 microseconds at CL, offering rapid response suitable for data rates up to 1 Mbps. Its operating temperature range from -40°C to 125°C ensures reliable performance in various industrial and commercial environments, including harsh conditions.
Robust standards compliance with IEC61000-4-2 for ESD protection and adherence to EIA/TIA-232 and V.28/V.24 guidelines guarantee compatibility and durability in communication interface applications. This makes it ideal for use in industrial automation, telecommunications, data communication devices, and embedded systems.
This line transceiver operates with a minimum supply voltage of 3V and maximum of 5.5V. It supports single-ended input and TTL/CMOS output with non-inverting polarity. The device features low maximum propagation delay of 0.15 microseconds at CL.
Operating temperature range is from -40°C to 125°C, making it suitable for harsh environments. The package dimensions are 10.6mm length, 8.2mm width, and 2mm height. It complies with IEC61000-4-2 ESD protection and standards EIA/TIA-232, V.28/V.24.
Choose the Renesas Electronics ICL3221ECAZ-T line transceiver for reliable and efficient RS-232 line interface integration in your industrial, laboratory, or communications equipment. Explore more Electronic Components and semiconductor solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a minimum supply voltage of 3V and a maximum of 5.5V.
The ICL3221ECAZ-T features a low maximum propagation delay of 0.15 microseconds at CL.
It has an operating temperature range from -40°C to 125°C, making it suitable for harsh environments.
The package dimensions are 10.6mm in length, 8.2mm in width, and 2mm in height.
This line transceiver supports single-ended input.
It provides TTL/CMOS output with non-inverting polarity.
It complies with IEC61000-4-2 for ESD protection and standards EIA/TIA-232 and V.28/V.24.
This unit has a pin count of 16.
The maximum high-level output current is -1mA.
The maximum low-level output current is 1.6mA.
It uses a surface mount type for installation.
This model belongs to the CMOS logic family.
