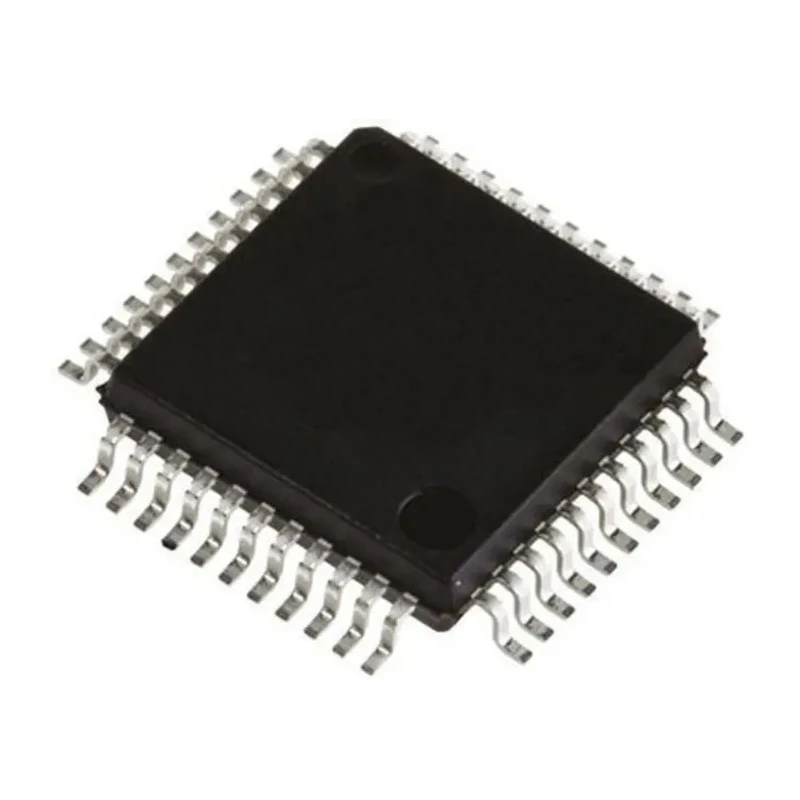

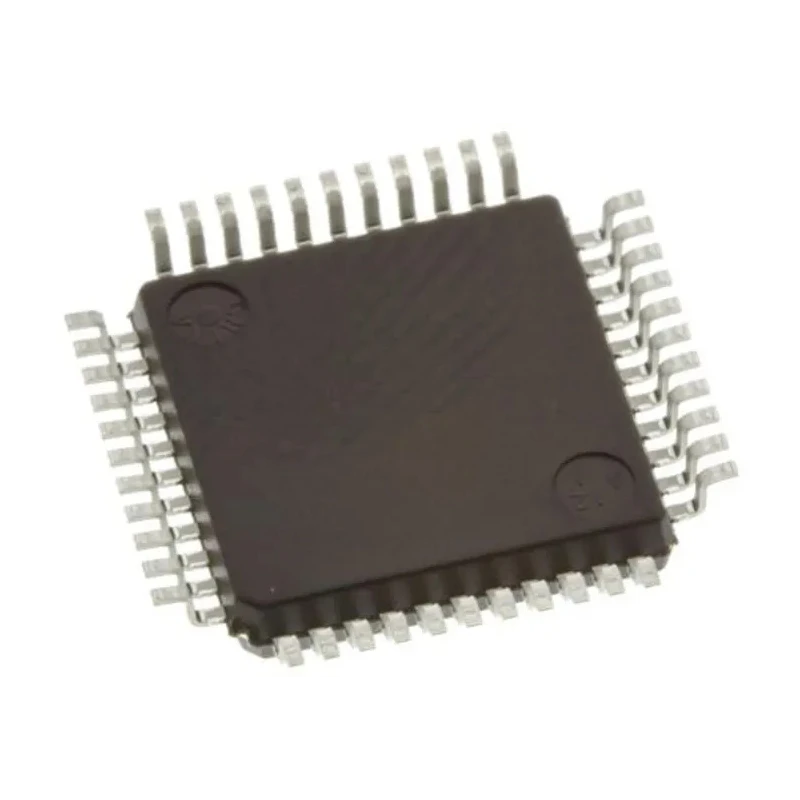

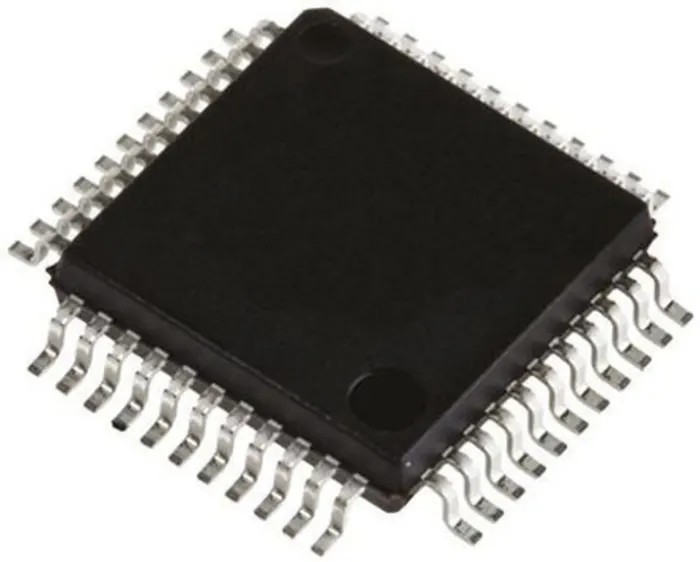

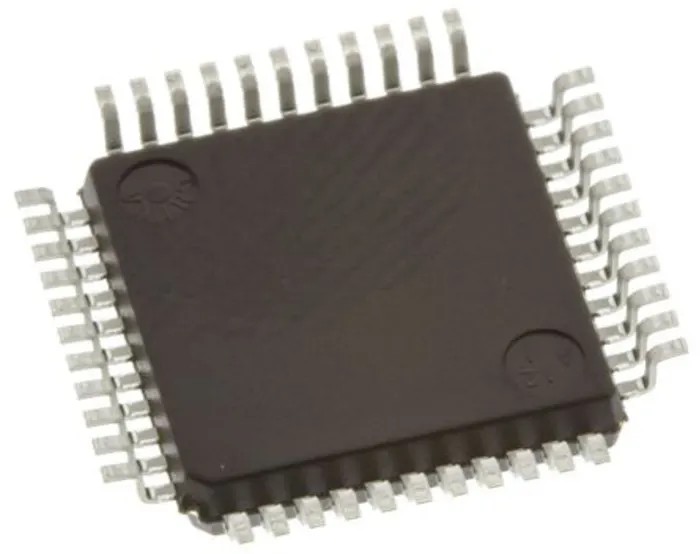

Renesas Electronics Analog to Digital Converter 3.5 Digits Dual Slope ADC 3 sps 44-Pin MQFP ICL7136CM44Z

Renesas Electronics ICL7136CM44Z analog to digital converter is a 3.5 digit dual slope ADC with a sampling rate of 3 samples per second. This 44-pin MQFP packaged device is designed for surface mounting and voltage input applications. It is ideal for industrial, laboratory, and embedded electronics conversion tasks requiring accurate and stable digital measurement.

The ADC features low power operation, enhancing its usefulness in compact electronic designs. It supports a minimum supply voltage of 9 V and operates reliably within a temperature range from 0°C to 70°C. Its 3-1/2 digit resolution ensures precise numeric output suitable for many control and instrumentation systems.

The package's compact form factor with 13.2 mm length and 2.45 mm height allows for integration in space-constrained assemblies. Renesas Electronics’ ICL7136 series is known for consistent performance with no additional automotive standards or approvals.

This ADC is widely used in industrial electronics, laboratory instrumentation, and testing equipment where precise voltage conversions are essential. Its surface mount MQFP package supports modern PCB assembly techniques, supporting manufacturing efficiencies.

Provides accurate 3-1/2 digit ADC conversion suitable for measurement applications. Offers low power consumption for efficient operation. Encapsulated in a 44-pin MQFP package for surface mounting. Operates within temperature range of 0°C to 70°C.

Minimum supply voltage required is 9 V for stable performance. Designed for voltage input type applications. Compact dimensions with length 13.2 mm and height 2.45 mm. Ideal for industrial and laboratory electronic conversion needs.
