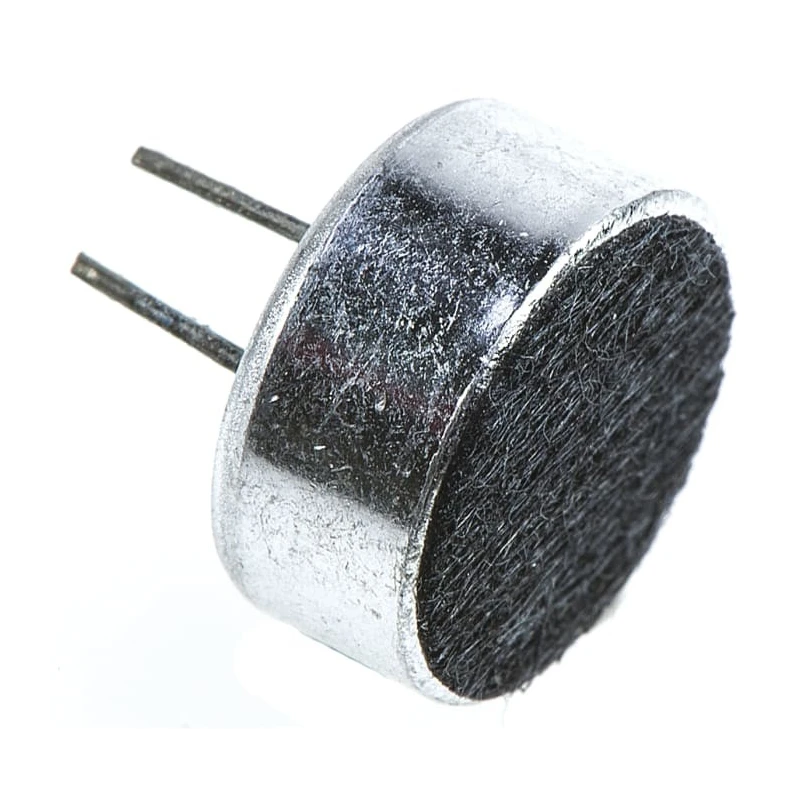

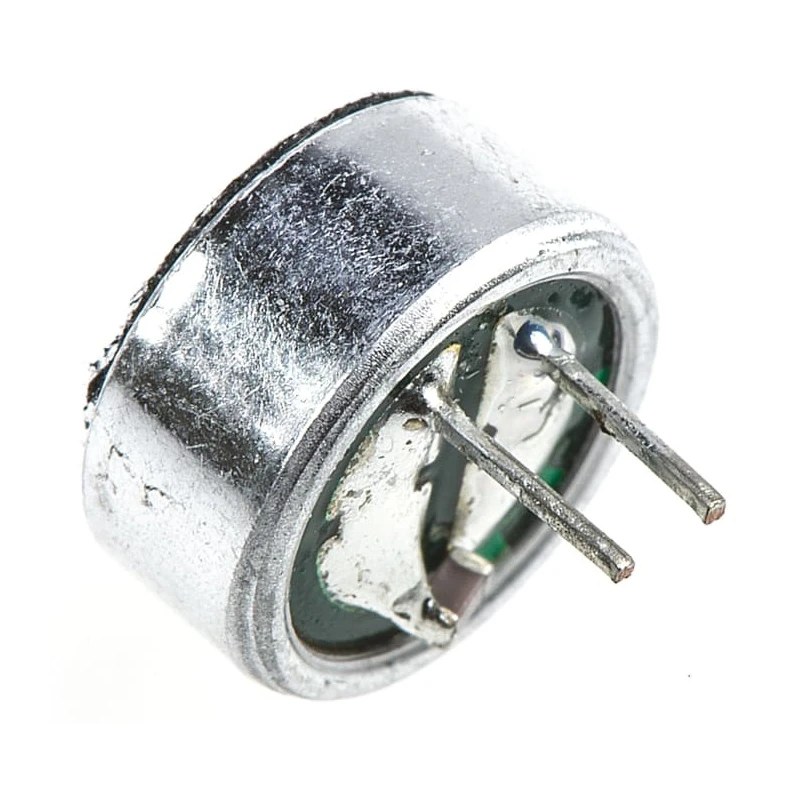

RS PRO Omni-Directional Through Hole 9.7 mm Microphone Condenser -41dB 171-0878

RS PRO 171-0878 is an omni-directional microphone condenser designed for precision audio capturing in electronic components and recording devices. Its through-hole mount and compact size (9.7 mm diameter × 5 mm height) make it ideal for integration into a variety of audio equipment.

The microphone condenser operates at 1.5 V standard voltage and consumes only 500 μA supply current, making it energy-efficient for continuous use. With an output impedance of 2.2 kΩ, it provides reliable audio signal compatibility and transmission.

The device covers a broad frequency range from 50 Hz minimum to a maximum frequency of 16 kHz, suitable for recording both low and high frequency sounds accurately. Its sensitivity of -41 dB and 60 dB signal-to-noise ratio ensure clear and low-noise audio capture for professional and industrial applications.

Designed to work under a wide temperature range from -20°C to +70°C, this condenser microphone can be used in diverse environments including home, commercial recording studios, laboratory setups, and other industrial audio applications. The solder pad termination ensures stable electrical connections to printed circuit boards.

This microphone condenser features an omni-directional pickup pattern for equal sensitivity from all directions. Compact dimensions of 9.7 mm diameter and 5 mm height optimized for through-hole mounting. Operates at 1.5 V with low supply current of 500 μA for efficient performance.

Wide frequency response of 50 Hz to 16 kHz for versatile audio capture. Output impedance specified at 2.2 kΩ for compatibility with typical audio circuits. Sensitivity rating of -41 dB and 60 dB signal-to-noise ratio for clear sound recording.

Operation temperature range from -20°C to +70°C for reliable use in multiple environments. Solder pad termination style for secure PCB mounting and reliable connectivity.

This product is ideal for industrial, electronic, laboratory, and commercial audio recording equipment requiring precise condenser microphone components. It ensures quality and dependable performance in sound acquisition applications.
