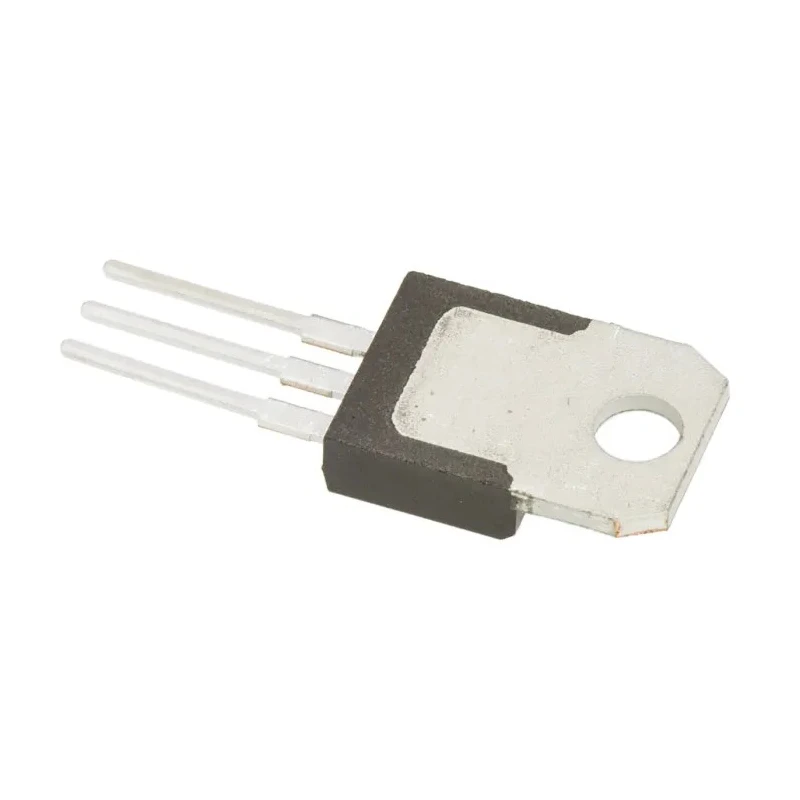

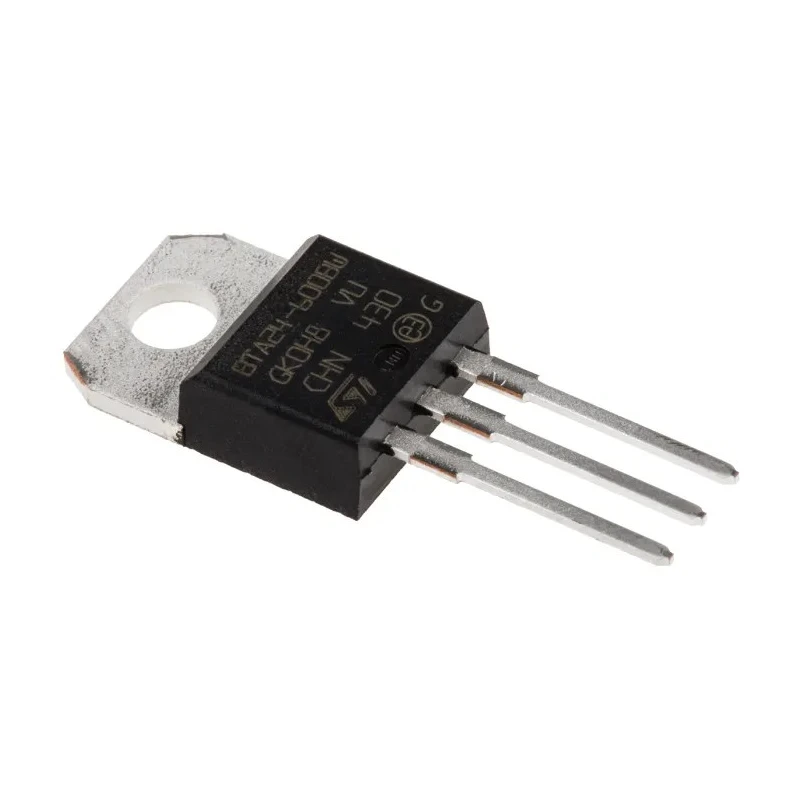

STMicroelectronics Through Hole 3-Pin TRIAC 25A, 600V, Gate Trigger 1.3V BTA24-600BWRG
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.3mm |
| Length | 10.4mm |
| Model | BTA24-600BWRG |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 25A |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Surge Current Rating | 260A |
| Maximum Gate Trigger Current Igt | 50mA |
| Maximum Holding Current Ih | 75mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.55V |
| Repetitive Peak Off-State Current | 5μA |
| Peak Gate Power Dissipation | 1W |
Key Features
- Rated average on-state current of 25 A for robust load handling.
- 600 V repetitive peak reverse voltage suitable for industrial AC circuits.
- TO-220 package with through-hole mounting for easy PCB integration.
- Maximum gate trigger current of 50 mA ensuring precise triggering.
- High surge current rating of 260 A for transient handling.
- Wide operating temperature range from -40°C to 125°C for harsh environments.
- Low peak gate power dissipation of 1 W for efficient operation.
- 3-pin single configuration with peak on-state voltage of 1.55 V for low conduction losses.
Product Description
STMicroelectronics BTA24-600BWRG is a through hole mounted 3-pin TRIAC designed to control AC power in industrial, home appliance, and commercial electronic circuits. This semiconductor device supports a repetitive peak reverse voltage of 600 V and a rated average on-state current of 25 A, making it suitable for switching and controlling AC loads efficiently.
With its TO-220 package and through-hole mount type, the device is easy to integrate into printed circuit boards requiring reliable and robust TRIAC components. It features a gate trigger voltage of 1.3 V and a maximum gate trigger current of 50 mA, allowing precise control of its switching behavior.
The TRIAC also offers high surge current capability of 260 A, ensuring durability under transient load conditions. The operating temperature range of -40°C to 125°C enables usage in diverse environmental conditions, including industrial and HVAC control systems.
Rated average on-state current of 25 A. Maximum repetitive peak reverse voltage of 600 V. TO-220 package with through-hole mounting. Maximum gate trigger current 50 mA and voltage 1.3 V. Surge current rating of 260 A. Operating temperature range from -40°C to 125°C.
Compact 9.3 mm height and 10.4 mm length. Peak gate power dissipation of 1 W. Single configuration, 3-pin TRIAC with a peak on-state voltage of 1.55 V.
This device is ideal for industrial automation, motor control, light dimmers, and other power control applications requiring reliable TRIAC switching. Its robust specifications allow it to handle demanding electrical loads while maintaining stable operation.
Explore similar high-quality discrete semiconductors and TRIACs in EnvMart for your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current of this TRIAC is 25 A, allowing it to handle robust load requirements efficiently.
This model has a maximum repetitive peak reverse voltage of 600 V, making it suitable for industrial AC circuits.
The surge current rating of this TRIAC is 260 A, which ensures it can handle transient conditions effectively.
The maximum gate trigger voltage is 1.3 V and the maximum gate trigger current is 50 mA, allowing for precise control during operation.
This TRIAC has a height of 9.3 mm and a length of 10.4 mm, fitting well into compact designs.
The operating temperature range for this model is from -40°C to 125°C, suitable for various environmental conditions.
It utilizes a through-hole mounting type, which facilitates easy integration into printed circuit boards.
The peak on-state voltage for this TRIAC is 1.55 V, contributing to low conduction losses during operation.
This model features a 3-pin configuration, which is typical for TRIAC devices.
The package type is TO-220, which is commonly used for power semiconductors due to its thermal performance.
The maximum holding current for this model is 75 mA, which helps in maintaining stable operation during use.
This TRIAC is suitable for applications such as industrial automation, motor control, and light dimmers, where reliable switching is required.
