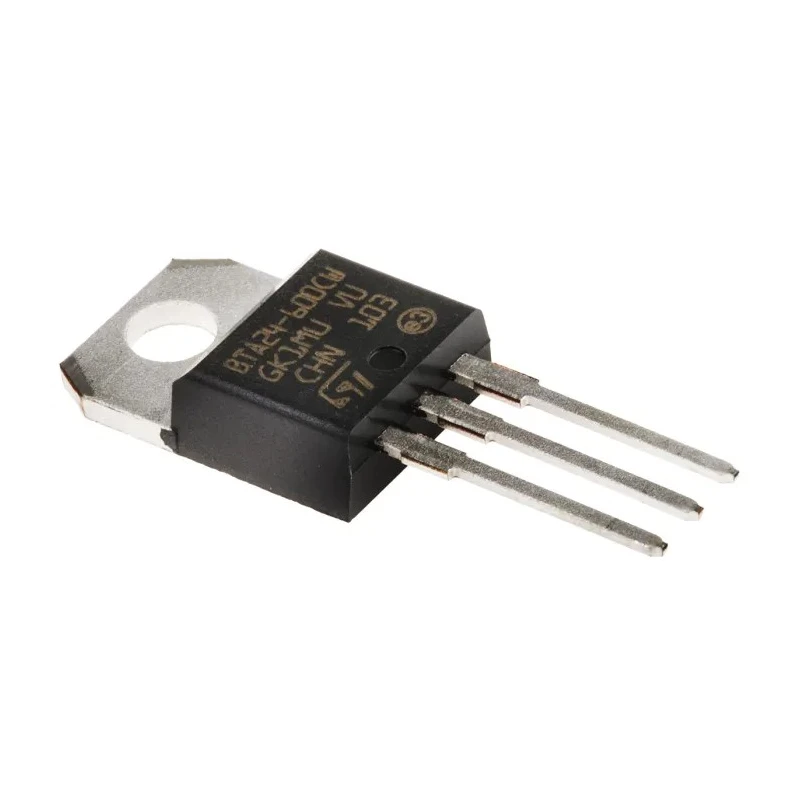

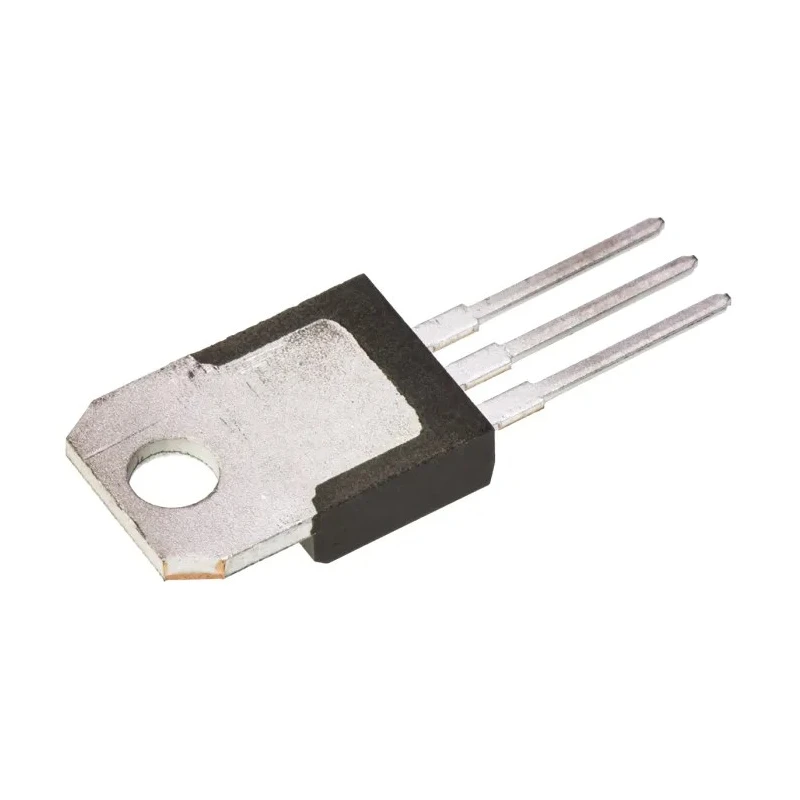

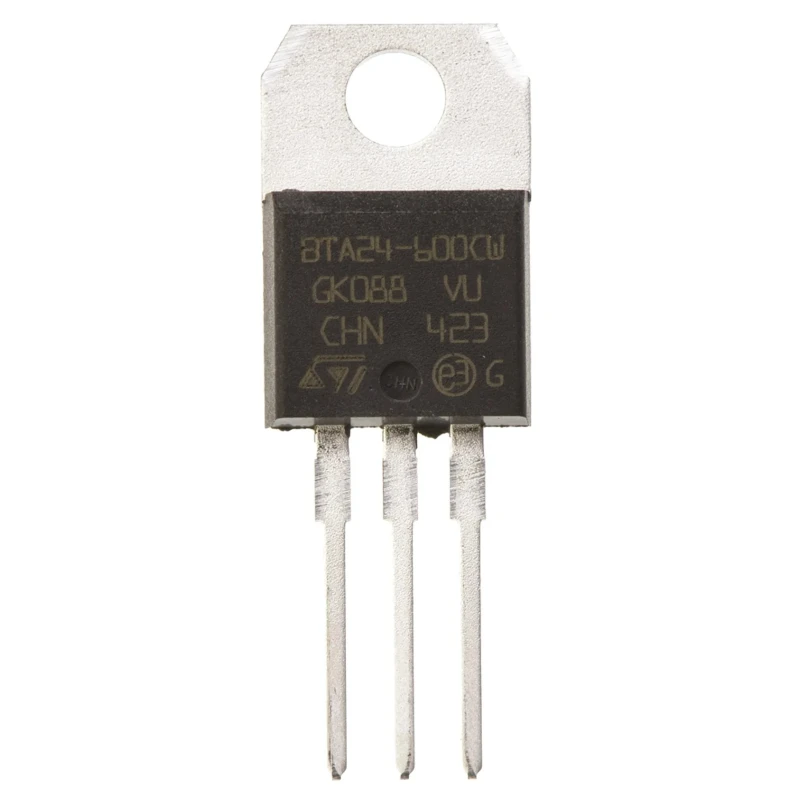

STMicroelectronics Through Hole 3-Pin TRIAC 600 V Gate Trigger 1.3 V BTA24-600CWRG
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.3mm |
| Length | 10.4mm |
| Model | BTA24-600CWRG |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 25A |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Surge Current Rating | 260A |
| Maximum Gate Trigger Current Igt | 35mA |
| Maximum Holding Current Ih | 50mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.55V |
| Repetitive Peak Off-State Current | 5μA |
| Peak Gate Power Dissipation | 1W |
Key Features
- Equipped with a TO-220 package for through-hole mounting.
- Capable of handling surge currents up to 260 A.
- Maximum gate trigger current of 35 mA ensures reliable activation.
- Operates in temperatures ranging from -40°C to 125°C.
- Peak on-state voltage of 1.55 V for efficient conduction.
- Maximum holding current rated at 50 mA to maintain stable operation.
- Repetitive peak reverse voltage reaches 600 V.
- Compact dimensions of 9.3 mm height and 10.4 mm length.
Product Description
STMicroelectronics BTA24-600CWRG is a high-performance through-hole 3-pin TRIAC designed for controlling AC power in industrial and electronic applications. Featuring a robust TO-220 package, this TRIAC supports a repetitive peak reverse voltage of 600 V and a rated average on-state current of 25 A, making it suitable for medium power switching tasks.
This TRIAC activates reliably with a low gate trigger voltage of 1.3 V and a maximum gate trigger current of 35 mA. It operates efficiently across a wide temperature range from -40°C up to 125°C, maintaining peak power dissipation of 1 W at the gate level. The device exhibits a surge current rating of 260 A, ensuring durability against transient spikes in the load current.
The TO-220 through-hole mounting package allows for easy integration into PCB designs requiring strong mechanical and thermal resilience. With a compact height of 9.3 mm and length of 10.4 mm, it fits well into various electronic circuits and industrial control systems.
Common applications include industrial AC load switching, motor controls, lighting control, heater controls, and other power regulation tasks requiring robust semiconductor switching devices. Its single configuration and 3-pin design simplify incorporation into legacy and new system designs.
The STMicroelectronics BTA24-600CWRG TRIAC is a trusted choice for electronics manufacturers and engineers seeking reliable, efficient, and long-lasting power control components for a broad range of commercial and industrial uses.
Equipped with a TO-220 package for through-hole mounting. Capable of handling surge currents up to 260 A. Maximum gate trigger current of 35 mA ensures reliable activation. Operates in temperatures ranging from -40°C to 125°C.
Peak on-state voltage of 1.55 V for efficient conduction. Maximum holding current rated at 50 mA to maintain stable operation. Repetitive peak reverse voltage reaches 600 V. Compact dimensions of 9.3 mm height and 10.4 mm length.
Single configuration TRIAC suitable for industrial and electronic switching applications. Explore the extensive range of industrial semiconductor components available at EnvMart for enhanced performance and reliability in your power control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 125°C.
It has a surge current rating of 260 A, allowing it to handle transient spikes in load current.
The peak on-state voltage is 1.55 V, which facilitates efficient conduction during operation.
The maximum gate trigger voltage required for activation is 1.3 V.
This model has a height of 9.3 mm and a length of 10.4 mm, making it compact for various applications.
The rated average on-state current is 25 A, suitable for medium power switching tasks.
It uses a through-hole mounting type, specifically designed with a TO-220 package.
This TRIAC has a 3-pin configuration, simplifying its integration into circuits.
The maximum holding current is rated at 50 mA, which helps maintain stable operation.
The minimum operating temperature is -40°C, allowing it to function in a wide range of environments.
It is suitable for industrial AC load switching, motor controls, lighting control, and heater controls.
The repetitive peak reverse voltage rating is 600 V, making it suitable for various power control applications.
