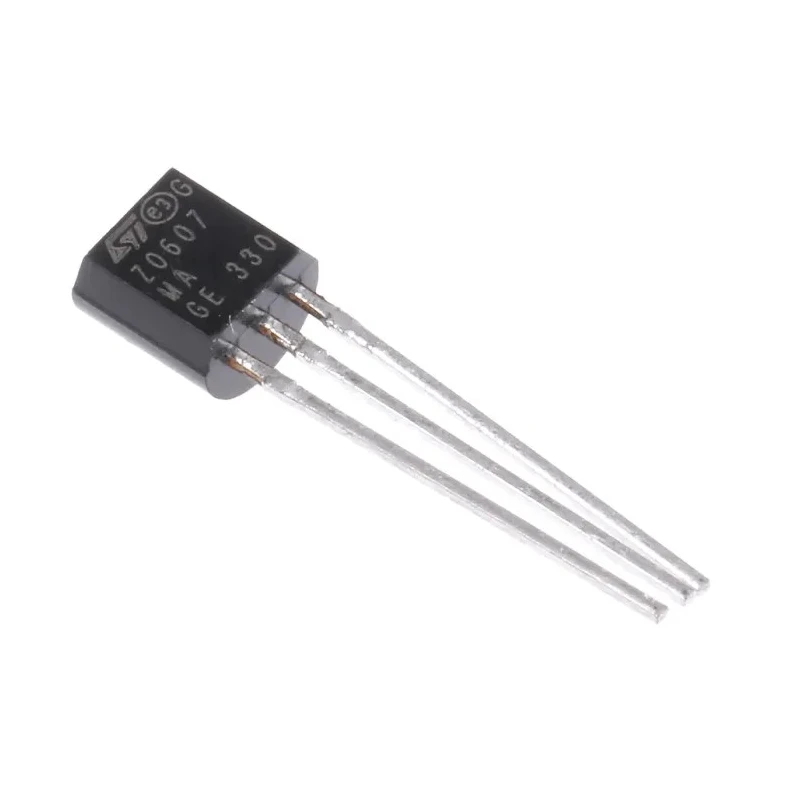

STMicroelectronics Through Hole 3-Pin TRIAC 600 V Gate Trigger 1.3 V Z00607MA 1BA2

STMicroelectronics Z00607MA 1BA2 is a through hole mounted TRIAC with a 3-pin design, catering to electronic control applications requiring switching capabilities up to 600 volts. This device operates with a rated average on-state current of 0.8 A Irms, making it suitable for moderate power semiconductor switching in industrial and consumer electronics.

The package follows the TO-92 standard, facilitating effortless through hole PCB assembly and reliable mechanical stability. Its peak gate power dissipation of 0.1 W and low maximum gate trigger voltage of 1.3 V enable efficient operation with minimal triggering energy. The maximum gate trigger current of 7 mA supports dependable and consistent device activation.

Designed to handle surge currents up to 9.5 A, the TRIAC can withstand short-duration current spikes without damage, increasing robustness in switching circuits. Its operating temperature range from -40°C up to 110°C suits demanding industrial environments.

Measuring 4.4 mm in height and 4.7 mm in length, this compact form factor optimizes circuit space without sacrificing performance. The device’s repetitive peak reverse voltage of 600 V allows usage in various AC power control applications, including light dimmers, motor speed controls, and temperature regulators.

This TRIAC features a single configuration with 3 pins and a peak on-state voltage of 1.5 V, supporting versatile electronic switch designs in both commercial and industrial sectors. Although it does not hold any special automotive standards or regulatory certifications, it maintains high technical reliability from the STMicroelectronics brand.

Rated average on-state current of 0.8 A supports moderate load devices. Through hole TO-92 package type ensures secure mounting. Maximum gate trigger current set at 7 mA for reliable switching. Surge current rating of 9.5 A safeguards against transient overloads.

Temperature tolerance from -40°C to 110°C enables varied application conditions. Compact dimensions support space-efficient circuit designs. Low gate power dissipation enhances device lifespan. Single configuration suitable for a wide range of AC load control applications.

High peak reverse voltage rating of 600 V for demanding environments.

Ideal for industrial automation, electronic switching circuits, HVAC controls, and other applications requiring efficient AC load management. Explore EnvMart’s extensive semiconductor and discrete component catalog for compatible products and technical solutions.
