STMicroelectronics Analogue Microphone Array Expansion STEVAL-STWINMAV1

Free Delivery in India | Lowest Global Shipping Charges

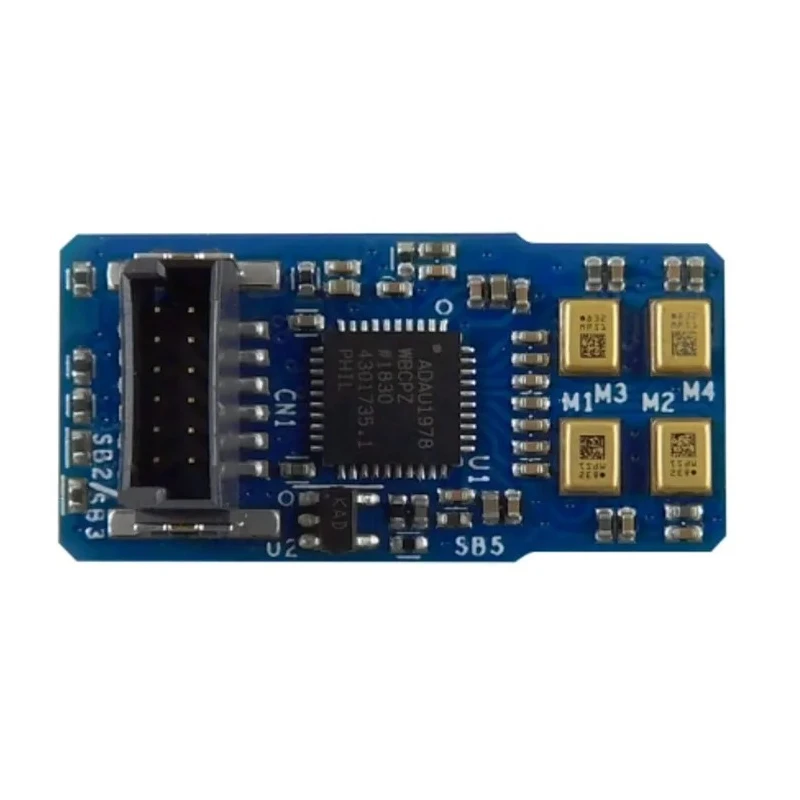

STMicroelectronics Analogue Microphone Array Expansion STEVAL-STWINMAV1

Name: STMicroelectronics Analogue Microphone Array Expansion STEVAL-STWINMAV1
Brand: STMicroelectronics
SKU: 429460
Price: 43.04 USD
Availability: InStock



Category Microphone Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Model	STEVAL-STWINMAV1
Kit Name	Analogue Microphone Array Expansion
BrandSTMicroelectronics	Kit NameAnalogue Microphone Array Expansion

Key Features

Four high-performance MP23ABS1 capacitive MEMS microphones enable precise audio capture.
Operates on a 3 V to 5.5 V power supply input suitable for battery-powered applications.
Includes a low quiescent current, low-noise LDK130 voltage regulator for efficient power management.
Features an on-board audio-grade quad ADC and Serial Audio Interface (SAI) digital output for advanced signal processing.
Designed for high-frequency vibration monitoring in ultrasound frequency ranges.
Connects via dedicated 12-pin connector to STWIN core system boards with supporting firmware and BSP drivers.
Compact 4 mm square-shaped differential microphone array form factor.

Product Description

STMicroelectronics STEVAL-STWINMAV1 analogue microphone array expansion is developed to enhance the audio sensing capabilities of the SensorTile Wireless Industrial Node (STWIN) kit, specifically the STEVAL-STWINKT1B and STEVAL-STWINKT1 models. This board is ideal for high-frequency vibration monitoring applications in industrial, laboratory, and manufacturing settings, particularly within ultrasound frequency ranges.

The expansion includes four low-power MP23ABS1 capacitive MEMS microphones that provide a high signal-to-noise ratio for precise audio detection. Powered by an efficient LDK130 low quiescent current and low-noise voltage regulator, it supports battery-powered operation from 3 V to 5.5 V supply inputs.

Integration is facilitated through a dedicated 12-pin connector to the STWIN core system board, running STSW-STWINKT01 firmware with dedicated BSP drivers and application examples to accelerate development. The board features a compact 4 mm square-shaped differential microphone array, an on-board audio-grade quad analog-to-digital converter (ADC), and a Serial Audio Interface (SAI) digital output.

This microphone array expansion finds applications in industrial condition monitoring, vibration analysis, and other high-frequency audio sensing use cases within laboratory, construction, HVAC, manufacturing, and commercial environments.

Four high-performance MP23ABS1 analog MEMS microphones provide precise sensing. Low quiescent current LDK130 voltage regulator enables efficient battery-powered operation. Compact 4 mm square differential Microphone array design.

On-board audio-grade quad ADC and Serial Audio Interface (SAI) digital output facilitate advanced data acquisition. Connected via dedicated 12-pin connector to STWIN core system boards with preloaded firmware. Supports high-frequency ultrasound vibration monitoring applications.

Ideal for industrial, laboratory, and manufacturing audio sensing solutions.

STMicroelectronics offers comprehensive development support through firmware, BSP drivers, and application examples to enable rapid prototyping and deployment of audio sensing solutions using the STEVAL-STWINMAV1 expansion.
