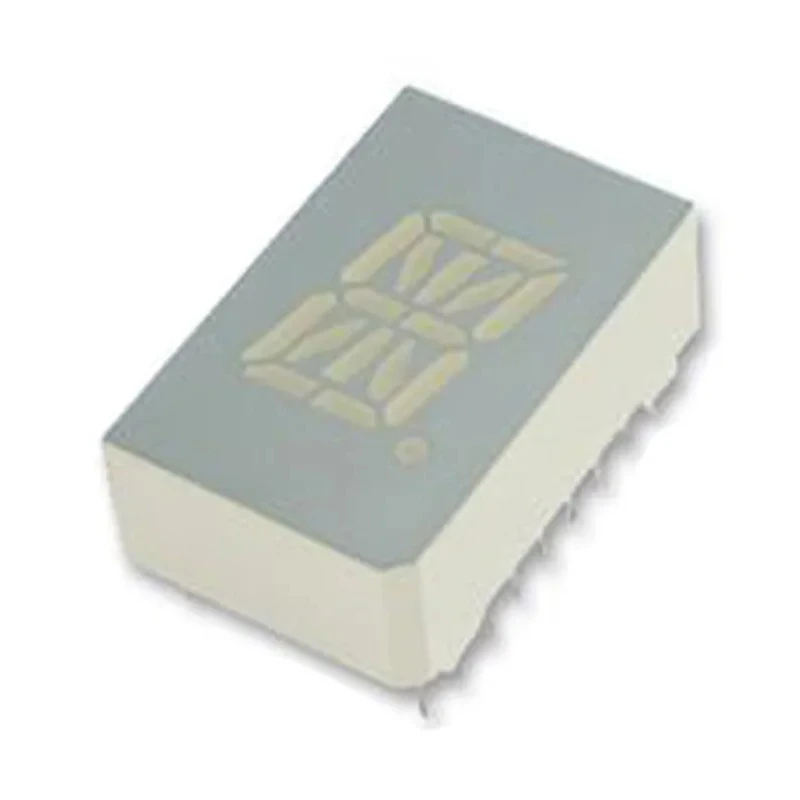

Kingbright 1 Digit 16 Segment Red Cathode LED Display 12.7mm Character Height PSC05-11SURKWA

Kingbright PSC05-11SURKWA is a high-quality, single-digit 16-segment LED display designed for industrial and electronic applications requiring clear alphanumeric characters. Featuring a dominant wavelength of 630nm, it emits red light with a luminous intensity of 11mcd, offering clear visibility even in low light conditions.

The 12.7mm (0.5 inch) character height and 8.2mm width allow for compact display integration while maintaining readability. Featuring a right side decimal orientation, this display is suited for precise numerical and character output.

This LED display is built with a grey face and white segments, providing excellent contrast for high visibility. With a common cathode configuration and through-hole mount, it is compatible with standard PCB assembly methods, ensuring mechanical robustness and easy replacement or installation.

Electrically, the device operates at a forward voltage of 2V with a forward current of 30mA and a power dissipation rated at 75mW, balancing power efficiency and brightness. It is designed to perform reliably in temperatures ranging from -40°C to 85°C, suitable for a wide range of industrial environments.

The display complies with RoHS environmental standards, aligning with global regulatory requirements. These features make it ideal for use in industrial automation, instrumentation panels, control systems, and educational electronics projects.

The display offers 1 character with 16 segments for alphanumeric versatility. It uses a common cathode connection type for simplicity in circuit design. Robust through-hole mounting facilitates secure and reliable installation.

The device features a grey face with white segment colors for clear output. Operating temperature range from -40°C to 85°C ensures durability in diverse environments. Forward voltage of 2V supports efficient power consumption.

Power dissipation of 75mW balances brightness and energy efficiency. Its dominant wavelength of 630nm produces bright red LED light. Right side decimal orientation enhances numeric data presentation. Complies with RoHS for environmental safety.

Kingbright PSC05-11SURKWA is widely applicable in electronic equipment requiring reliable, visible segment display components including industrial instruments, consumer electronics, HVAC systems, and laboratory devices. Its compact size and robust design meet demanding operational conditions.
