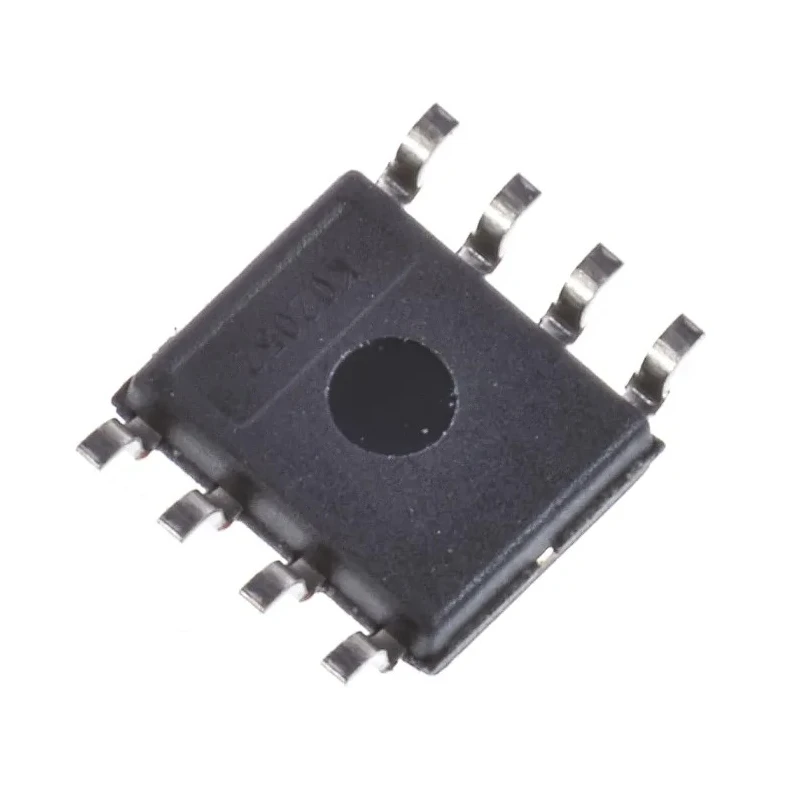

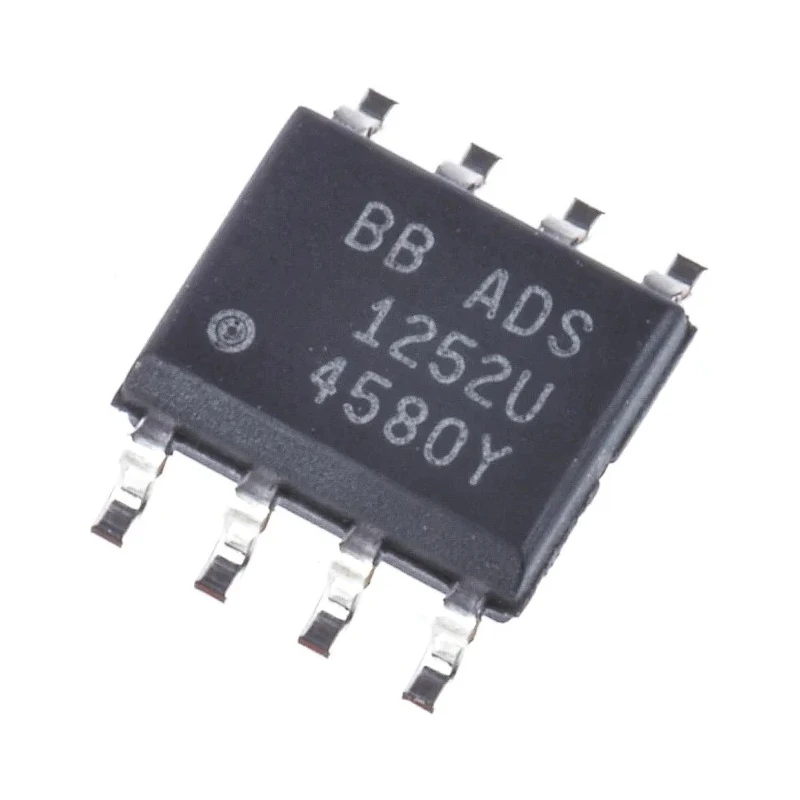

Texas Instruments Analogue to Digital Converter Delta Sigma 24 Bit 41ksps 8-Pin SOIC ADS1252U
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 24 bit |
| Brand | Texas Instruments |
| Height | 1.44mm |
| Length | 5.01mm |
| Model | ADS1252U |
| Mount Type | Surface |
| Sampling rate | 41ksps |
| Series | ADS1252 |
| Input Type | Voltage |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Architecture | Delta Sigma |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | 5V |
| Number of ADCs | 1 |
Key Features
- Delta Sigma architecture provides high precision transformation from analogue to digital.
- Single ADC channel supports accurate voltage input measurements.
- Compact 8-pin SOIC package enables easy surface mounting.
- Wide operating temperature range from -40°C to 85°C for industrial applications.
- Operates at supply voltage between 5V minimum and 5.25V maximum for stable performance.
- High-resolution 24-bit output ensures excellent accuracy in data conversion.
- SPI interface type ensures easy communication with microcontrollers and embedded systems.
- Low profile with length of 5.01mm and height of 1.44mm for space-efficient designs.
Product Description
Texas Instruments ADS1252U is a surface-mount analogue to digital converter (ADC) featuring a Delta Sigma architecture. This 24-bit resolution device enables precise voltage input conversion at sampling rates up to 41 ksps, making it ideal for high accuracy data acquisition systems.
Designed within a compact 8-pin SOIC package, the ADS1252U supports a SPI digital interface, facilitating easy integration into a variety of electronic and embedded applications. Its robust operating temperature range from -40°C to 85°C ensures reliability in industrial and harsh environment settings.
The device operates with a supply voltage range of 5V to 5.25V, providing consistent and stable operation in precision measurement systems. With dimensions of 5.01mm length and 1.44mm height, it fits in compact PCB designs.
Key applications include instrumentation, industrial process control, embedded measurement systems, and other environments requiring high-resolution digital representation of analogue signals.
Delta Sigma architecture for superior conversion precision. Single ADC channel supporting voltage inputs. Compact 8-pin SOIC surface mount package. Wide operating temperature suitable for industrial use. 5V supply voltage ensures stable performance.
High 24-bit resolution for accuracy. SPI digital interface for simple integration. Small physical footprint ideal for dense PCB layouts. Applicable in instrumentation and control systems. Explore our semiconductor and ADC product category for more high precision Electronic Components suitable for diverse industrial and embedded applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ADS1252U features a resolution of 24 bits, ensuring high precision in analogue to digital conversion.
It has a maximum sampling rate of 41 ksps, making it suitable for high accuracy data acquisition systems.
This model operates within a temperature range of -40°C to 85°C, suitable for industrial applications.
It supports voltage input measurements, allowing for accurate conversion of analogue signals.
The device operates at a supply voltage between 5V and 5.25V, ensuring stable performance.
It utilizes an SPI digital interface, facilitating easy integration with microcontrollers and embedded systems.
The dimensions of this model are 5.01mm in length and 1.44mm in height, making it suitable for compact PCB designs.
This unit features a single ADC channel for voltage input measurements.
It is packaged in an 8-pin SOIC format, which allows for surface mounting.
The device employs Delta Sigma architecture, which provides superior conversion precision.
The country of origin for the ADS1252U is India.
It is applicable in instrumentation, industrial process control, and embedded measurement systems requiring high-resolution digital representation of analogue signals.
