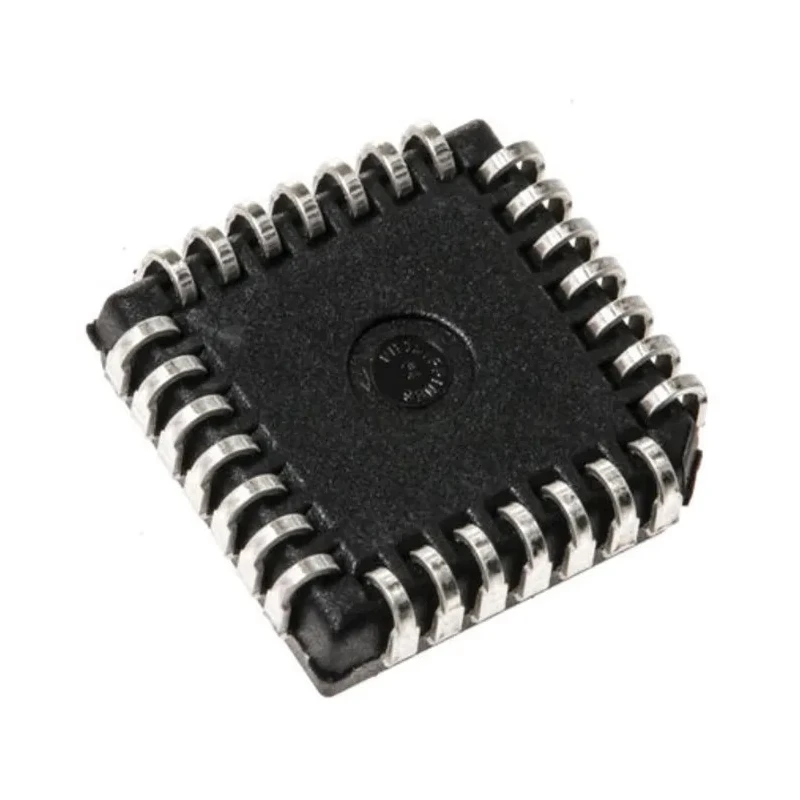

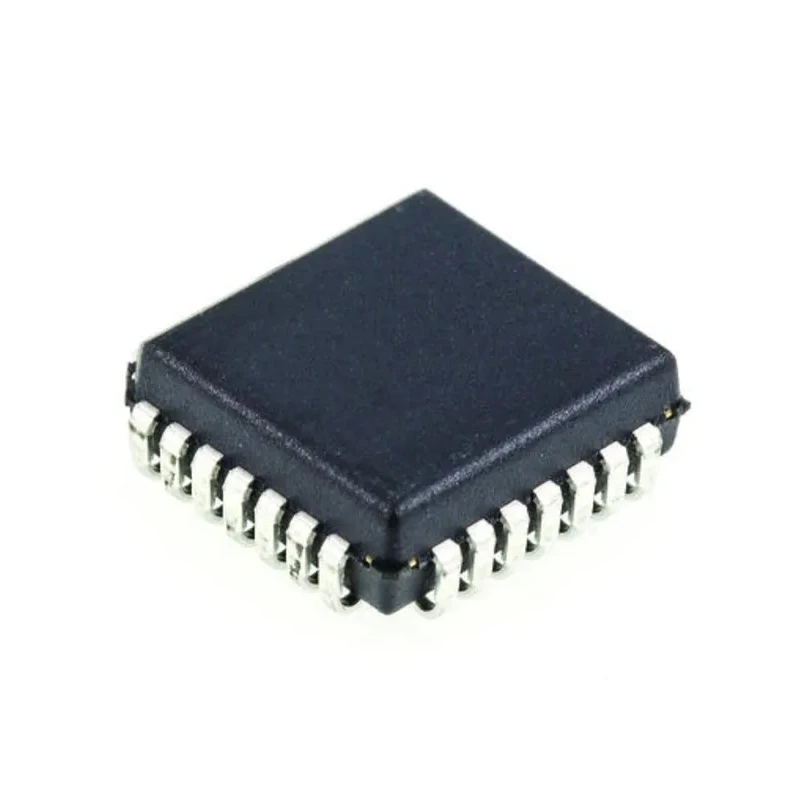

Renesas Electronics Programmable Timer Circuit 1 Internal Timer 28-Pin PLCC IS82C54-10Z
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 3.69mm |
| Length | 11.58mm |
| Model | IS82C54-10Z |
| Mount Type | Surface |
| Series | IS |
| Maximum Operating Temperature | 85°C |
| Package Type | PLCC |
| Sub Type | Programmable |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Number of Internal Timers | 1 |
Key Features
- This timer circuit supports a clock input frequency range from 8 MHz to 12 MHz.
- Includes three independent 16-bit counters for versatile timing applications.
- Supports six programmable counter modes to adjust timing functions.
- Equipped with a status read back command for efficient operation monitoring.
- Offers binary or BCD counting capabilities for compatibility with various systems.
- Fully TTL compatible and operates on a single 5 V power supply.
- Designed for low power consumption enhancing system efficiency.
- Operating temperature range spans from -40°C to 85°C ensuring reliable performance in hostile environments.
Product Description
Renesas Electronics IS82C54-10Z is a high-performance programmable timer circuit designed for precision timing and counting operations in electronic systems. This device includes one internal timer housed in a 28-pin PLCC surface mount package, making it suitable for compact PCB designs.
The timer supports clock input frequencies between 8 MHz and 12 MHz, which facilitates high-speed timing functions. It contains three independent 16-bit counters allowing multi-channel timing tasks and supports six programmable counter modes providing operational flexibility for different applications.
The circuit also features a status read back command which allows the system to efficiently monitor and manage the timer status, optimizing control processes. It offers both binary and BCD counting modes, providing compatibility with a wide range of digital systems.
Designed for TTL logic compatibility and requiring just a single 5 V power supply, the IS82C54-10Z is energy efficient and easy to integrate into existing systems. It features low power consumption, extending device and system longevity.
The programmable timer is rated for operation over a wide temperature range from -40°C to 85°C, allowing it to perform reliably in demanding industrial, automotive, and electronic manufacturing environments. The device complies with RoHS regulations, ensuring environmentally friendly manufacturing standards.
This programmable timer is ideal for use in industrial control equipment, automation systems, instrumentation, and electronic test devices. Its compact PLCC package supports space-saving circuit board layouts. Fully TTC compatible operation ensures seamless digital integration.
Low power requirements contribute to energy-efficient designs. Robust operation over wide temperature ranges guarantees dependable use in harsh conditions. Explore the full range of timer circuits and Electronic Components available to enhance your electronic designs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This timer circuit supports a clock input frequency range from 8 MHz to 12 MHz.
It operates on a single 5 V power supply with a maximum supply voltage of 5.5V and a minimum of 4.5V.
The operating temperature range spans from -40°C to 85°C, ensuring reliable performance in various environments.
This timer circuit is housed in a 28-pin PLCC surface mount package.
It supports both binary and BCD counting capabilities, providing compatibility with various systems.
Yes, it is fully TTL compatible, making it easy to integrate into existing systems.
The height of the IS82C54-10Z is 3.69 mm and the length is 11.58 mm.
It is ideal for use in industrial control equipment, automation systems, instrumentation, and electronic test devices.
The device complies with RoHS regulations, ensuring environmentally friendly manufacturing standards.
It includes a status read back command for efficient operation monitoring and is designed for low power consumption.
