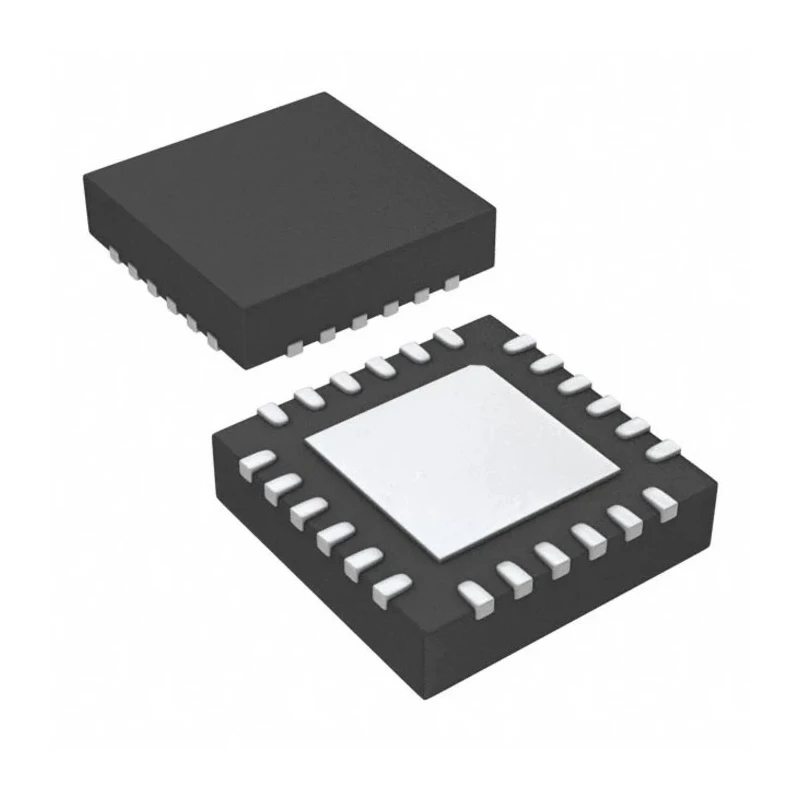

Renesas Electronics Clock Generator 24-Pin VFQFN 1MHz Input Frequency 1.71V - 3.46V 5P49V5901B000NLGI

Renesas Electronics model 5P49V5901B000NLGI is a programmable clock generator housed in a 24-pin VFQFN surface mount package. It provides a maximum input frequency of 1MHz and supports supply voltages from 1.71V up to 3.46V. The clock generator is designed for operation in harsh environments, functioning reliably across temperatures from -40°C to 85°C. This device targets high-performance consumer electronics, networking equipment, industrial controls, computing platforms, and data communication systems.

The programmable features include loop bandwidth, output to output skew, slew rate control, and crystal load capacitance, all configurable via an I2C interface or one-time programmable memory integrated on-chip. It also offers two redundant clock inputs with a glitchless manual switchover function, enhancing system reliability.

Its compact form factor with a 4mm length and 0.9mm height allows easy integration into space-sensitive PCB layouts while maintaining high performance. The 5P series represents Renesas’s fifth generation of programmable clock technology, reflecting advanced timing and frequency control capabilities.

Operates up to 1MHz input frequency. Redundant clock inputs with glitchless manual switchover. I2C programmable configuration and one-time programmable memory storage. Programmable slew rate and output skew control. Surface mount 24-pin VFQFN package for compact design.

Operating temperature range from -40°C to 85°C. Supply voltage range of 1.71V to 3.46V. Ideal for consumer, industrial, networking, and data communication applications.

This clock generator is a reliable choice for applications demanding precise timing control and flexible configuration options. Discover more products within the Electronics Components category on EnvMart.
