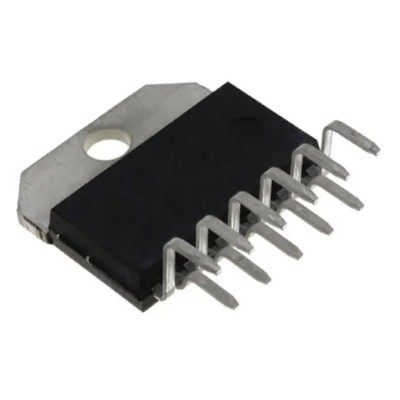

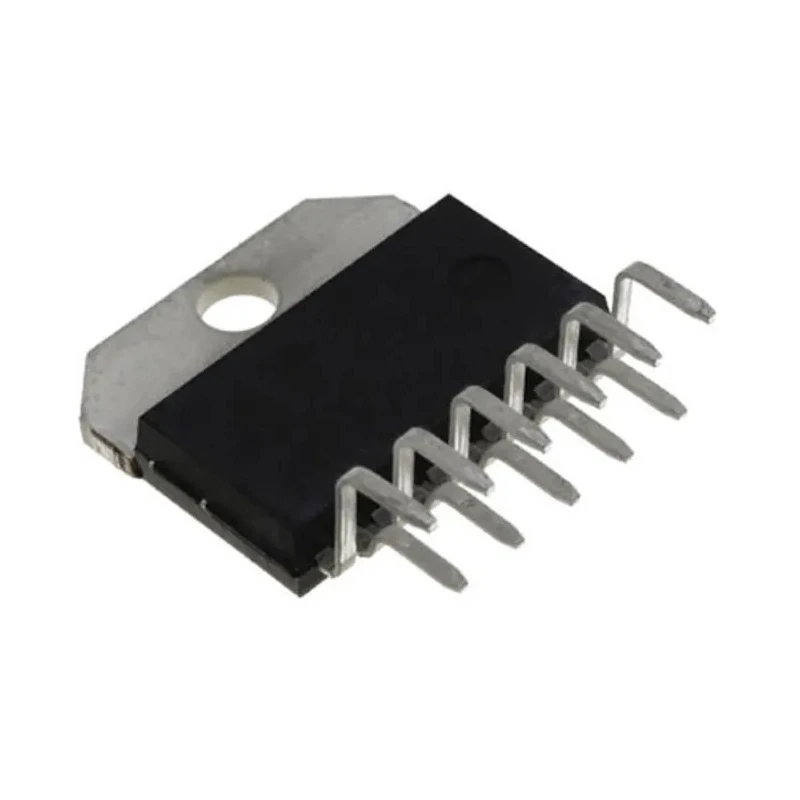

STMicroelectronics Bridge Amplifier Audio Amplifier IC, 11-Pin Multiwatt Package, 27W Output Power E-TDA7396
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 10.7mm |
| Length | 19.6mm |
| Model | E-TDA7396 |
| Width | 5mm |
| Output Power | 27W |
| Mount Type | Through Hole |
| Series | TDA7396 |
| Maximum Operating Temperature | 150°C |
| Package Type | Multiwatt |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 11 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 8V |
| Amplifier Type | Bridge Amplifier |
| Amplifier Class | Class A-B |
| GBP - Gain Bandwidth Product | 75kHz |
Key Features
- This bridge amplifier features a Class A-B amplifier type ensuring efficient audio output.
- It operates over a temperature range from -40°C to 150°C suitable for automotive environments.
- The amplifier supports a supply voltage range of 8V to 18V, accommodating typical automotive power rails.
- Complies with automotive standard AEC-Q100 for quality and reliability in vehicle applications.
- Robust design includes protection against short circuits, ESD, and over-temperature for durability.
- Compact dimensions with a length of 19.6mm, width of 5mm, and height of 10.7mm enable easy PCB integration.
- Single channel bridge amplifier configuration ideal for clean and powerful audio amplification.
- This product is supplied as a through-hole mount Multiwatt package for easy assembly.
Product Description
STMicroelectronics E-TDA7396 Bridge Amplifier is a reliable audio amplifier integrated circuit designed to deliver 27W output power in automotive and industrial audio applications. It features an 11-pin Multiwatt package configured as a single channel Class A-B amplifier, optimized for high efficiency and clean audio output.
The device supports a wide supply voltage range from 8V to 18V and operates reliably in harsh environments with a temperature tolerance from -40°C to 150°C, adhering to the automotive standard AEC-Q100. Its robust build includes integrated protections like short circuit, electrostatic discharge (ESD), and over-temperature safeguards, ensuring durability in demanding automotive and industrial environments.
Measuring 19.6mm in length, 5mm in width, and 10.7mm in height, the compact Multiwatt package facilitates straightforward integration into existing PCB designs using through-hole mounting methods. This amplifier is suitable for delivering powerful and distortion-free audio output in automotive sound systems and similar industrial uses.
Applications for the E-TDA7396 include automotive audio systems requiring robust and efficient amplification solutions, industrial audio systems, and any design needing a high-fidelity single channel bridge amplifier with thermal and electrical protections embedded.
This amplifier operates as a single channel Class A-B bridge amplifier. It delivers 27W output power for high-quality audio performance. Featuring an 11-pin Multiwatt package for secure mounting and heat dissipation. Wide operating voltage range of 8V to 18V supports varied power supply conditions.
Meets automotive reliability standard AEC-Q100 ensuring long-term operational stability. Robust design includes integrated protection against short circuit, ESD, and over-temperature. Compact dimensions enable flexible mounting in automotive and industrial PCBs.
Suitable for audio amplification in automotive, industrial, and commercial applications.
For professionals seeking dependable and high-performance Audio Amplifiers, STMicroelectronics' E-TDA7396 provides an industry-standard solution designed for challenging environments. Explore more audio amplifier ICs and semiconductor products at EnvMart.
