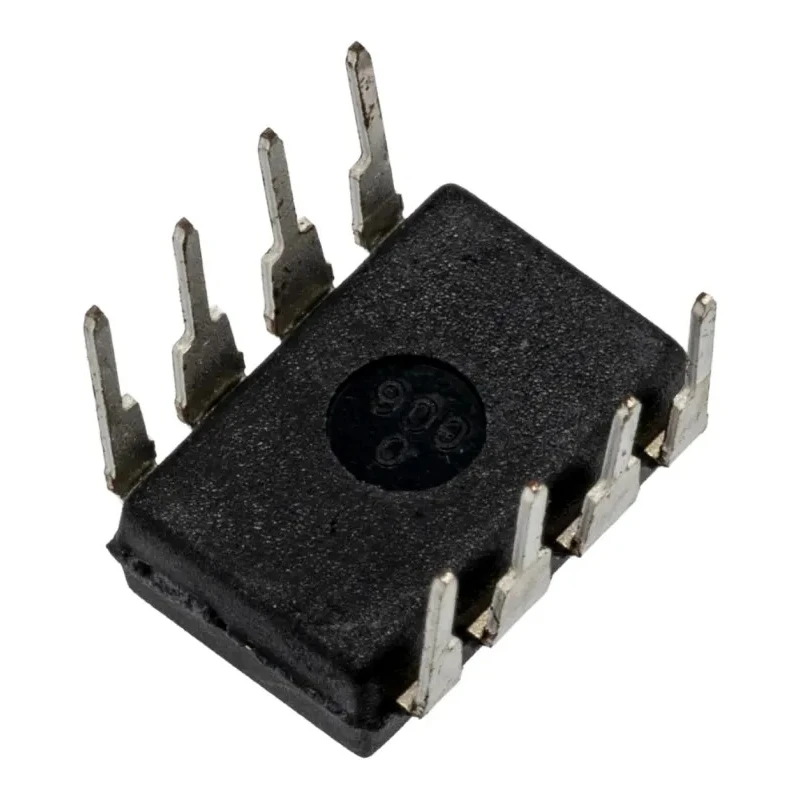

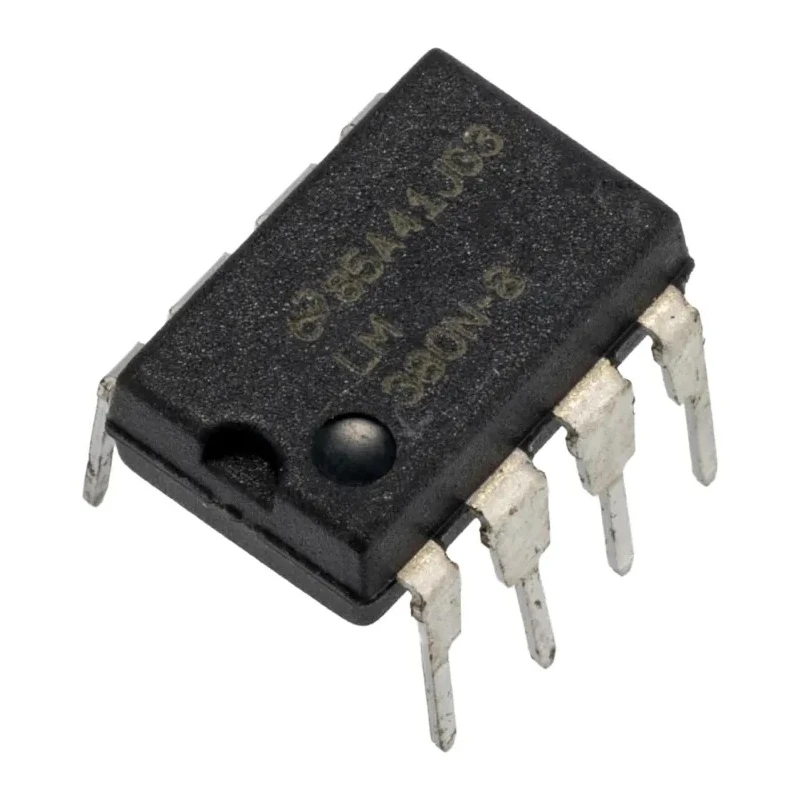

Texas Instruments Audio Power Amplifier, 8-Pin MDIP, 2.5W, Class A-B, LM380N-8/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 8.26mm |
| Length | 10.16mm |
| Model | LM380N-8/NOPB |
| Width | 6.6mm |
| Output Power | 2.5W |
| Mount Type | Through Hole |
| Series | LM380 |
| Maximum Operating Temperature | 70°C |
| Package Type | MDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 22V |
| Minimum Supply Voltage | 12V |
| Amplifier Type | Audio Power Amplifier |
| Amplifier Class | Class A-B |
| GBP - Gain Bandwidth Product | 100MHz |
Key Features
- The amplifier operates at voltages between 12V and 22V.
- It features Class A-B amplification for efficient and high-quality audio output.
- The device supports a gain bandwidth product of 100MHz for wide frequency response.
- It is designed for through-hole mounting and includes thermal and short-circuit protection.
- The package dimensions are compact with a height of 8.26mm, length of 10.16mm, and width of 6.6mm.
- Operating temperature ranges from 0°C to a maximum of 70°C ensuring reliable performance.
- Pin count totals eight pins for interfacing and integration.
- No automotive standard compliance is included in this model.
Product Description
Texas Instruments LM380N-8/NOPB Audio Power Amplifier is a single-channel, class A-B audio amplifier delivering 2.5W output power in a compact 8-pin MDIP through-hole package. It operates within a supply voltage range of 12 to 22 volts and offers a gain bandwidth product of 100MHz, making it suitable for various audio applications that require stable and high fidelity sound reproduction.
This amplifier is designed to provide reliable operation with integrated thermal overload, short-circuit protection, and safe operating area protection, enhancing device safety and longevity. Its compact package dimensions of approximately 8.26mm height, 10.16mm length, and 6.6mm width facilitate easy PCB integration and space-saving designs.
The operating temperature rating from 0°C to 70°C ensures consistent performance in typical electronic environments. The device features an 8-pin configuration, making it suitable for through-hole mounting in audio equipment, speaker systems, and general-purpose amplification circuits.
This audio power amplifier from Texas Instruments is widely used in consumer electronics, educational kits, and prototyping due to its simplicity and robustness. It supports single-channel amplification and Class A-B operation which balances performance with efficiency.
The amplifier operates at voltages between 12V and 22V. It features Class A-B amplification for efficient and high-quality audio output. The device supports a gain bandwidth product of 100MHz for wide frequency response.
It is designed for through-hole mounting and includes thermal and short-circuit protection. The package dimensions are compact with a height of 8.26mm, length of 10.16mm, and width of 6.6mm. Operating temperature ranges from 0°C to a maximum of 70°C ensuring reliable performance.
Pin count totals eight pins for interfacing and integration. No automotive standard compliance is included in this model.
Choose Texas Instruments audio amplifier ICs for reliable sound enhancement in audio and electronic circuit designs. Explore the Electronics & Electricals Amplifiers category on EnvMart for more audio amplifier solutions.
Explore more products in our Audio Amplifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This amplifier delivers an output power of 2.5W.
It operates within a supply voltage range of 12V to 22V.
The gain bandwidth product is 100MHz, allowing for a wide frequency response.
This model supports single-channel amplification.
The package dimensions are approximately 8.26mm in height, 10.16mm in length, and 6.6mm in width.
It is designed for through-hole mounting.
The operating temperature ranges from 0°C to a maximum of 70°C.
Yes, it includes thermal overload and short-circuit protection.
This amplifier operates as a Class A-B amplifier.
The amplifier has a total of eight pins for interfacing and integration.
No, this model does not include automotive standard compliance.
It is suitable for various audio applications, including consumer electronics and educational kits.
